Water Pump
Water pump displacement
at 6,000 engine rpm
172 L/min (182 US qt/min)

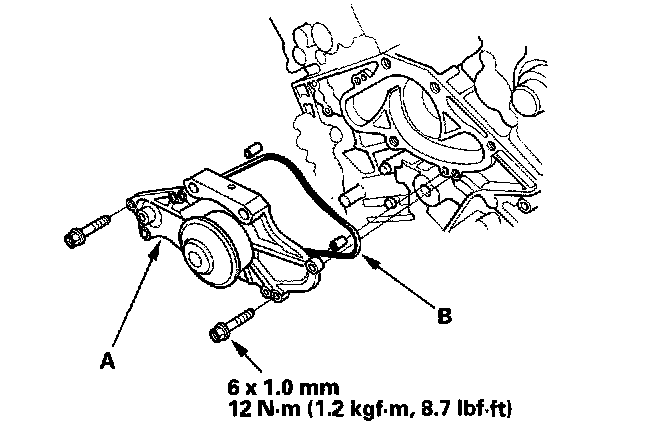

Water Pump Bolt Torque:
Water Pump Torque
