Power Window Master Switch Input Test

  1. Before testing the power windows, troubleshoot the multiplex integrated control system using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  2. Remove the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the power window master switch 23P connector (A) from the power window master switch (B).

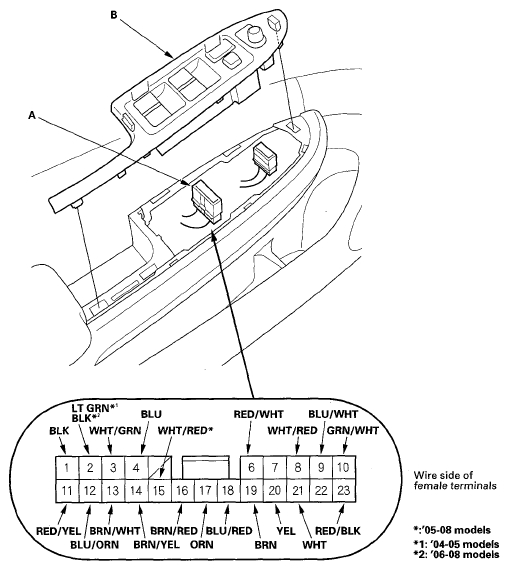

    Fig 1: Identifying Power Window Master Switch 23P Connector Terminals
    G05492912Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Reconnect the 23P connector to the switch, and make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6.
      TEST CONDITION REFERENCE CHART

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      3 WHT/GRN Under all conditions Connect terminal No. 3 to ground. Measure the voltage at under-dash fuse/relay box No. 26 (20 A) fuse: There should be battery voltage.
      • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
      • Faulty power window relay
      • Faulty under-dash fuse/relay box
      • An open in the wire
      10 GRN/WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
      • Blown No. 23 (P/W) (50 A) fuse in the under-hood fuse/relay box
      • Blown No. 27 (20 A) fuse in the under-dash fuse/relay box
      • Faulty under-dash fuse/relay box
      • An open in the wire
      20 YEL Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Blown No. 21 (7.5 A) fuse in the under-dash fuse/relay box
      • Faulty under-dash fuse/relay box
      • An open in the wire
      15(1) WHT/RED Ignition Switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Blown No. 7 (10 A) fuse in the under-dash fuse/relay box
      • Faulty under-dash fuse/relay box
      • An open in the wire
      1 BLK Under all conditions Measure the voltage to ground: There should be less than 0.5 V.
      • Poor ground (G601)
      • An open in the wire
      6 RED/WHT Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Faulty power window master switch
      • Short to ground in the wire
      2 LT GRN(2) BLK(3) Under all conditions Measure the voltage to ground: There should be less than 0.5 V. Faulty power window master switch
      4 BLU Ignition switch ON (II), and the driver's window switch AUTO DOWN Measure the voltage between the No. 4 and No. 2 terminals: There should be 0 V-about 5 V- 0 V-about 5 V repeatedly (a digital voltmeter reads about 2.5 V while the window moves).
      • Blown No. 21 (7.5 A) fuse in the under-dash fuse/relay box
      • Blown No. 27 (20 A) fuse in the under-dash fuse/relay box
      • Faulty power window master switch
      • Short to ground in the wire
      • Faulty driver's window motor
      17 ORN Ignition switch ON (II), and the driver's window switch AUTO DOWN Measure the voltage between the No. 17 and No. 2 terminals: There should be 0 V-about 5 V- 0 V-about 5 V repeatedly (a digital voltmeter reads about 2.5 V while the window moves).
      21 WHT Driver's door key cylinder switch in UNLOCK Measure the voltage to ground: There should be less than 1 V.
      • Faulty driver's door key cylinder switch
      • Poor ground (G501)
      • An open in the wire
      Driver's door key cylinder switch in neutral Measure the voltage to ground: There should be about 5 V.
      • Short to ground
      • Faulty driver's door key cylinder switch
      Driver's door key cylinder switch in LOCK Measure the voltage to ground: There should be about 5 V.
      8 WHT/RED Driver's door key cylinder switch in LOCK Measure the voltage to ground: There should be less than 1 V.
      • Faulty driver's door key cylinder switch
      • Poor ground (G501)
      • An open in the wire
      Driver's door key cylinder switch in neutral Measure the voltage to ground: There should be about 5 V.
      • Short to ground
      • Faulty driver's door key cylinder switch
      Driver's door key cylinder switch in UNLOCK Measure the voltage to ground: There should be about 5 V.
      (1) '05-08 models
      (2) '04-05 models
      (3) '06-08 models
  6. Disconnect the 23P connector from the power window master switch, and make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the power window master switch must be faulty, replace it.
      TEST CONDITION REFERENCE CHART

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      11 RED/YEL Connect the No. 10 and No. 11 terminals with a jumper wire, and No. 23 terminal to body ground. Check the driver's power window motor operation: The window should go down.
      • Blown No. 27 (20 A) fuse in the under-dash fuse/relay box
      • Faulty driver's power window motor
      • An open in the wire
      23 RED/BLK Connect the No. 10 and No. 23 terminals with a jumper wire, and No. 11 terminal to body ground. Check for driver's power window motor operation: The window should go up.
      9 BLU/WHT Connect the No. 10 and No. 9 terminals with a jumper wire. Check the front passenger's power window motor operation: The window should go down.
      • Poor ground (G503)
      • Blown No. 26 (20 A) fuse in the under-dash fuse/relay box
      • Faulty front passenger's power window switch
      • Faulty front passenger's power window motor
      • An open in the wire
      18 BLU/RED Connect the No. 10 and No. 18 terminals with a jumper wire. Check the front passenger's power window motor operation: The window should go up.
      13 BRN/WHT Connect the No. 10 and No. 13 terminals with a jumper wire. Check the left rear power window motor operation: The window should go up.
      • Poor ground (G601)
      • Blown No. 24 (20 A) fuse in the under-dash fuse/relay box
      • Faulty left rear power window switch
      • Faulty left rear power window motor
      • An open in the wire
      19 BRN Connect the No. 10 and No. 19 terminals with a jumper wire. Check the left rear power window motor operation: The window should go down.
      12 BUL/ORN Connect the No. 10 and No. 12 terminals with a jumper wire. Check the right rear power window motor operation: The window should go up.
      • Poor ground (G602)
      • Blown No. 25 (20 A) fuse in the under-dash fuse/relay box
      • Faulty right rear power window switch
      • Faulty right rear power window motor
      • An open in the wire
      14 BRN/YEL Connect the No. 10 and No. 14 terminals with a jumper wire. Check the right rear power window motor operation: The window should go down.
