Starter Overhaul: Disassembly/Reassembly

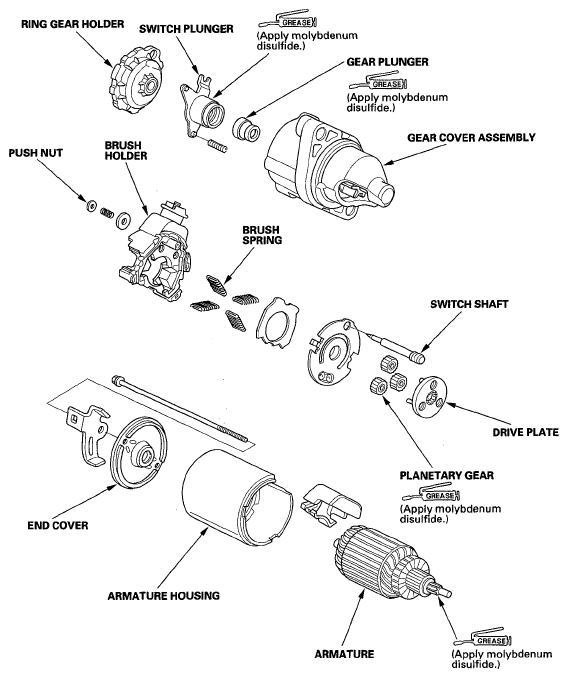

Fig 1: Disassembly/Reassembly Of Starter Overhaul
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
