Throttle Actuator Control Module Replacement

  1. Remove the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Push the tab (A) and disconnect the throttle actuator control module 16P connector (B).

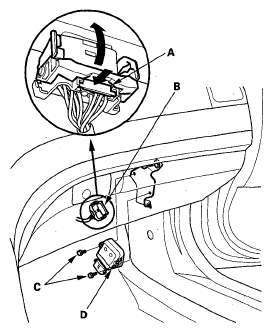

    Fig 1: Identifying Throttle Actuator Control Module 16P Connector
    G05490711Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (C), and the throttle actuator control module (D).
  4. Install the parts in the reverse order of removal.
