Fuel Tank Replacement: Installation

Install the tank straps (A), and tighten the bolts (B).

Fig 1: Tank Straps Bolts W/Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

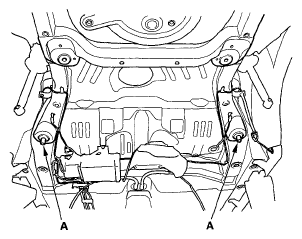

Place a jack or support under the rear suspension subframe. Install the rear suspension subframe, aligning the pins (A) with the holes in the subframe.

Fig 2: Identifying Rear Suspension Subframe Pins
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
After installation, do a wheel alignment (see WHEEL ALIGNMENT ).
