CMP Sensor B Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the EVAP canister purge valve (see EVAP CANISTER REPLACEMENT ).
  3. Disconnect the CMP sensor B 3P connector (A).

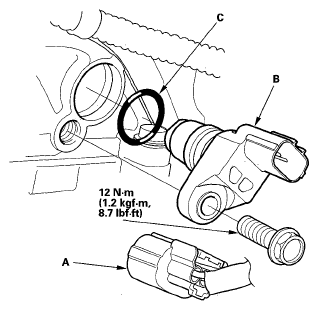

    Fig 1: CMP Sensor B 3P Connector And CMP Sensor B w/Torque Spec.
    G05490634Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove CMP sensor B(B).
  5. Install the parts in the reverse order of removal with a new O-ring (C).
