Injector Replacement
- Relieve fuel pressure (see
FUEL PRESSURE RELIEVING
).
- Remove the engine cover; '04-05 models (see step 3 of REMOVAL ('04-05 MODELS)
), '06-08 models (see step 3 of REMOVAL ('06-08 MODELS)
).

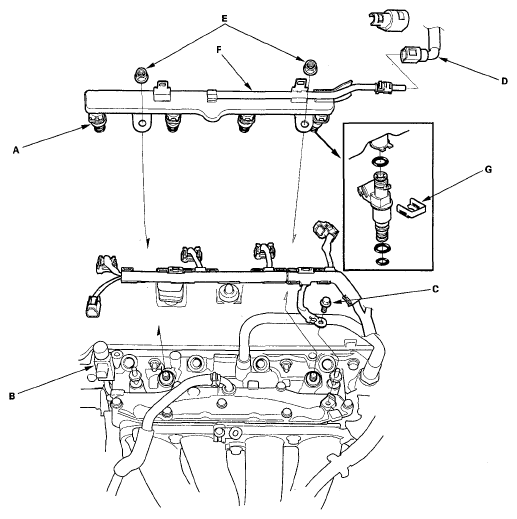

- Disconnect the connectors from the injectors (A) and the engine mount control solenoid valve (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the ground cable bolt (G101) (C).
- Disconnect the quick-connect fitting (D).
- Remove the fuel rail mounting nuts (E) from the fuel rail (F).
- Remove the fuel rail and the injectors from the injector base.
- Remove the injector clips (G) from the injectors.
- Remove the injectors from the fuel rail.

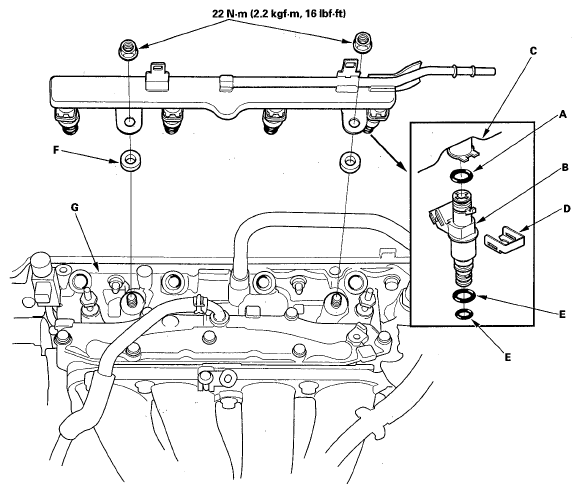

- Coat the new O-rings (A) with clean engine oil, and insert the injectors (B) into the fuel rail (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the injector clips (D).
- Coat the injector O-rings (E) with clean engine oil.
- Install the fuel rail insulator (F), then install the fuel rail and injectors in the injector base (G).
- Install the fuel rail mounting nuts (H).
- Connect the connectors on the injectors and the engine mount control solenoid valve, then reinstall the ground cable bolt.
- Connect the quick-connect fitting.
- Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs for about 2 seconds, the fuel rail will be pressurized. Repeat this two or three times, then check for fuel leakage.
- Install the engine cover.
