Navigation Module: Service and Repair

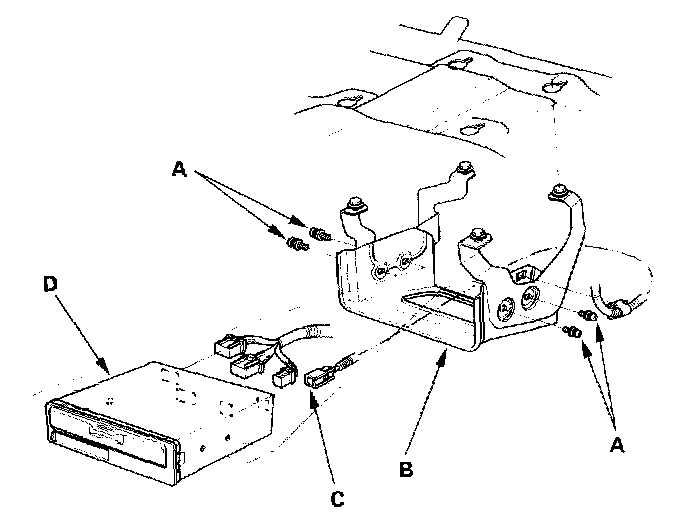

Navigation Unit Removal/Installation




1. Remove the four screws (A) from the bracket (B) located the trunk room.
2. Disconnect the navigation unit connectors (C)
3. Remove the navigation unit (D).
4. Install in the reverse order of removal.
