Fuse Block

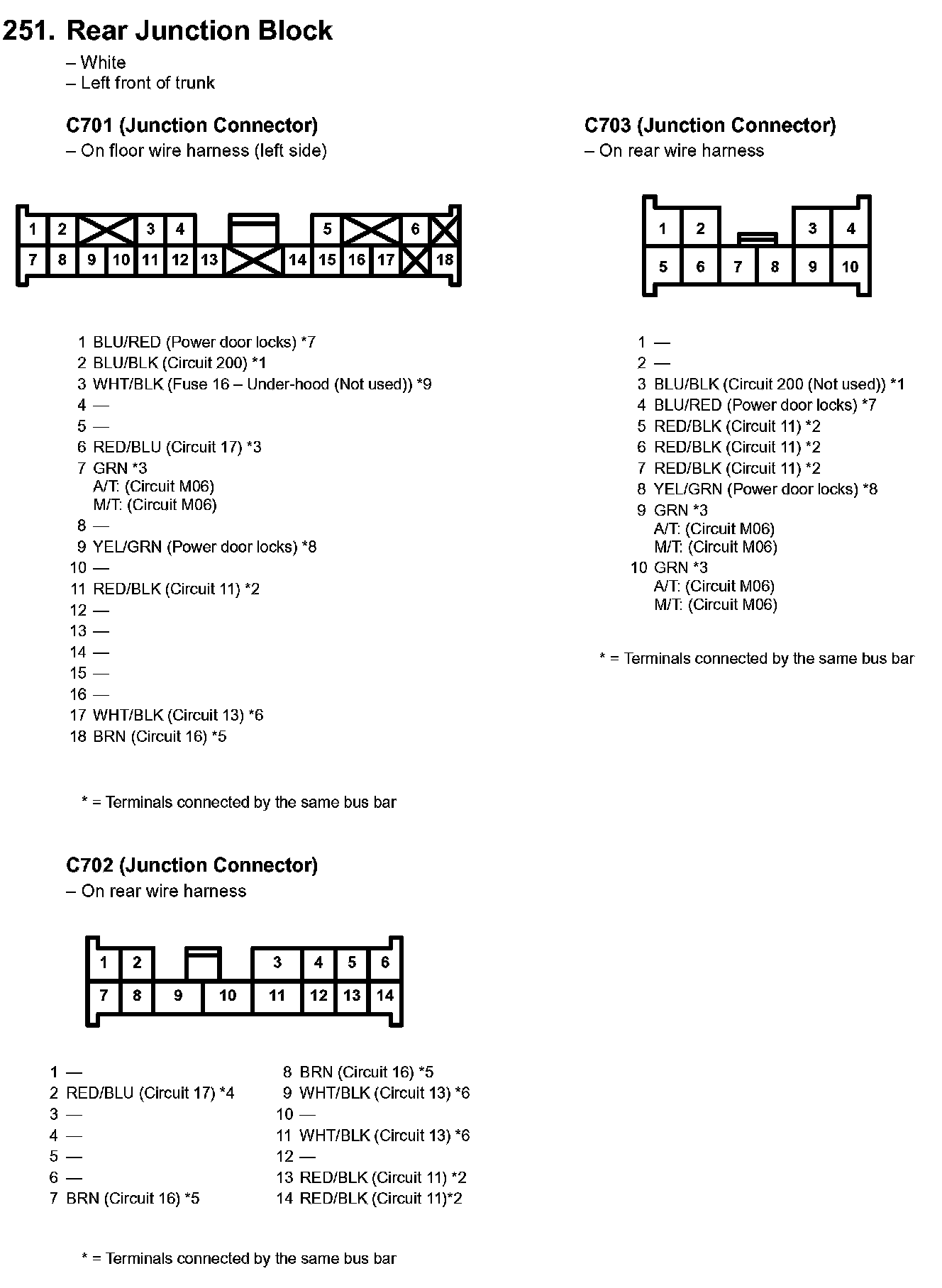

251. Rear Junction Block:

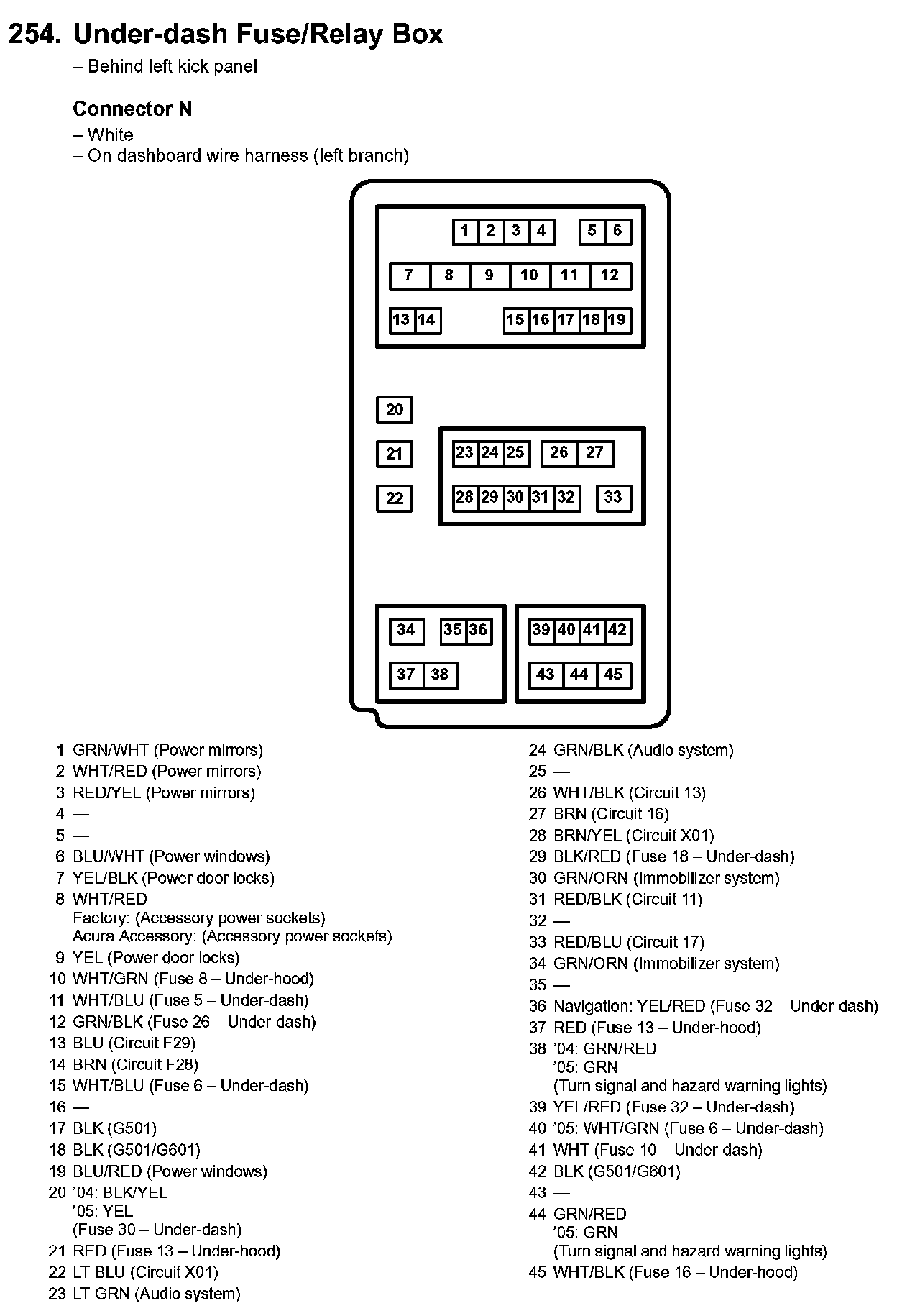

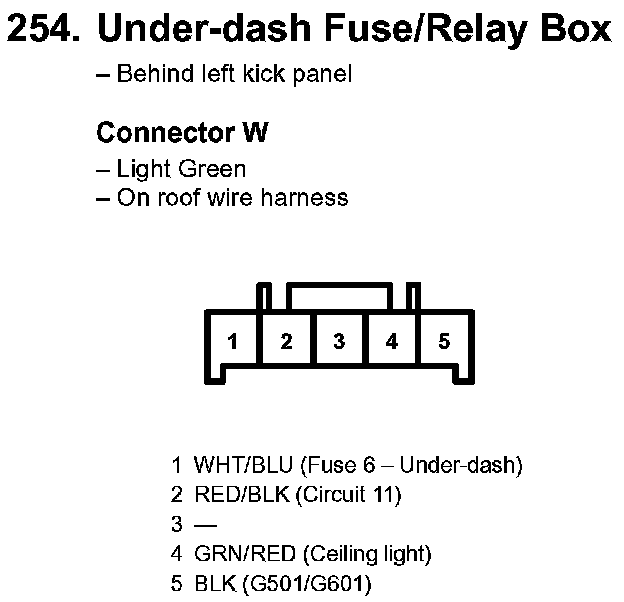

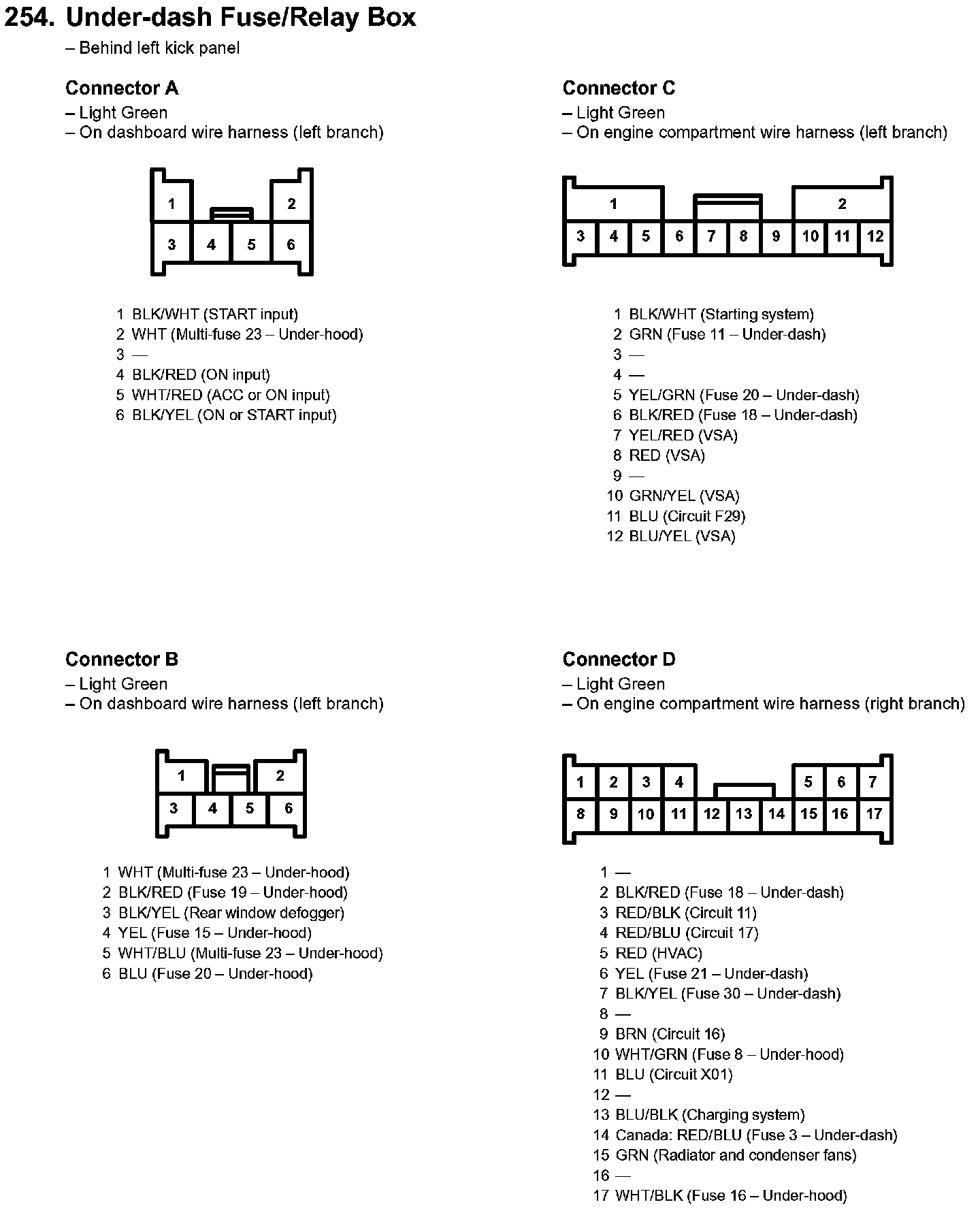

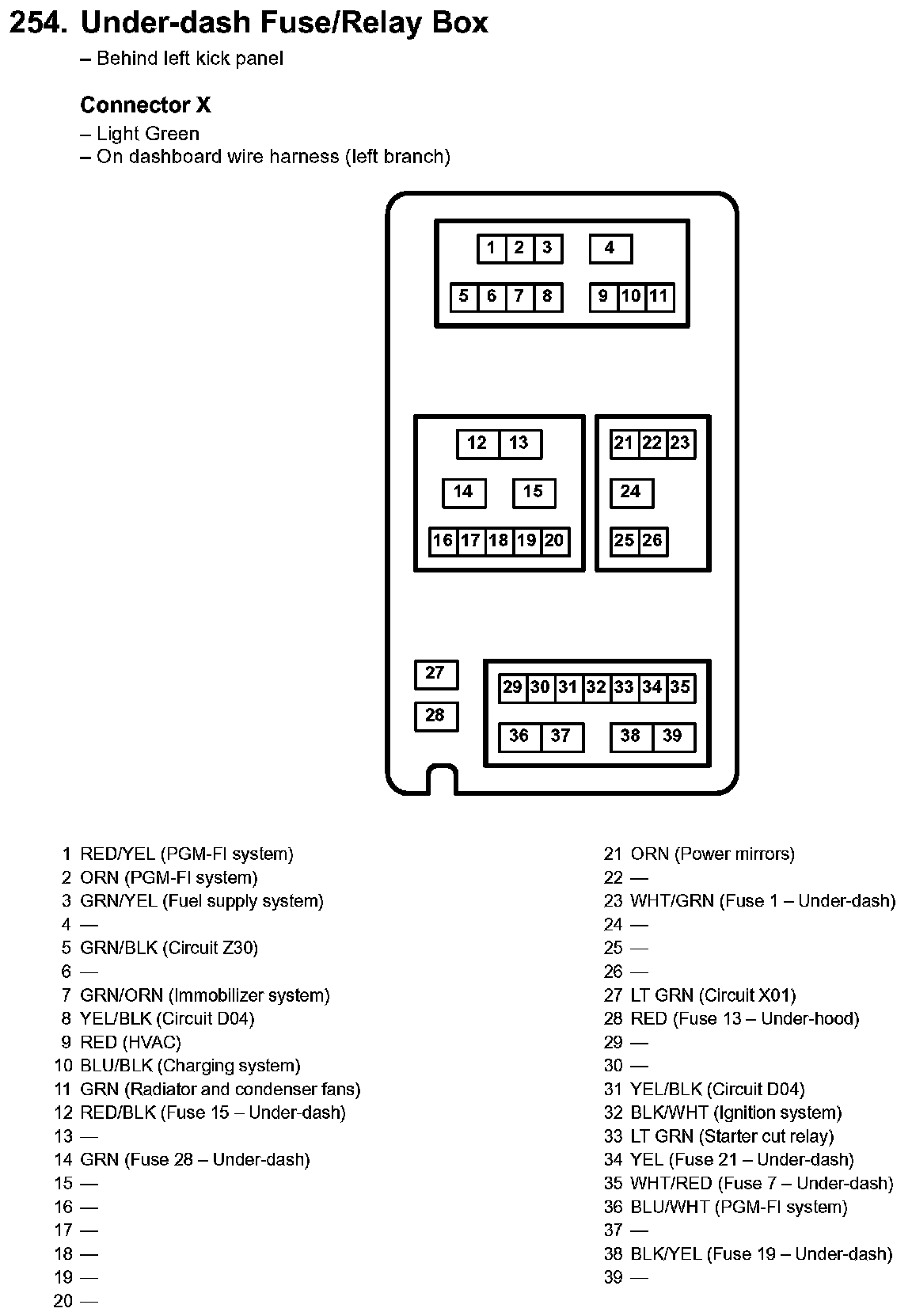

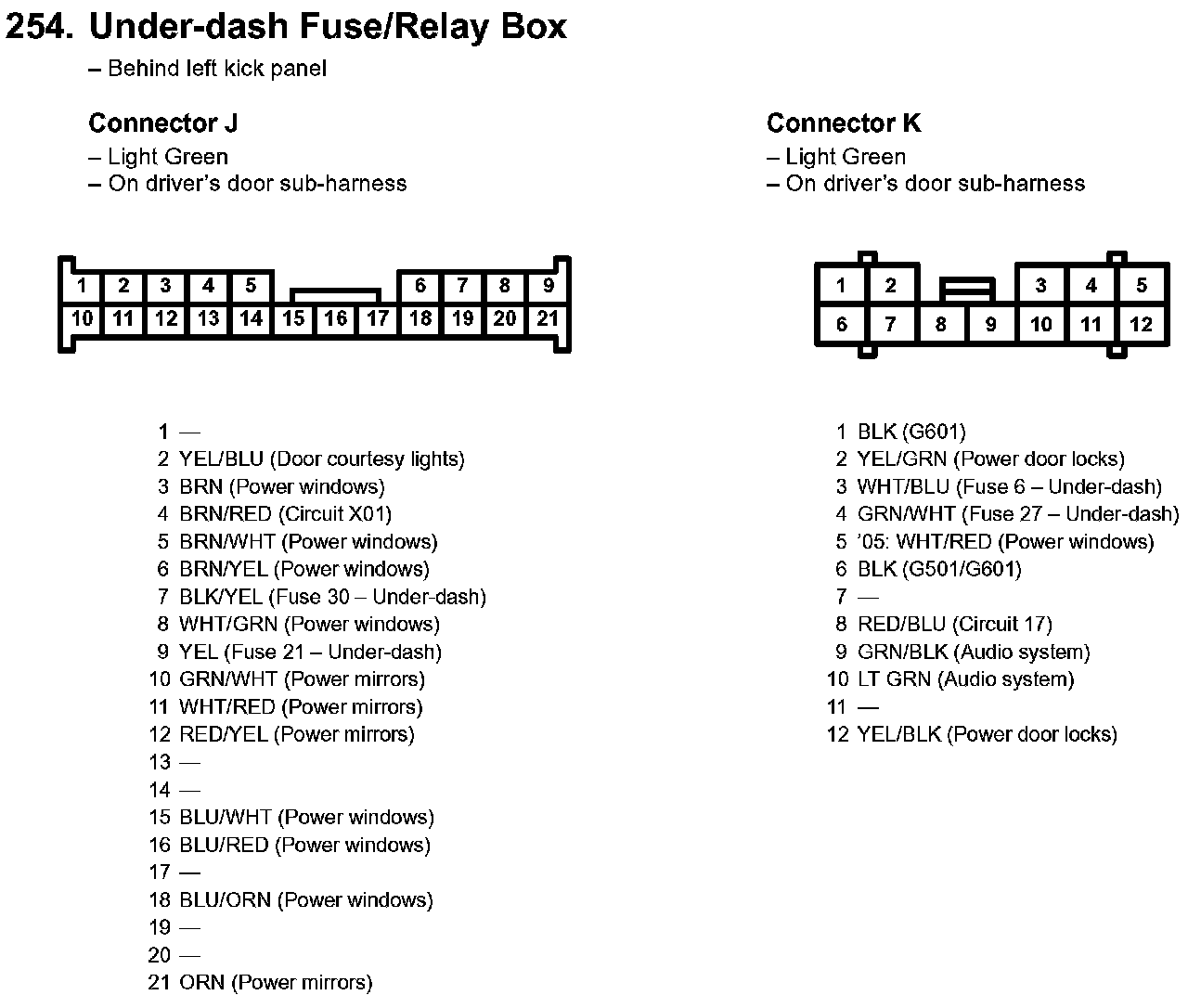

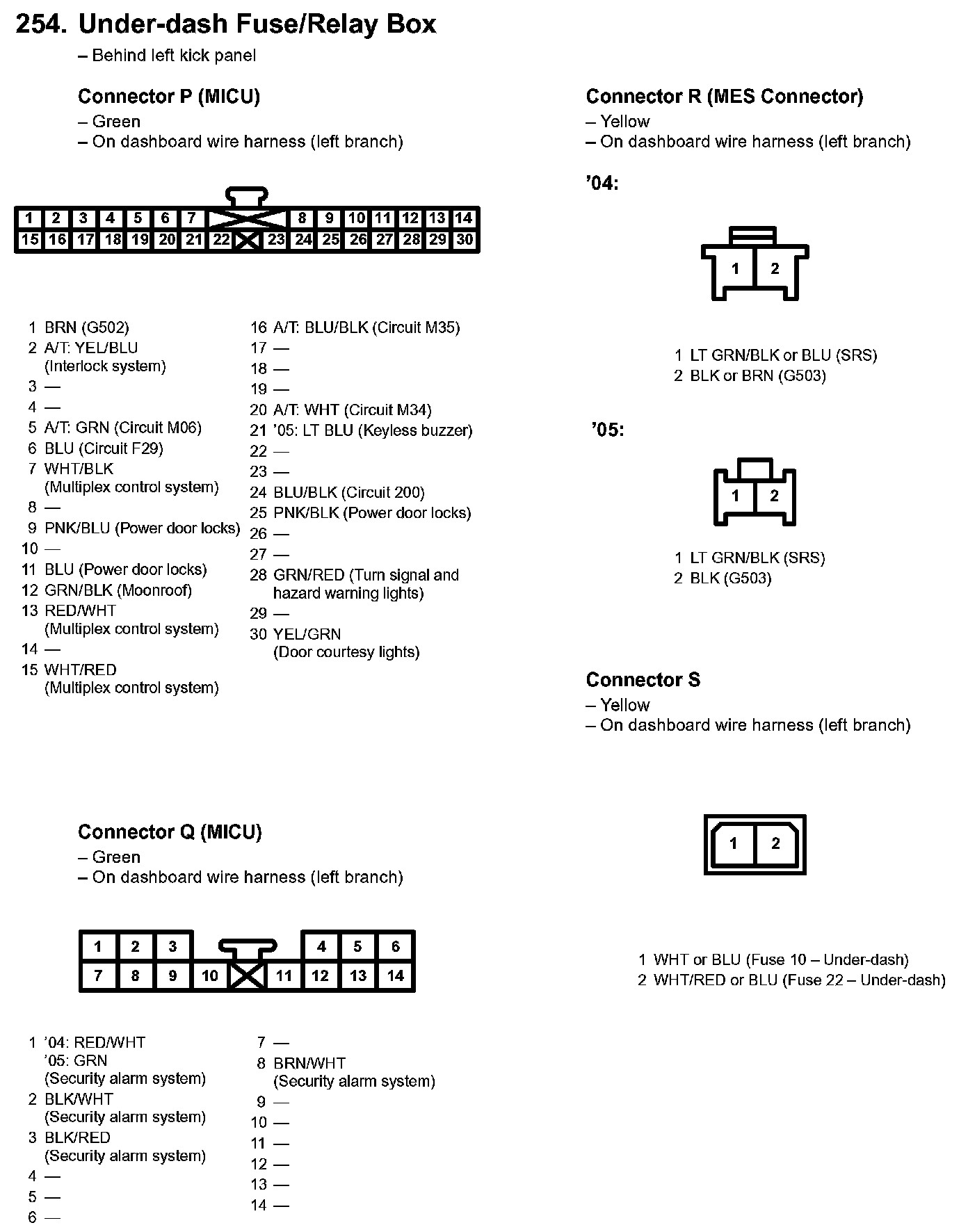

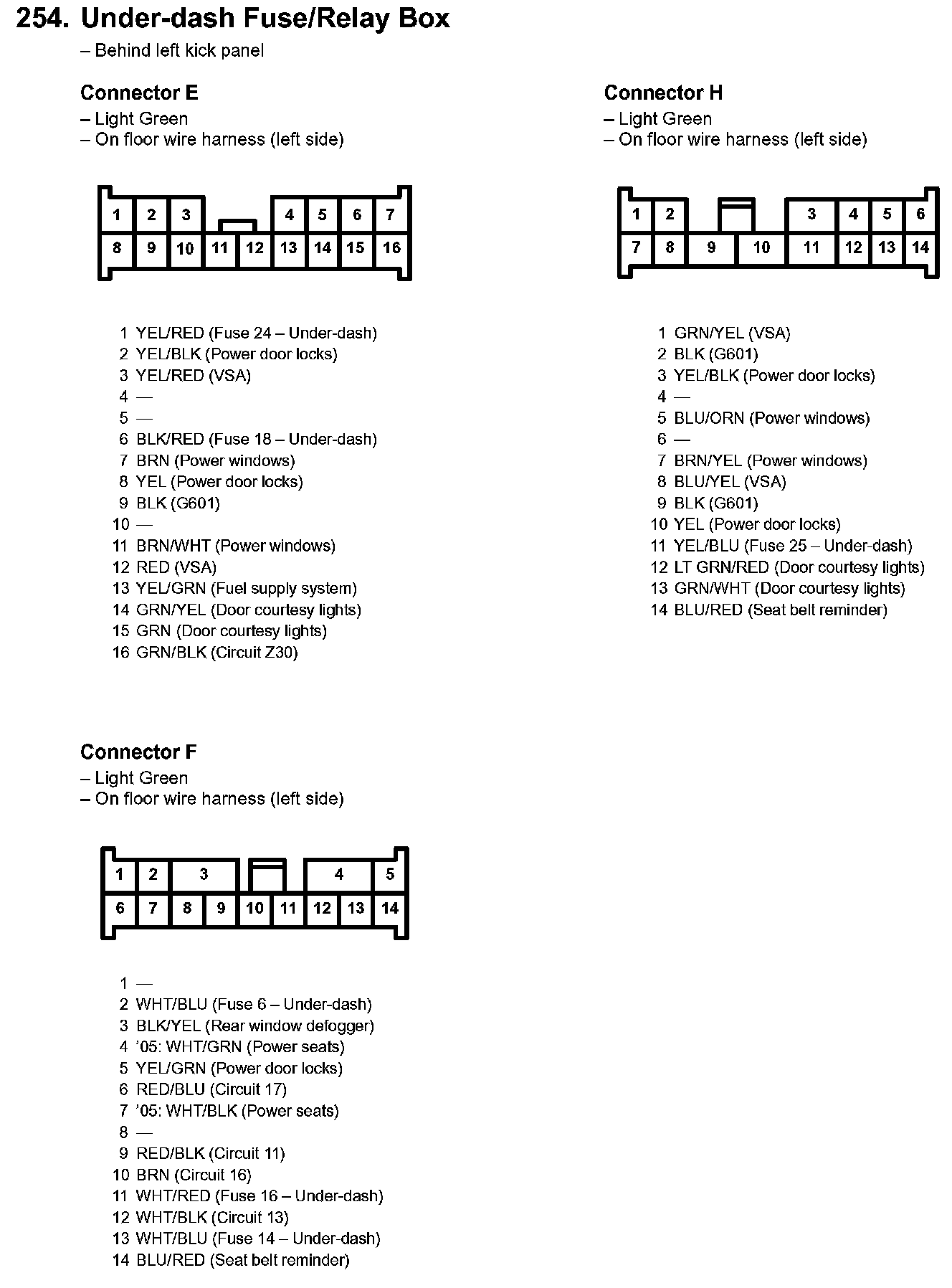

254. Under-Dash Fuse/Relay Box Part 1:

254. Under-dash Fuse/Relay Box Part 2:

254. Under-dash Fuse/Relay Box Part 3:

254. Under-dash Fuse/Relay Box Part 4:

254. Under-dash Fuse/Relay Box Part 5:

254. Under-dash Fuse/Relay Box Part 6:

254. Under-dash Fuse/Relay Box Part 7:

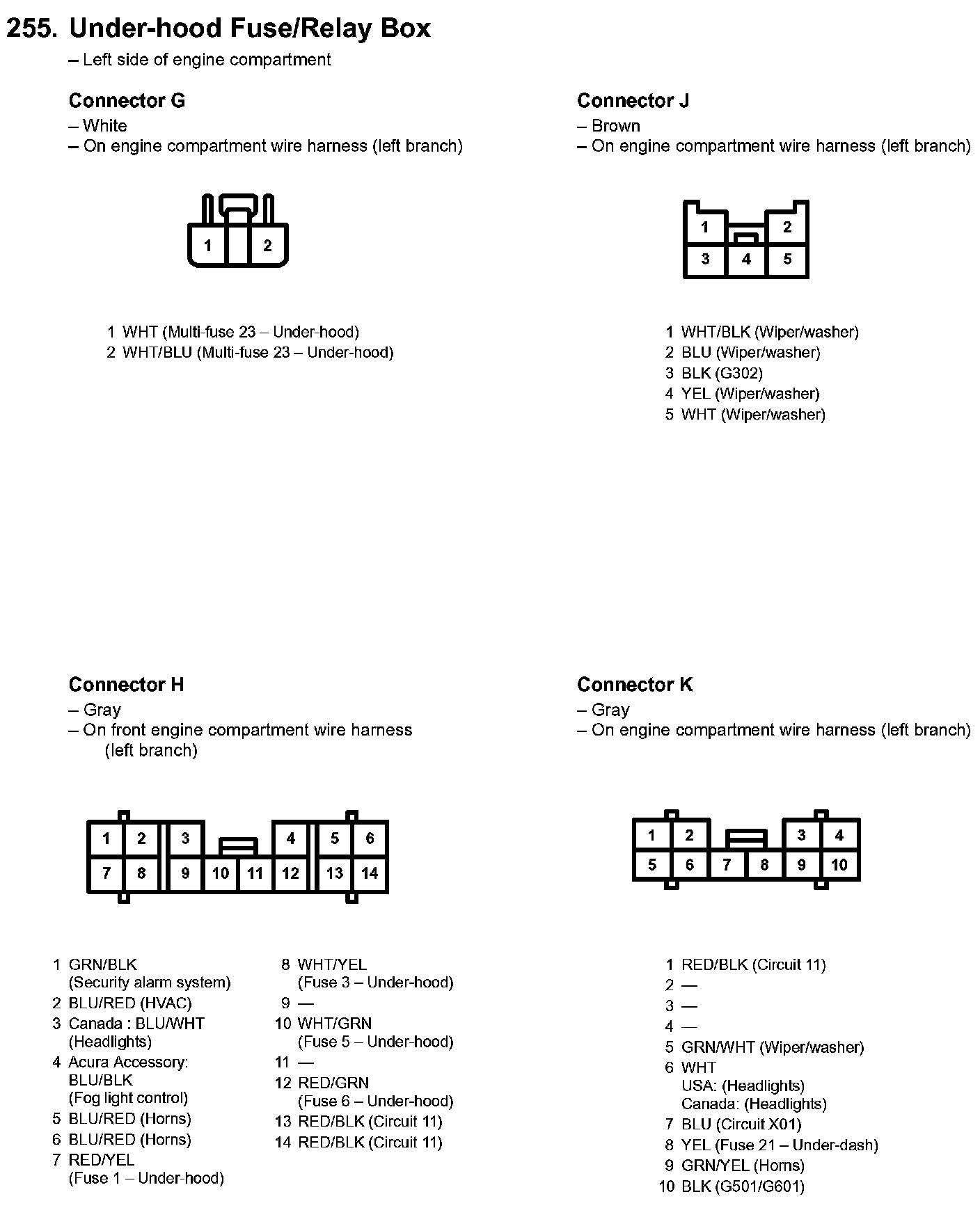

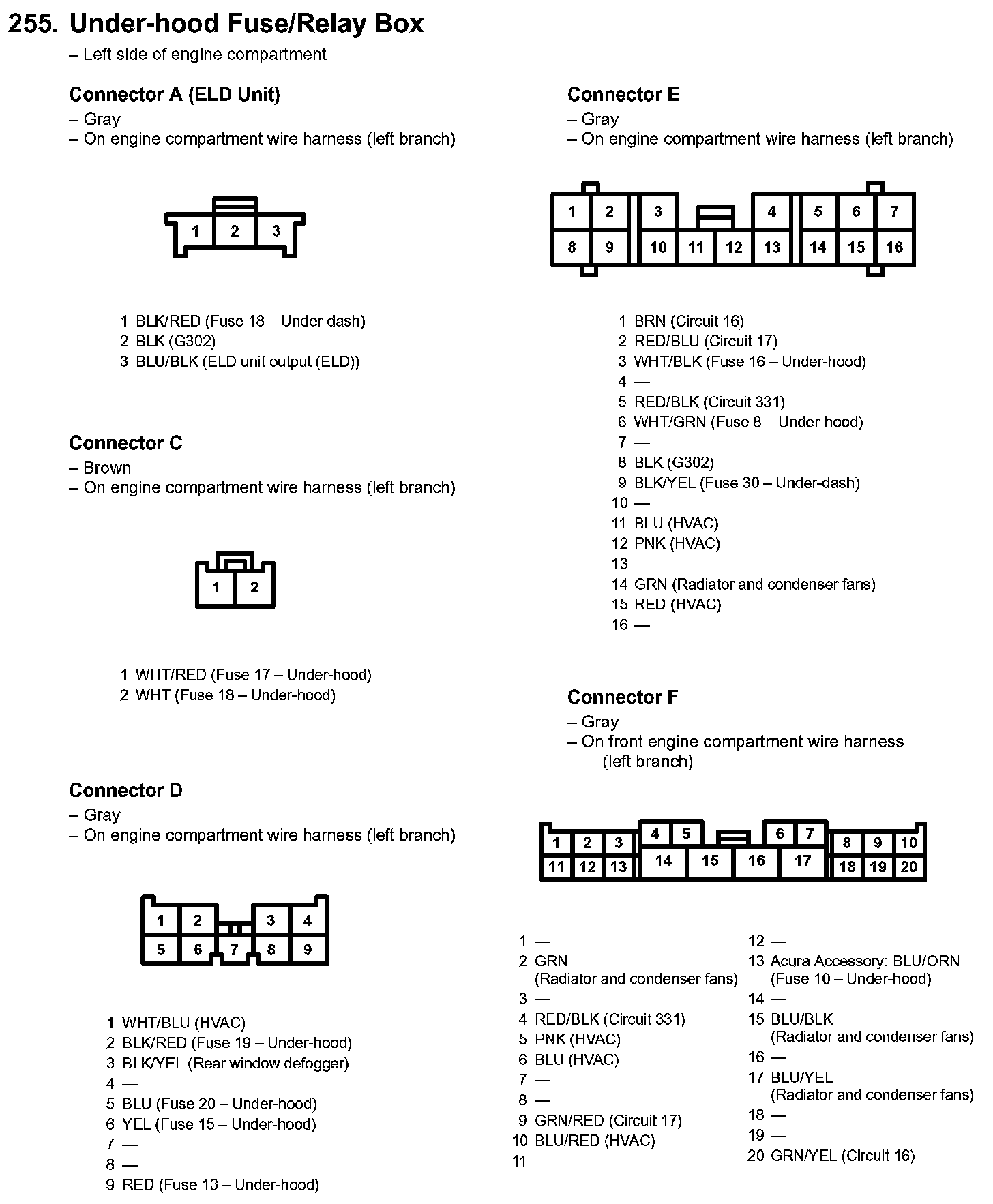

255. Under-hood Fuse/Relay Box Part 1:

255. Under-hood Fuse/Relay Box Part 2:
