Impact Sensor

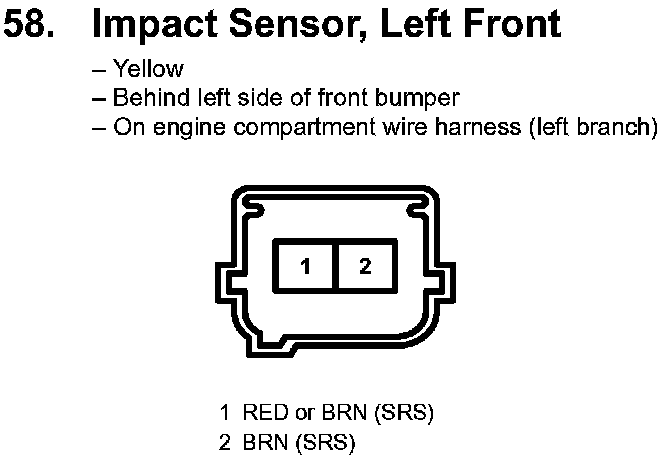

58. Impact Sensor, Left Front:

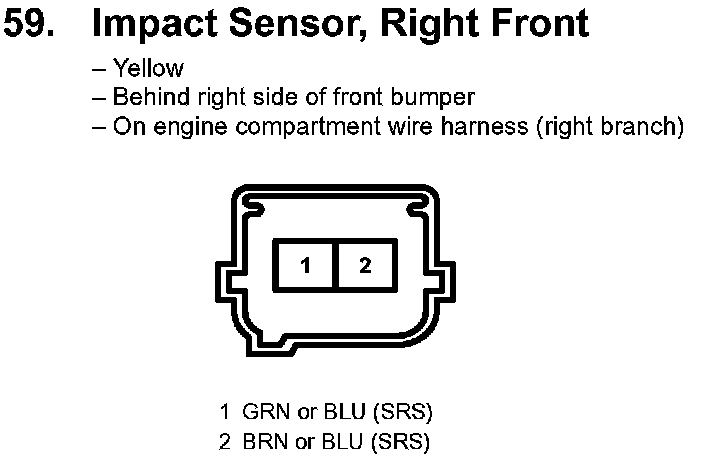

59. Impact Sensor, Right Front:

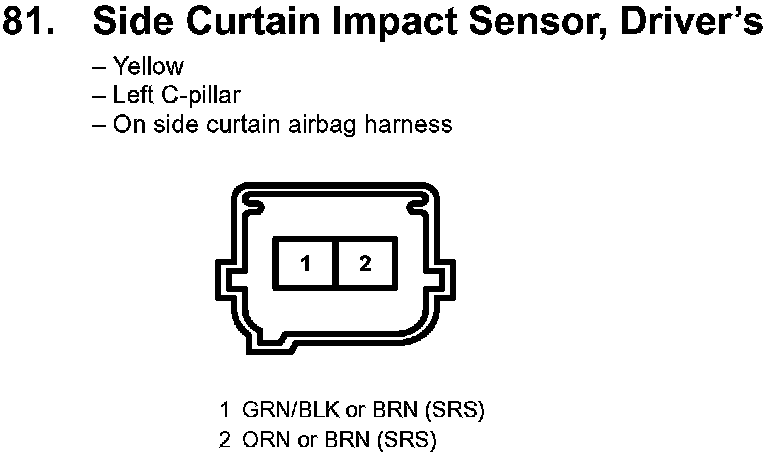

81. Side Curtain Impact Sensor, Driver's:

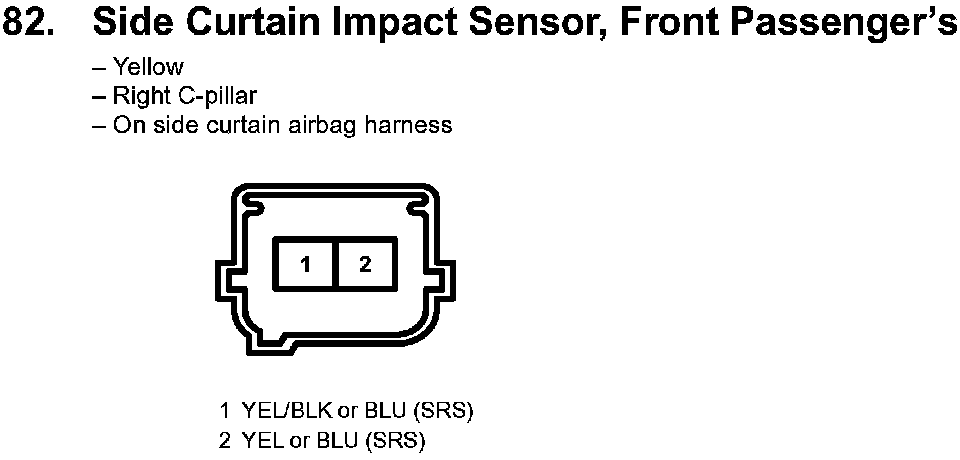

82. Side Curtain Impact Sensor, Front Passenger's:

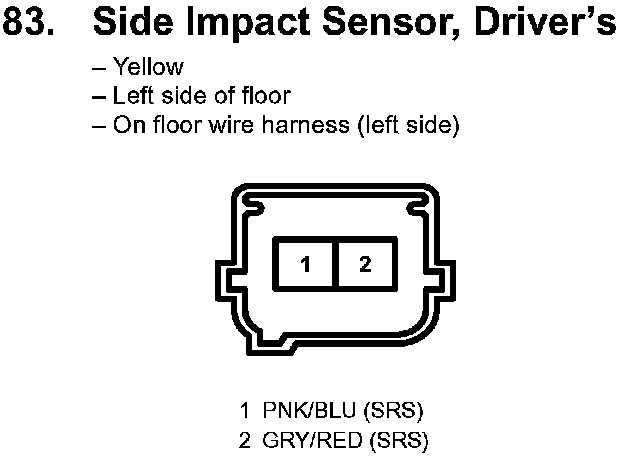

83. Side Impact Sensor, Driver's:

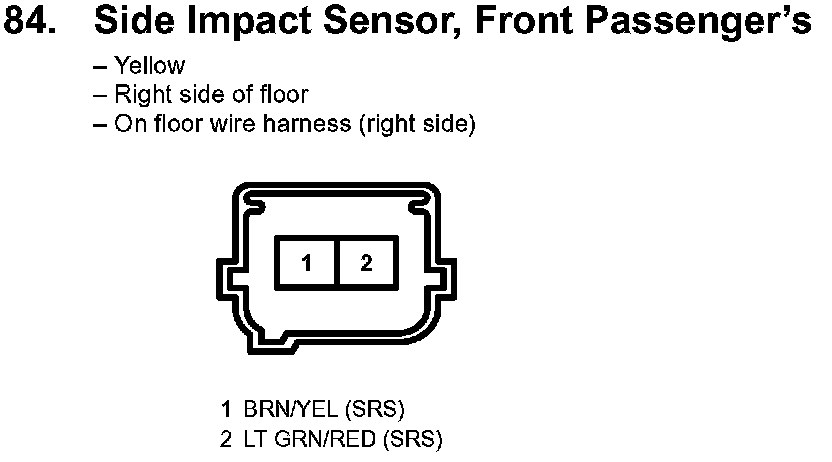

84. Side Impact Sensor, Front Passenger's:
