Throttle Position Sensor: Locations

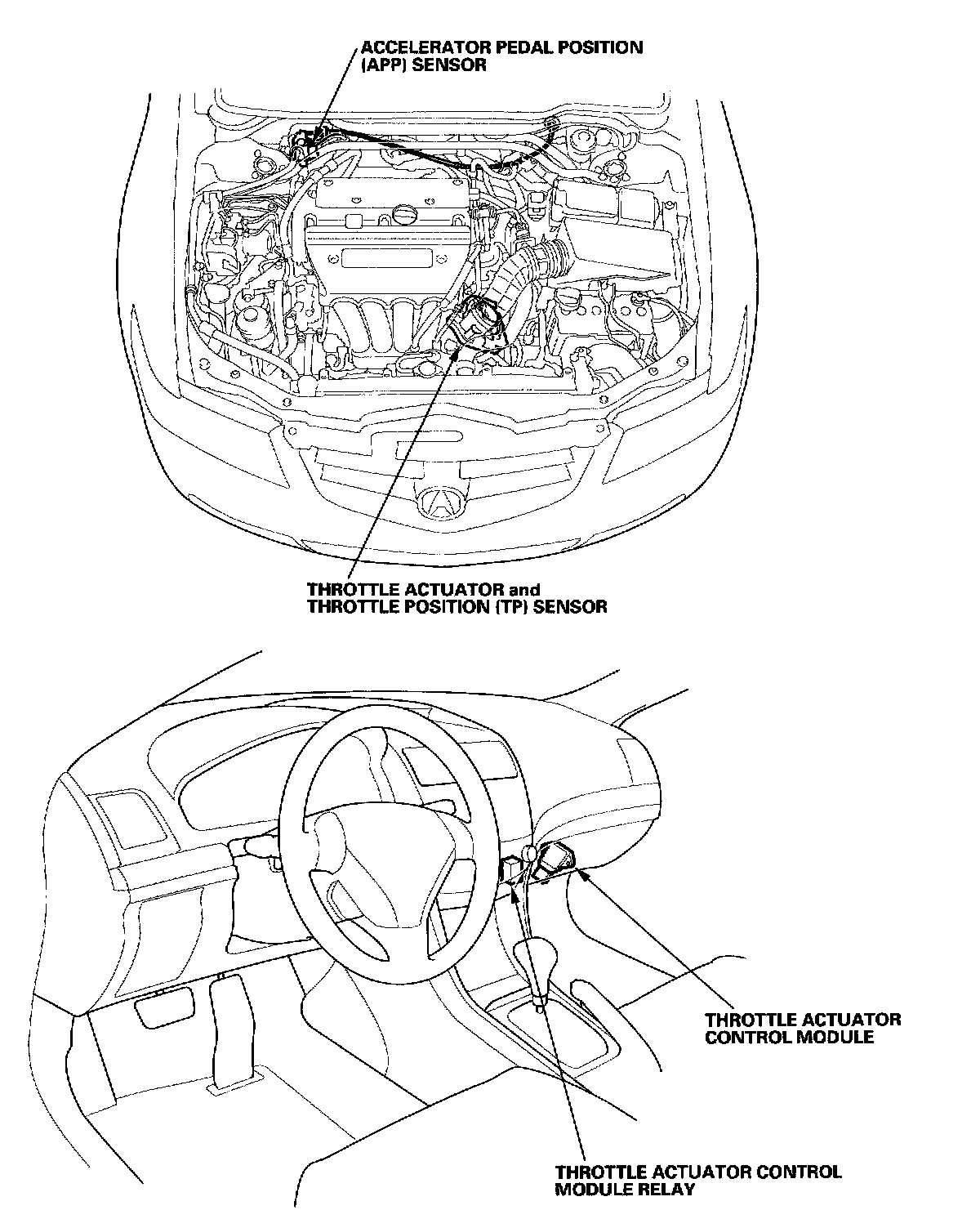

Electronic Throttle Control System - Component Location Index:

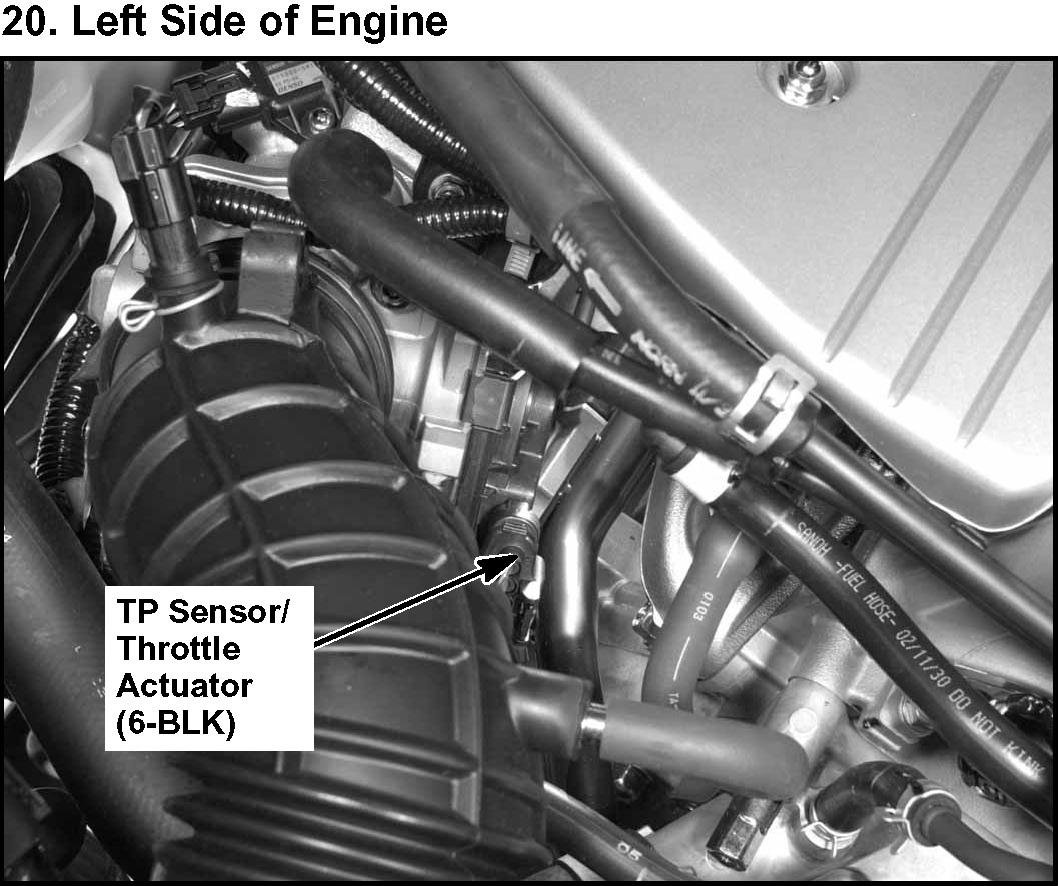

20. Left Side Of Engine:
