Circuit Diagram

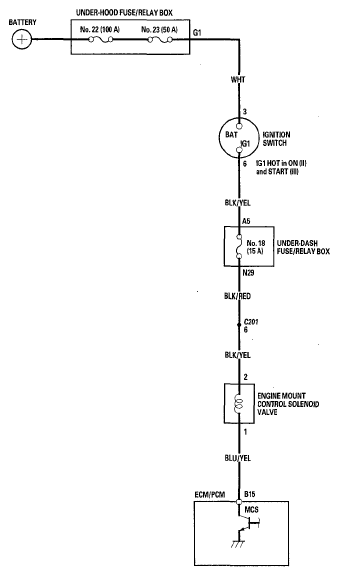

Fig 1: Engine Mount Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
