Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

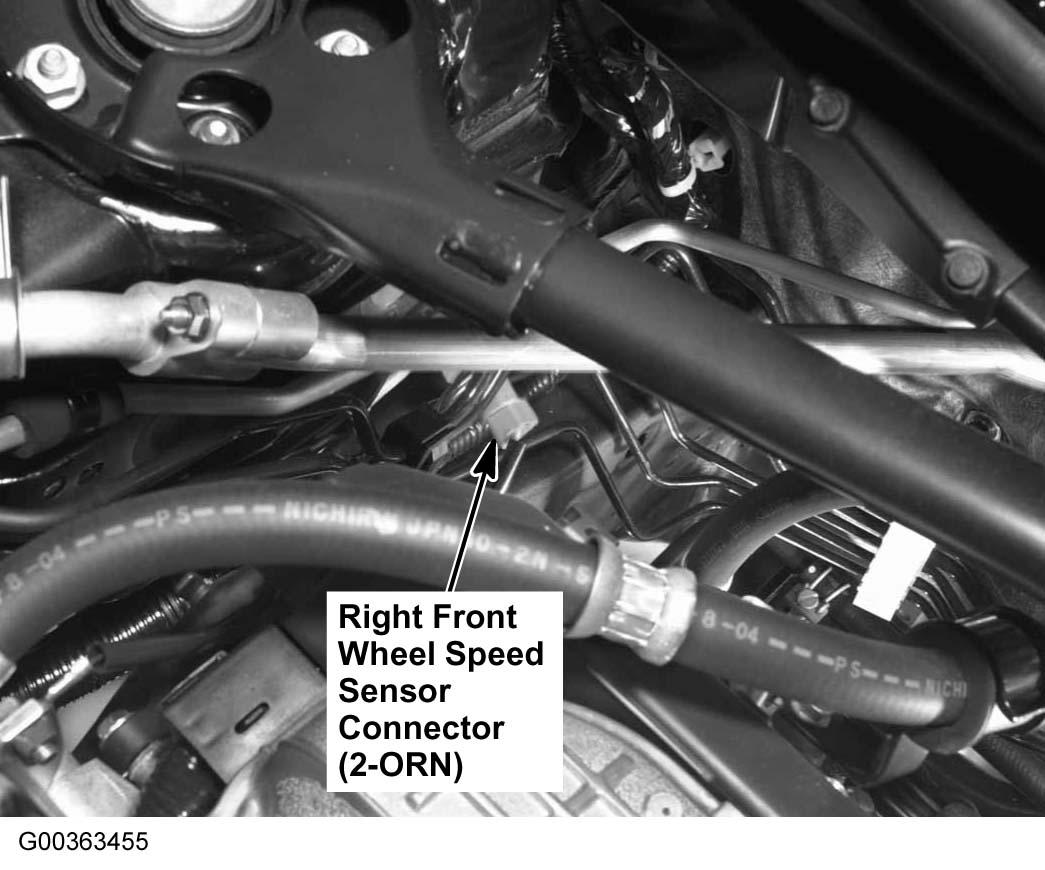

Fig 1: Right Side Of Engine Compartment

G00363455

Courtesy of AMERICAN HONDA MOTOR CO., INC.

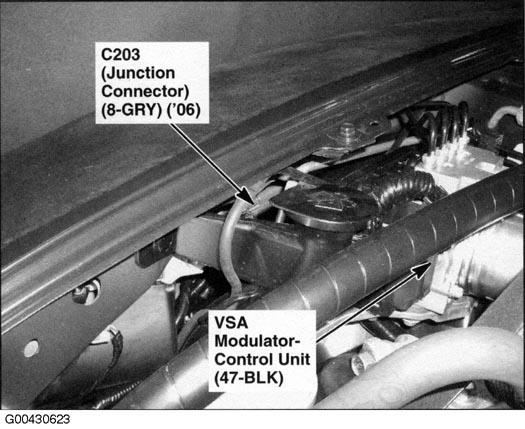

Fig 2: Right Side Of Engine Compartment

G00430623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

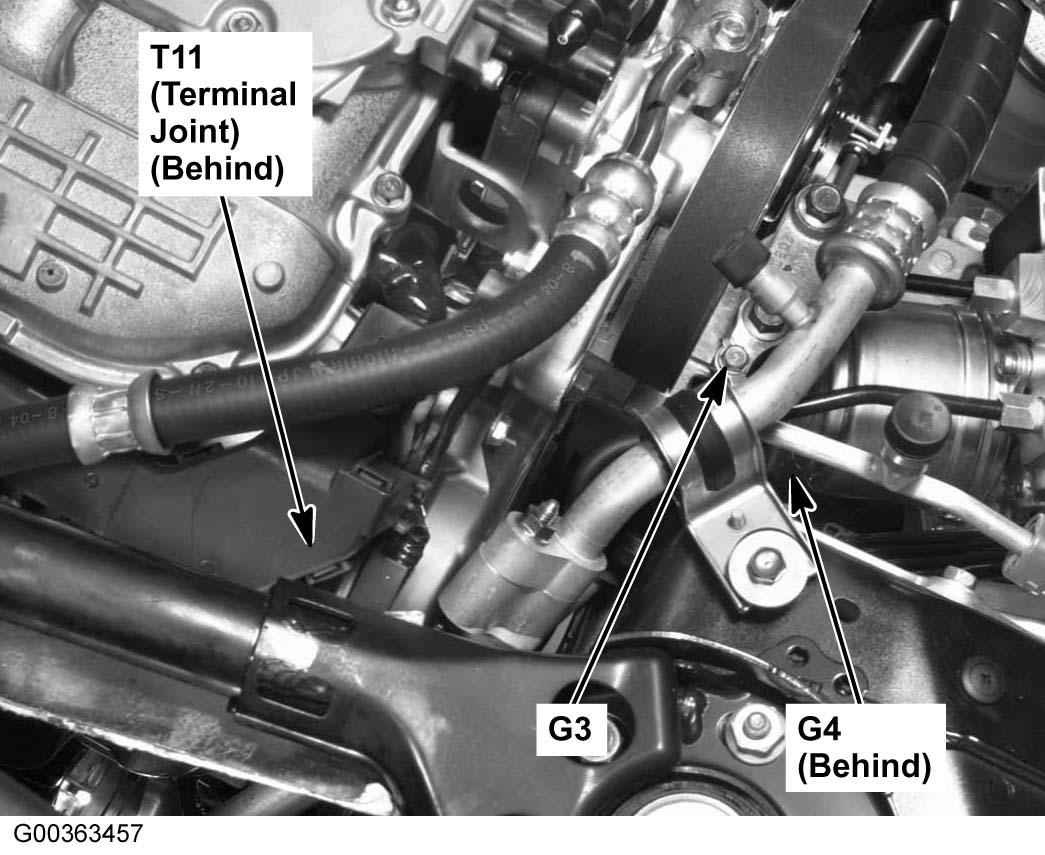

Fig 3: Right Side Of Engine Compartment

G00363457

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00363458

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine Compartment

G00363459

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Side Of Engine Compartment

G00363460

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Right Side Of Engine

G00363461

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Right Side Of Engine

G00363462

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Middle Of Engine

G00363463

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Middle Of Engine

G00363464

Courtesy of AMERICAN HONDA MOTOR CO., INC.

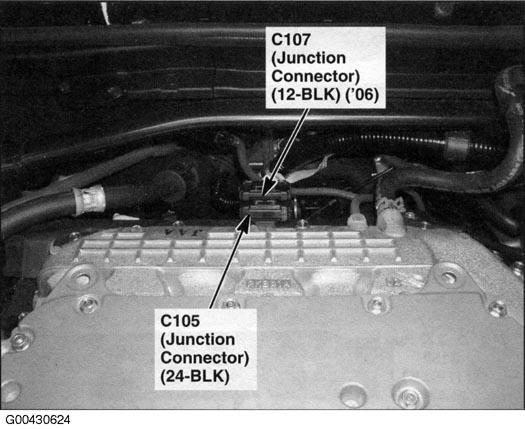

Fig 11: Middle Of Engine

G00430624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Middle Of Engine

G00363466

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Middle Of Engine

G00363467

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Middle Of Engine

G00363468

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Middle Of Engine

G00363469

Courtesy of AMERICAN HONDA MOTOR CO., INC.

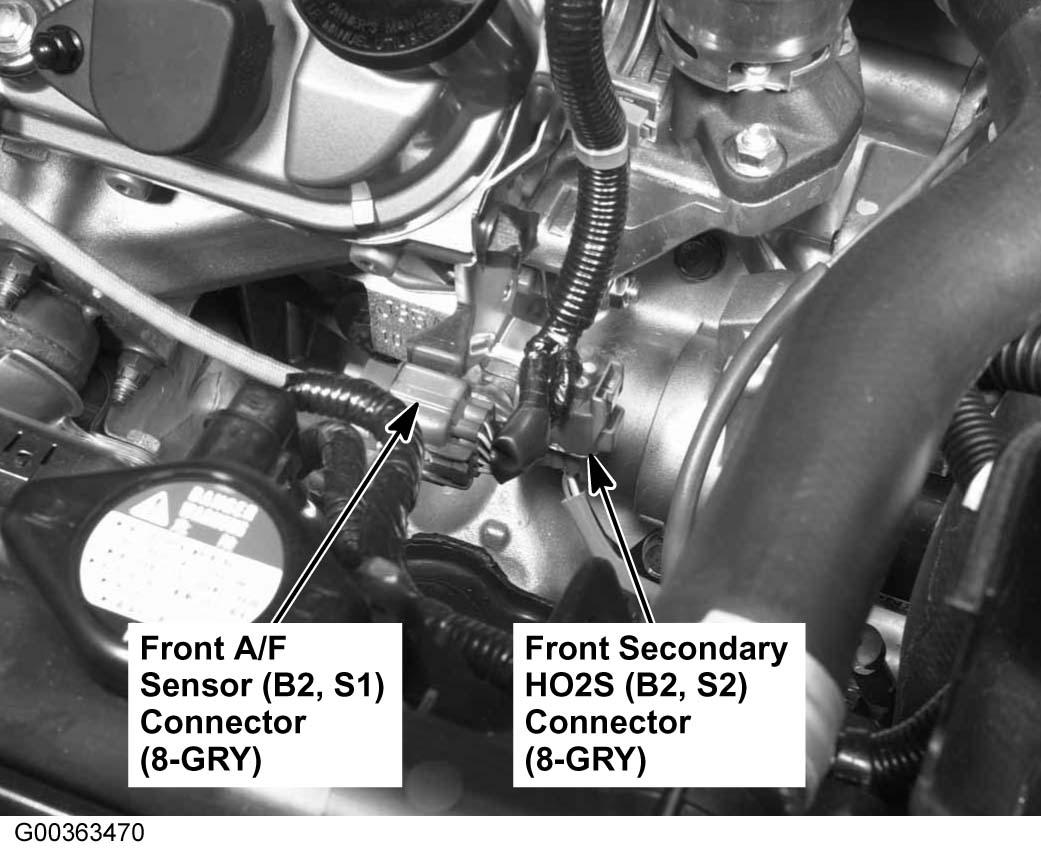

Fig 16: Middle Of Engine

G00363470

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Left Side Of Engine

G00363471

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Left Side Of Engine

G00363472

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Side Of Engine

G00363473

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Left Side Of Engine

G00363474

Courtesy of AMERICAN HONDA MOTOR CO., INC.

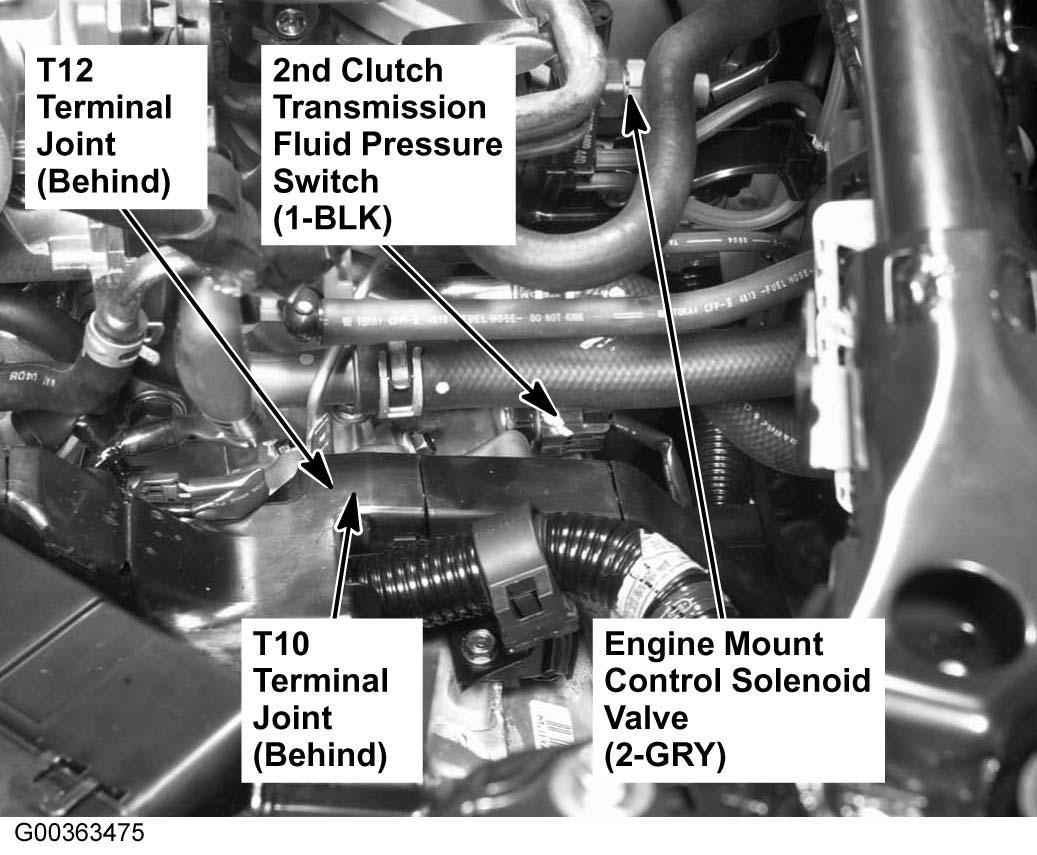

Fig 21: Left Side Of Engine

G00363475

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Left Side Of Engine Compartment

G00363476

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Transmission Housing

G00363477

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Transmission Housing

G00363478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

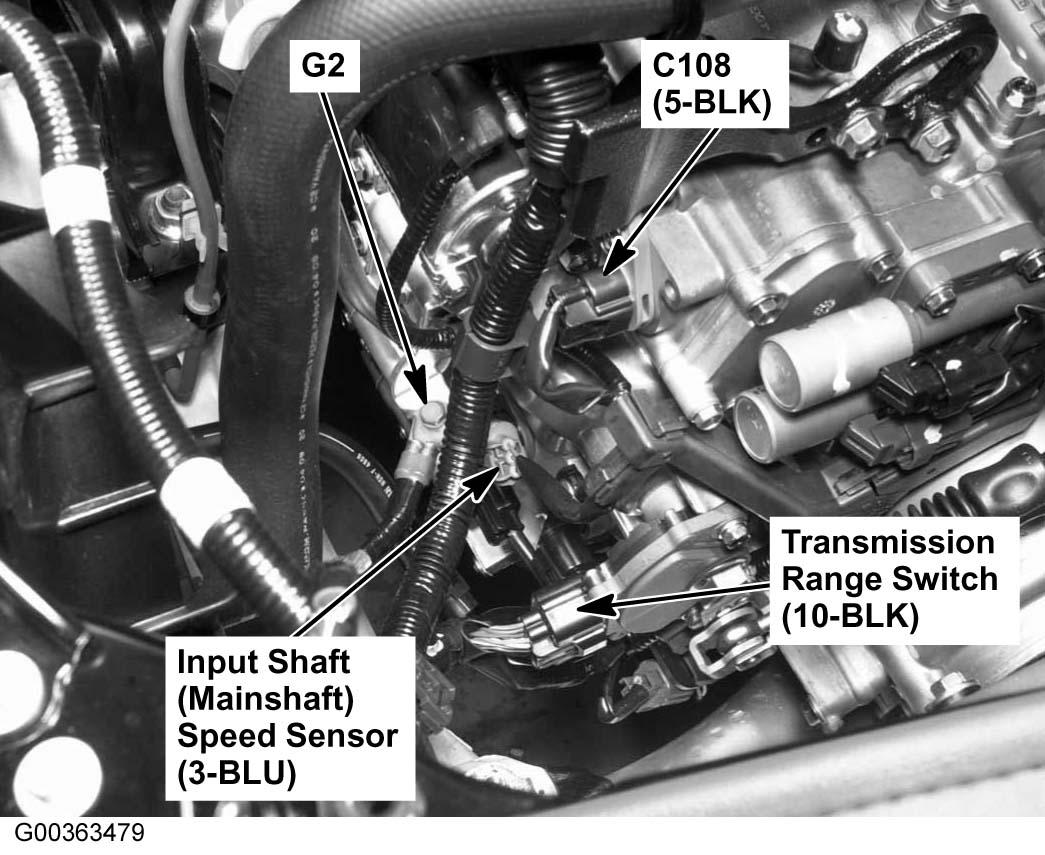

Fig 25: Transmission Housing

G00363479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

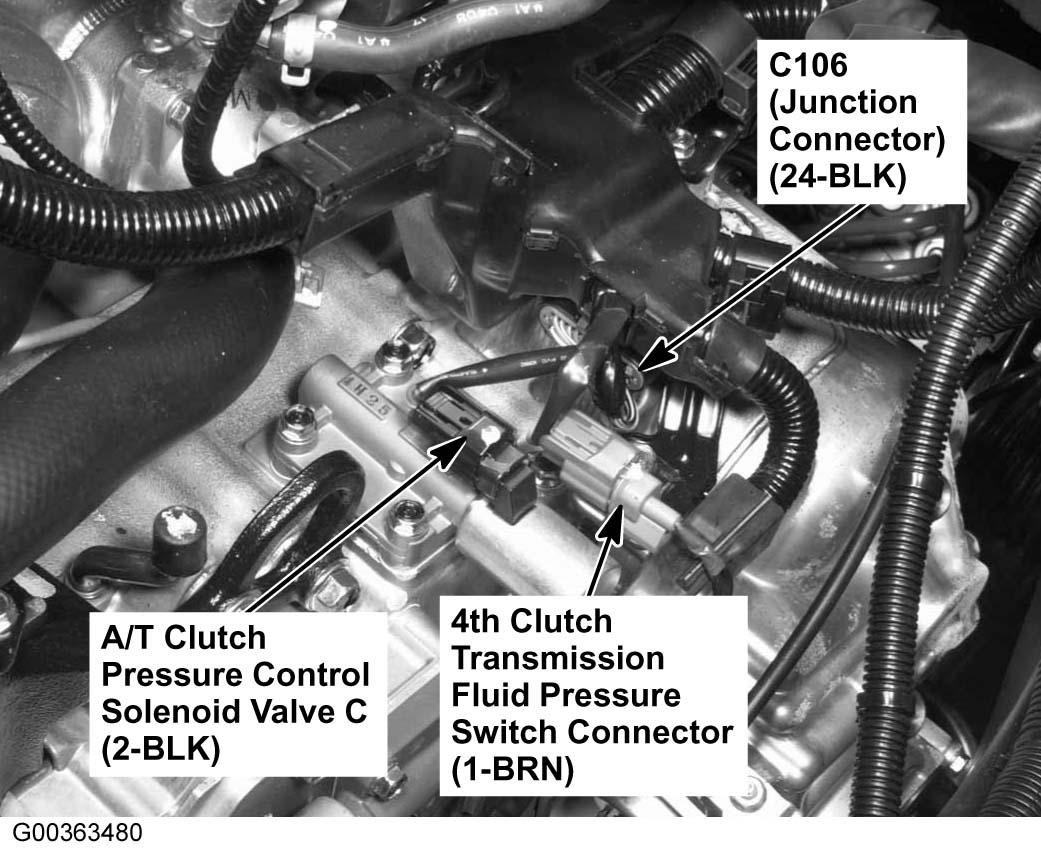

Fig 26: Transmission Housing

G00363480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Behind Left Headlight Assembly (Right Similar)

G00363481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Behind Left Headlight Assembly (Right Similar)

G00363482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Middle Of Engine Compartment

G00363483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Left Side Of Engine Compartment

G00363484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Left Side Of Engine Compartment

G00363485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Left Side Of Engine Compartment

G00363486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Left Side Of Engine Compartment

G00363487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 34: Left Side Of Engine Compartment

G00363488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

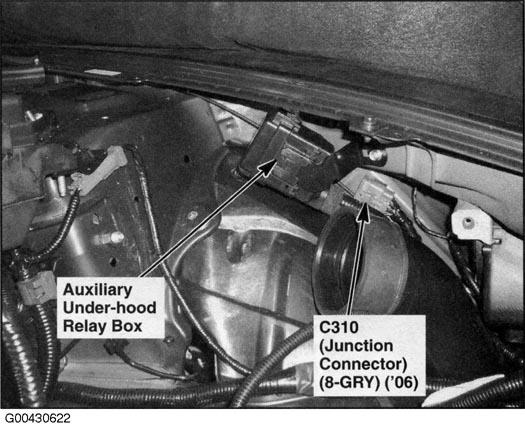

Fig 35: Left Side Of Engine Compartment

G00430622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

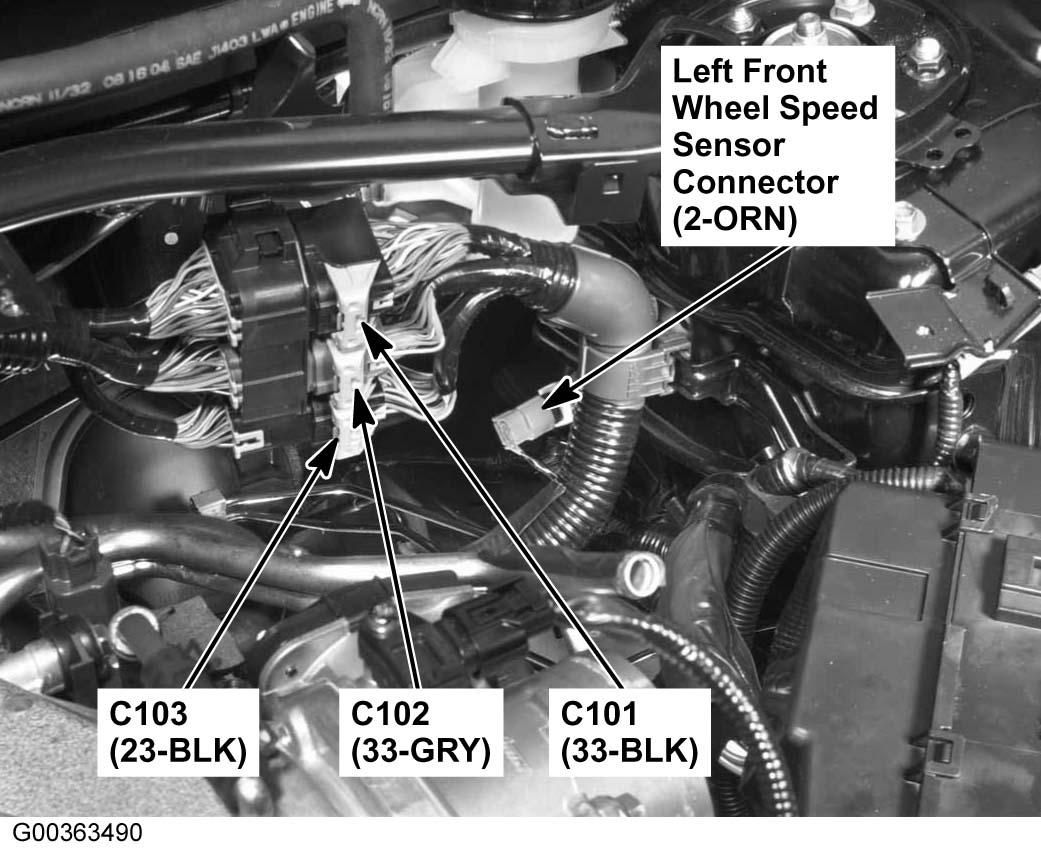

Fig 36: Left Side Of Engine Compartment

G00363490

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 37: Left Side Of Engine Compartment

G00363491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Left Side Of Cowl Cover

G00363492

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Left Side Of Dash

G00363493

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Left Side Of Dash

G00363494

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Left Side Of Dash

G00363495

Courtesy of AMERICAN HONDA MOTOR CO., INC.

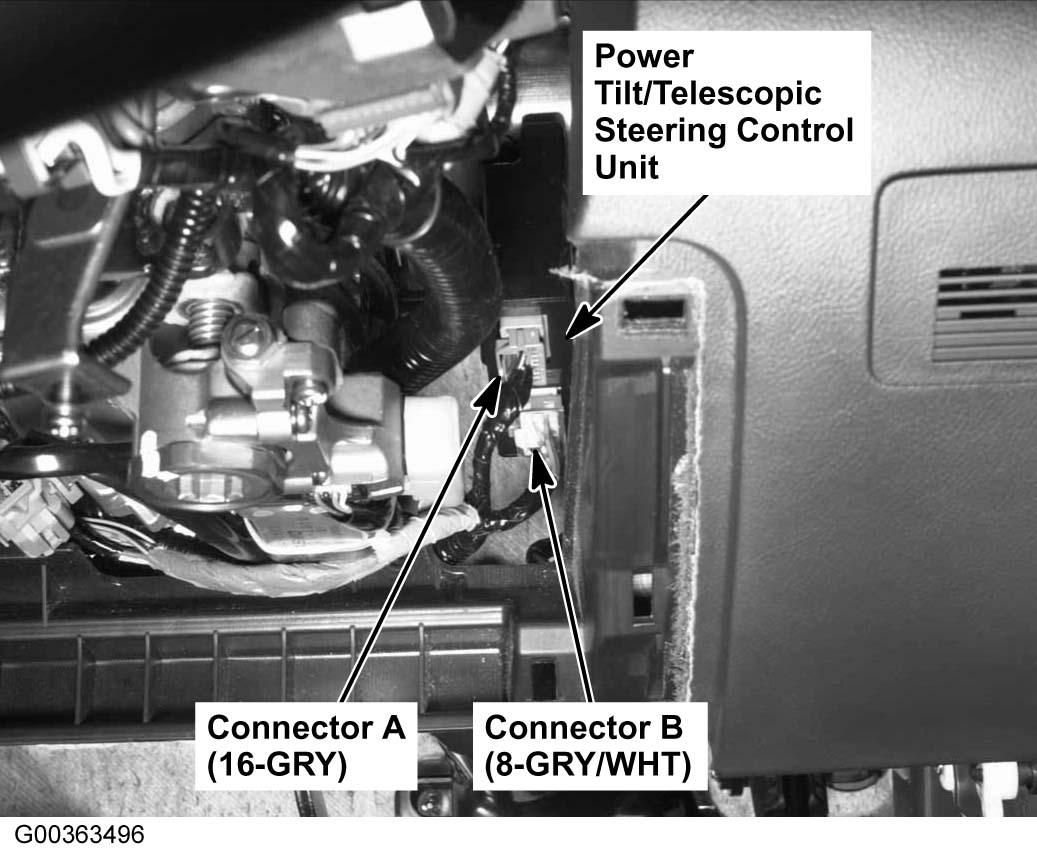

Fig 42: Under Left Side Of Dash

G00363496

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00363497

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Base Of Steering Wheel

G00363498

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Inside Steering Wheel

G00363499

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: In Steering Wheel Cover

G00363500

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: In Steering Wheel Cover

G00363501

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: In Steering Wheel Cover

G00363502

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: In Steering Wheel Cover

G00363503

Courtesy of AMERICAN HONDA MOTOR CO., INC.

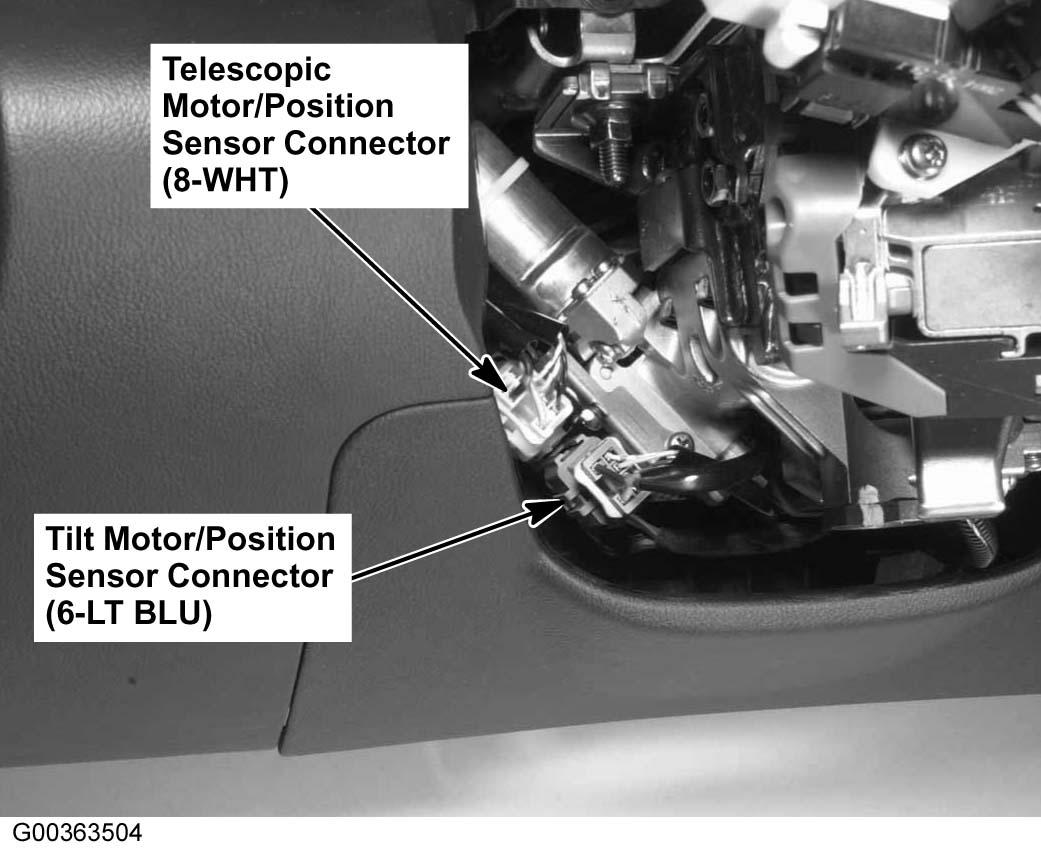

Fig 50: In Steering Wheel Cover

G00363504

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Behind Gauge Control Module

G00363505

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Left Side Of Dash

G00363506

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Left Side Of Dash

G00363507

Courtesy of AMERICAN HONDA MOTOR CO., INC.

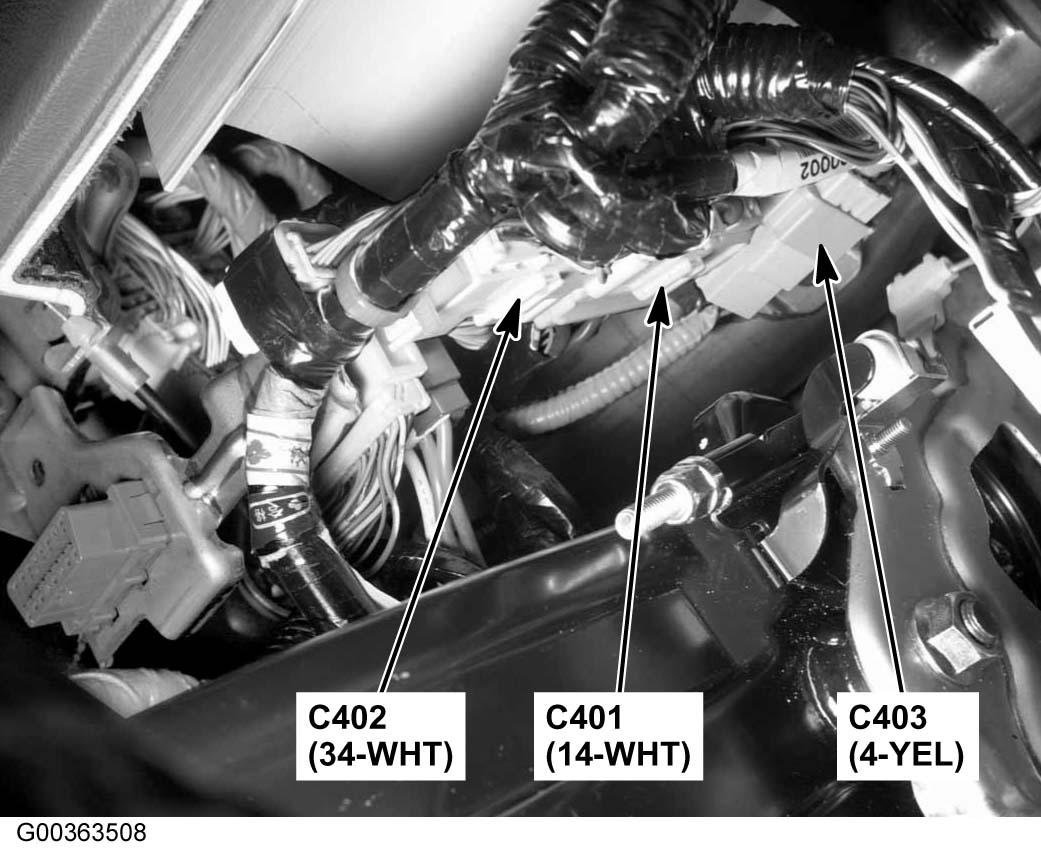

Fig 54: Under Left Side Of Dash

G00363508

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Left Side Of Dash

G00363509

Courtesy of AMERICAN HONDA MOTOR CO., INC.

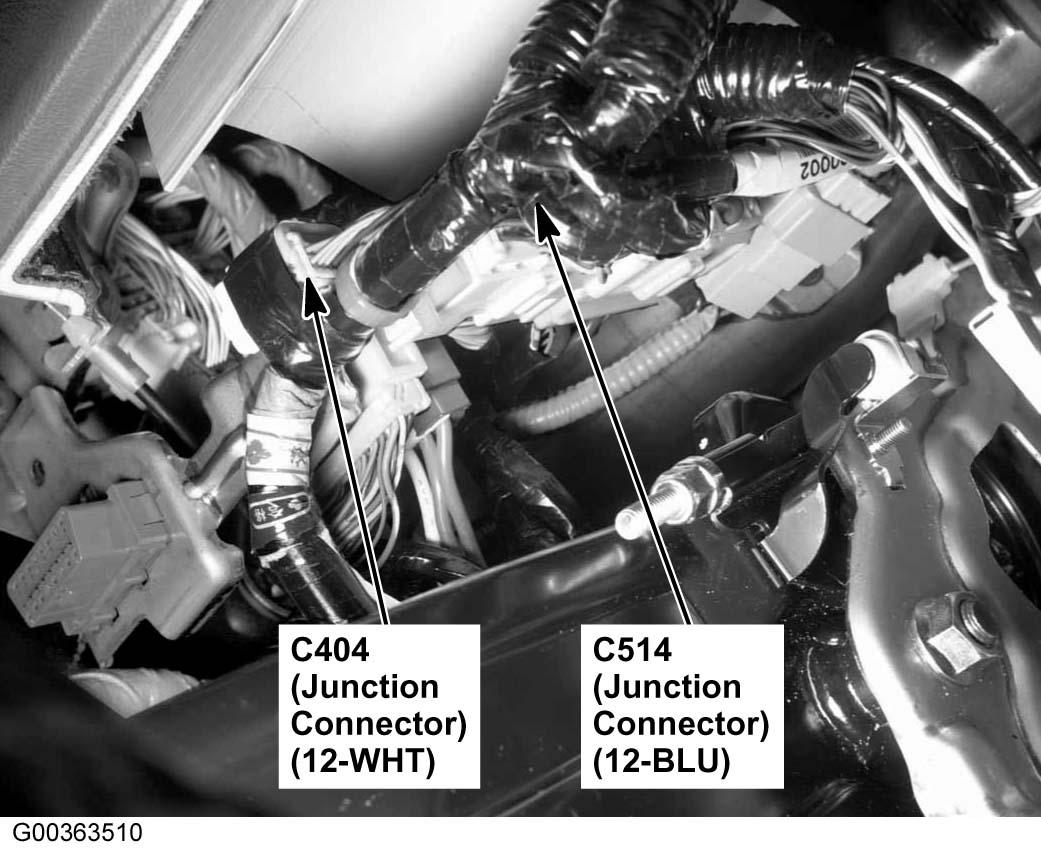

Fig 56: Under Left Side Of Dash

G00363510

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Left Side Of Dash

G00363511

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 58: Under Left Side Of Dash

G00363512

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 59: Under Left Side Of Dash

G00363513

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Left Side Of Dash

G00363514

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Behind Left Kick Panel

G00363515

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Behind Left Kick Panel

G00363516

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Behind Left Kick Panel

G00363517

Courtesy of AMERICAN HONDA MOTOR CO., INC.

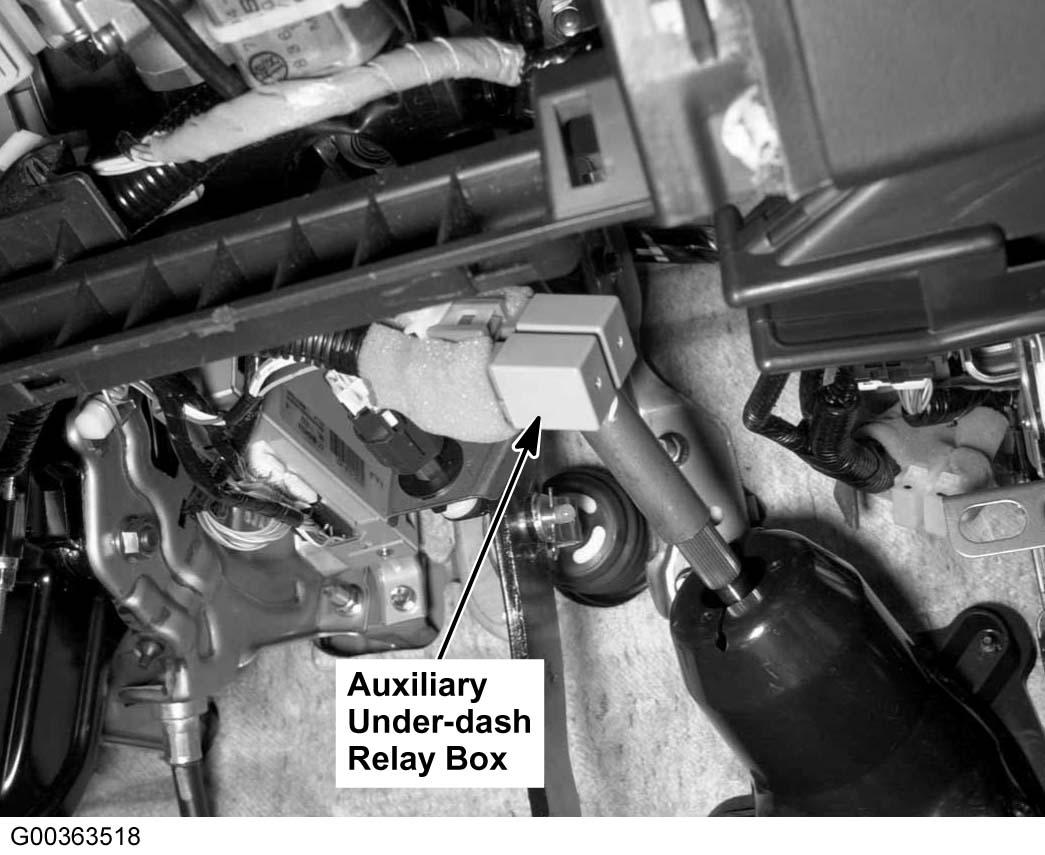

Fig 64: Under Left Side Of Dash

G00363518

Courtesy of AMERICAN HONDA MOTOR CO., INC.

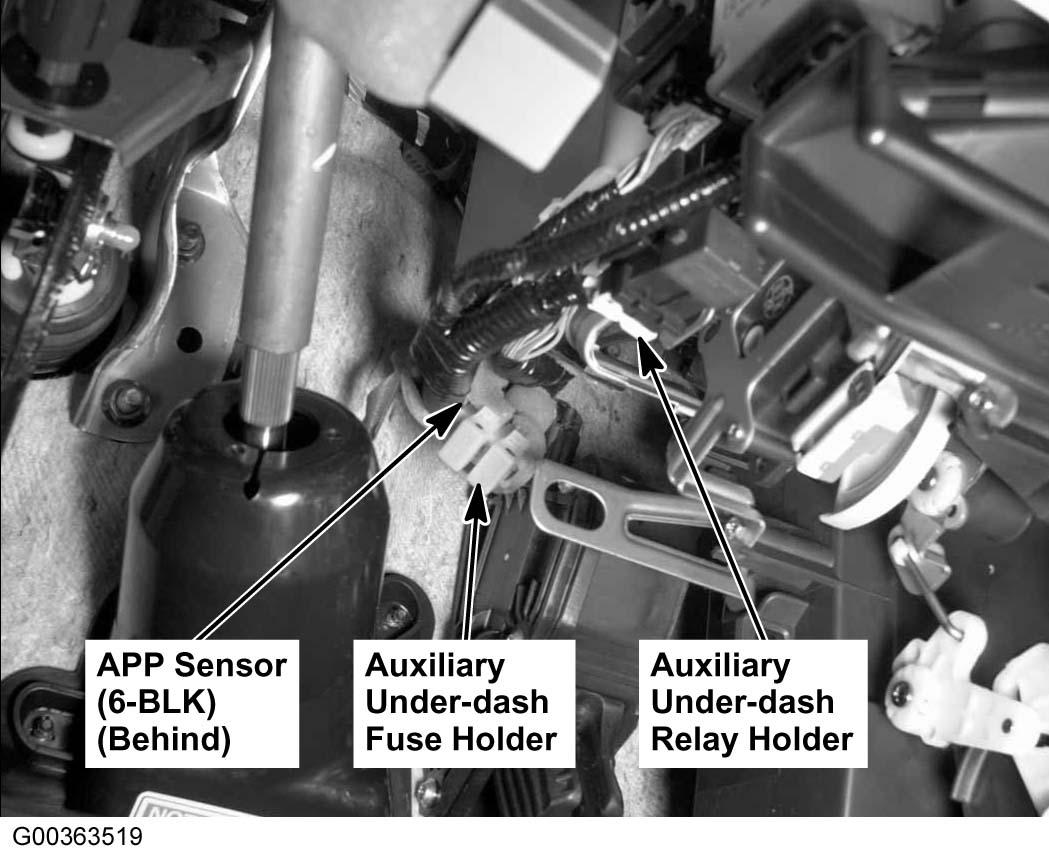

Fig 65: Under Left Side Of Dash

G00363519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

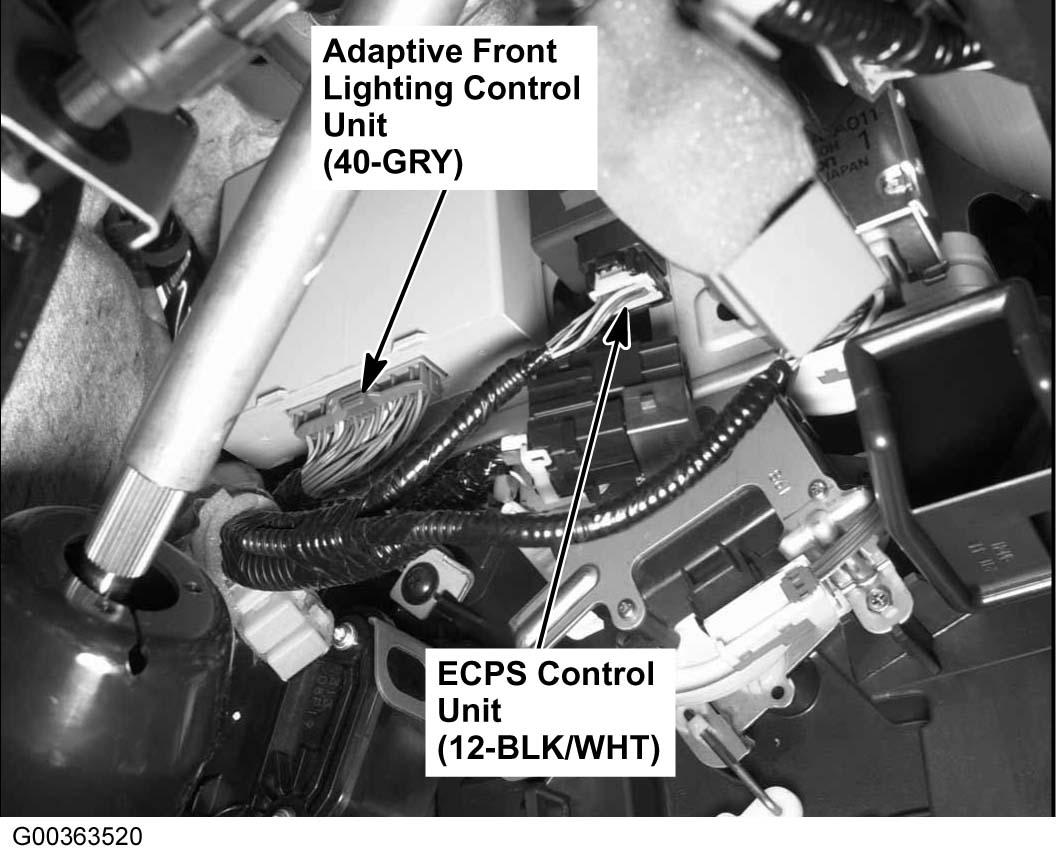

Fig 66: Under Left Side Of Dash

G00363520

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Under Left Side Of Dash

G00363521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Under Left Side Of Dash

G00363522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Under Left Side Of Dash

G00363523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Above Rear Differential

G00363524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Middle Of Dash

G00363525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

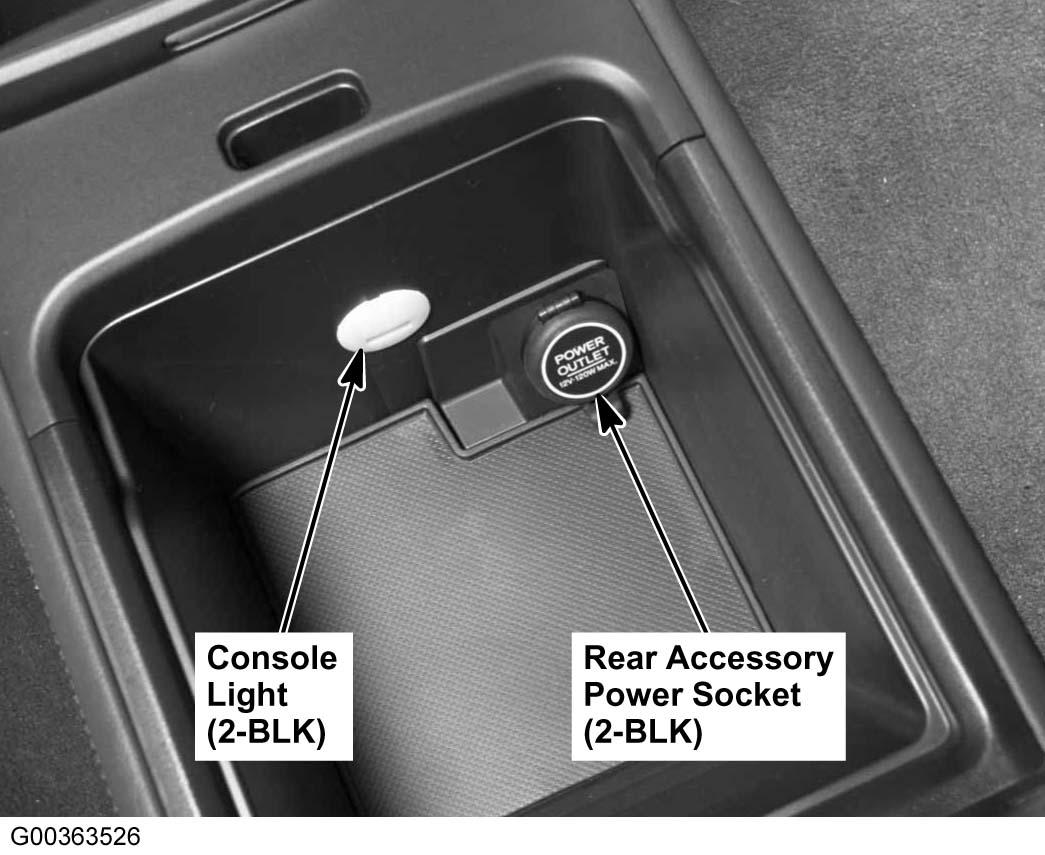

Fig 72: Rear Of Center Console

G00363526

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Behind Middle Of Dash

G00363527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Behind Middle Of Dash

G00363528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Behind Middle Of Dash

G00363529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Behind Middle Of Dash

G00363530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

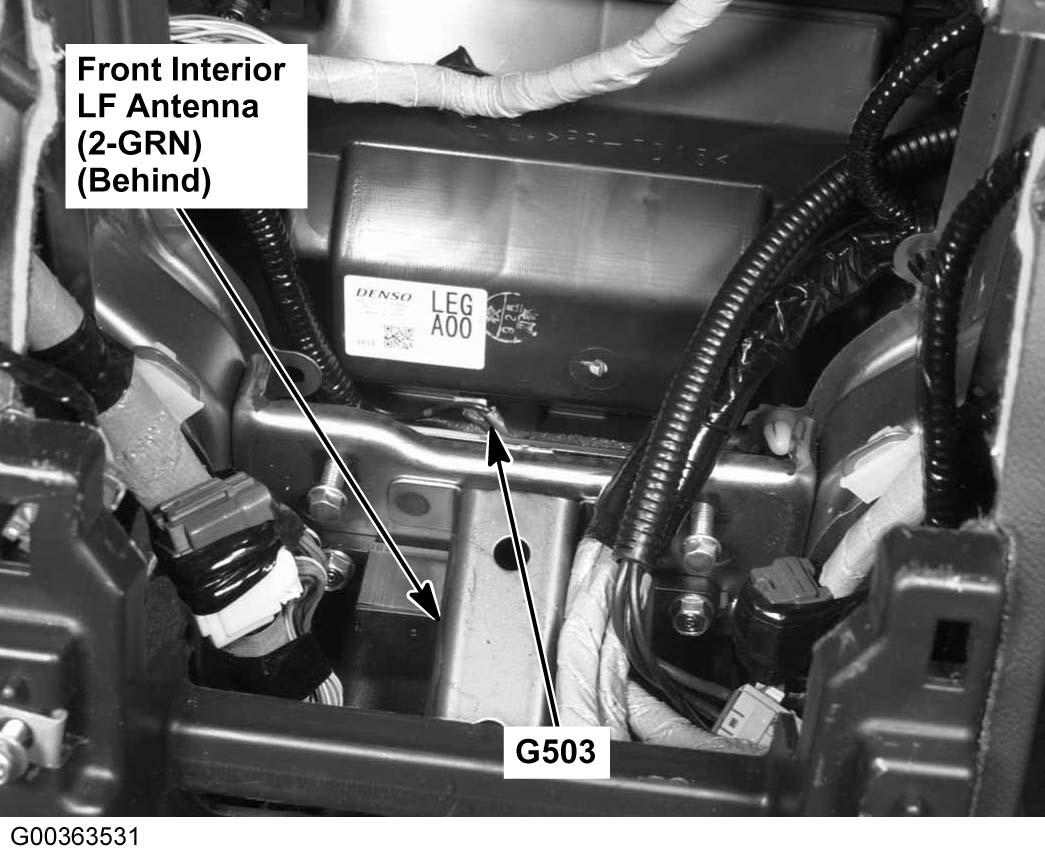

Fig 77: Behind Middle Of Dash

G00363531

Courtesy of AMERICAN HONDA MOTOR CO., INC.

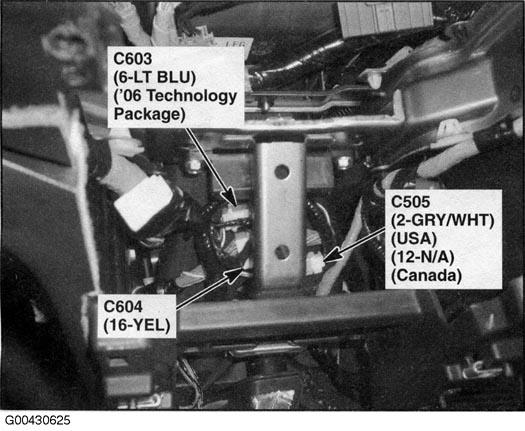

Fig 78: Behind Middle Of Dash

G00430625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Behind Middle Of Dash

G00363533

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Behind Middle Of Dash

G00363534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Under Middle Of Dash

G00363535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Under Middle Of Dash

G00363536

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Middle Of Dash

G00363537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Under Center Console

G00363538

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Under Center Console

G00363539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

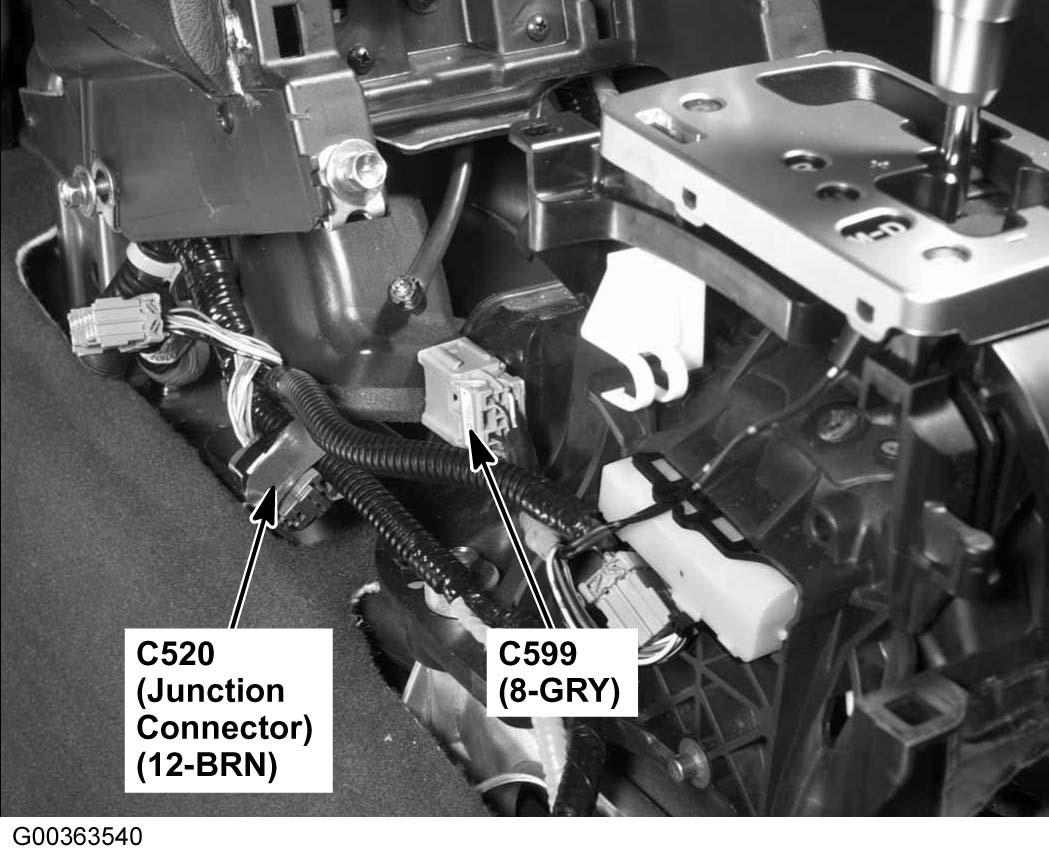

Fig 86: Under Center Console

G00363540

Courtesy of AMERICAN HONDA MOTOR CO., INC.

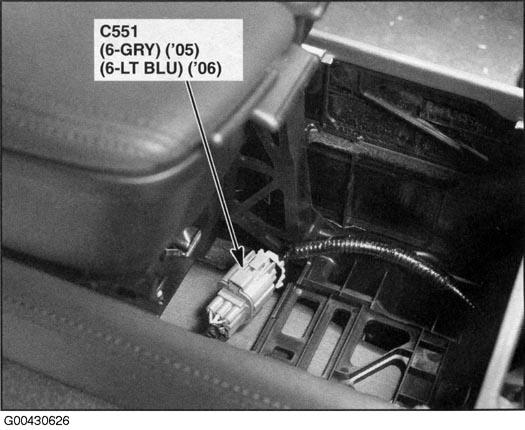

Fig 87: Under Center Console

G00430626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Under Center Console

G00363542

Courtesy of AMERICAN HONDA MOTOR CO., INC.

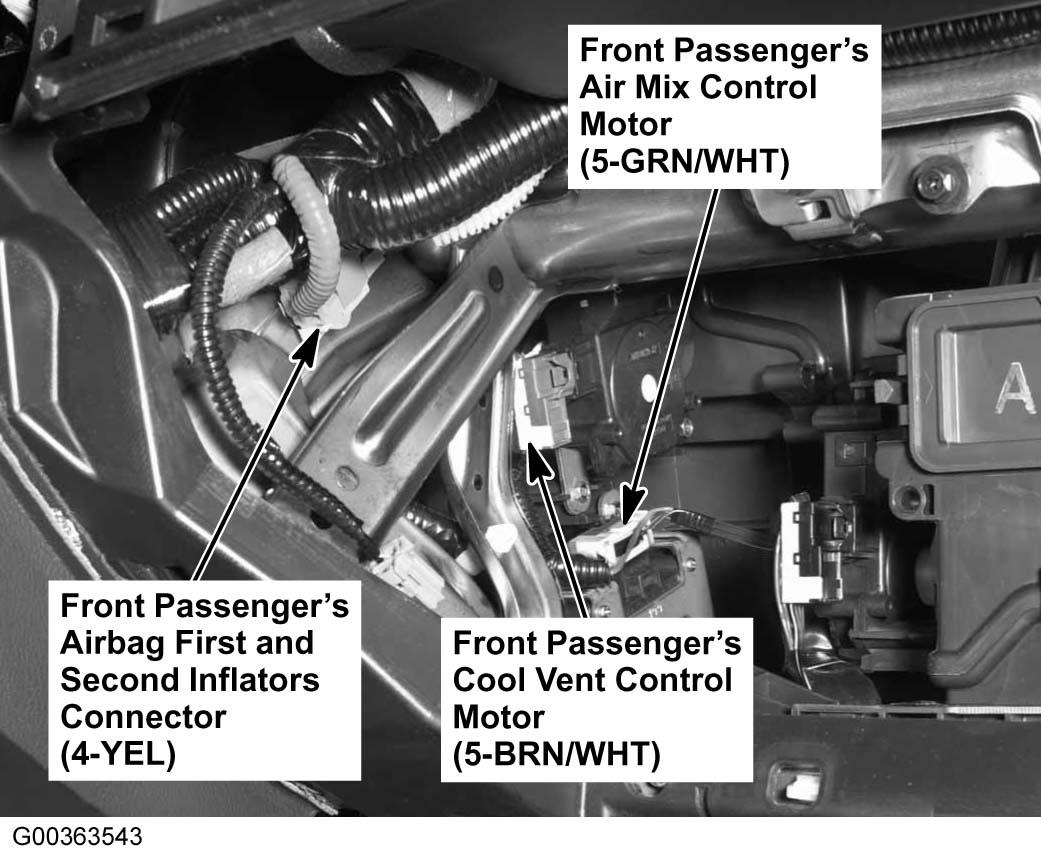

Fig 89: Behind Glove Box

G00363543

Courtesy of AMERICAN HONDA MOTOR CO., INC.

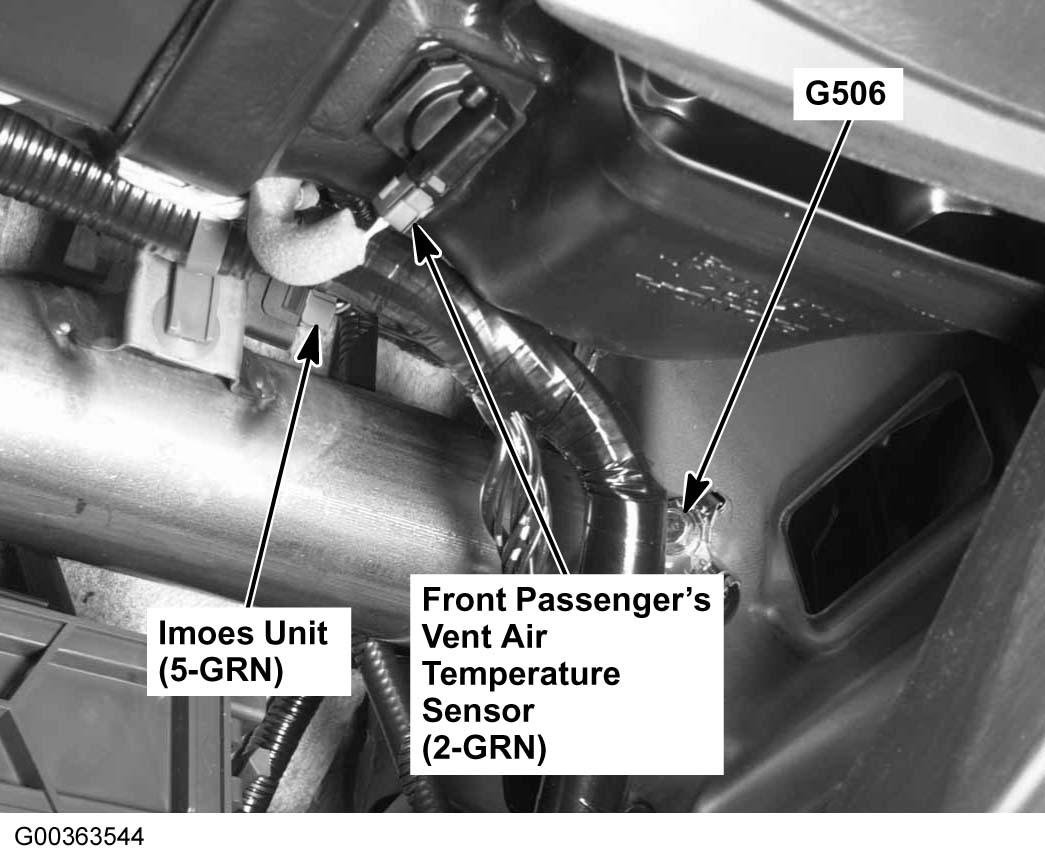

Fig 90: Behind Glove Box

G00363544

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Behind Glove Box

G00363545

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Behind Glove Box

G00363546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Right Side Of Dash

G00363547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Under Right Side Of Dash

G00363548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under Right Side Of Dash

G00363549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Under Right Side Of Dash

G00363550

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Behind Right Kick Panel

G00363551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Behind Right Kick Panel

G00363552

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Behind Right Kick Panel

G00363553

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Behind Right Kick Panel

G00363554

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Left Side Of Driver's Seat

G00363555

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Right Side Of Driver's Seat

G00363556

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Right Side Of Driver's Seat

G00363557

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Right Side Of Driver's Seat

G00363558

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Under Driver's Seat

G00363559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 106: Under Driver's Seat

G00363560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Under Driver's Seat

G00363561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Under Driver's Seat

G00363562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

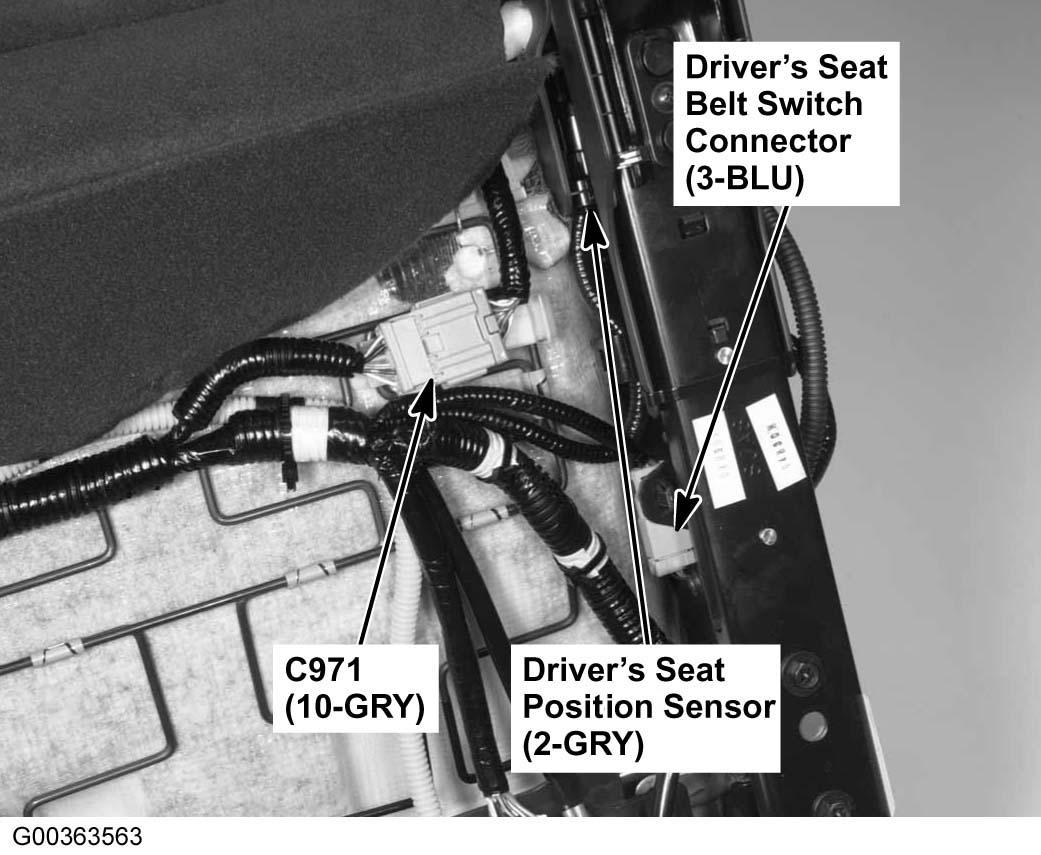

Fig 109: Under Driver's Seat

G00363563

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: In Front Passenger's Seat

G00363564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

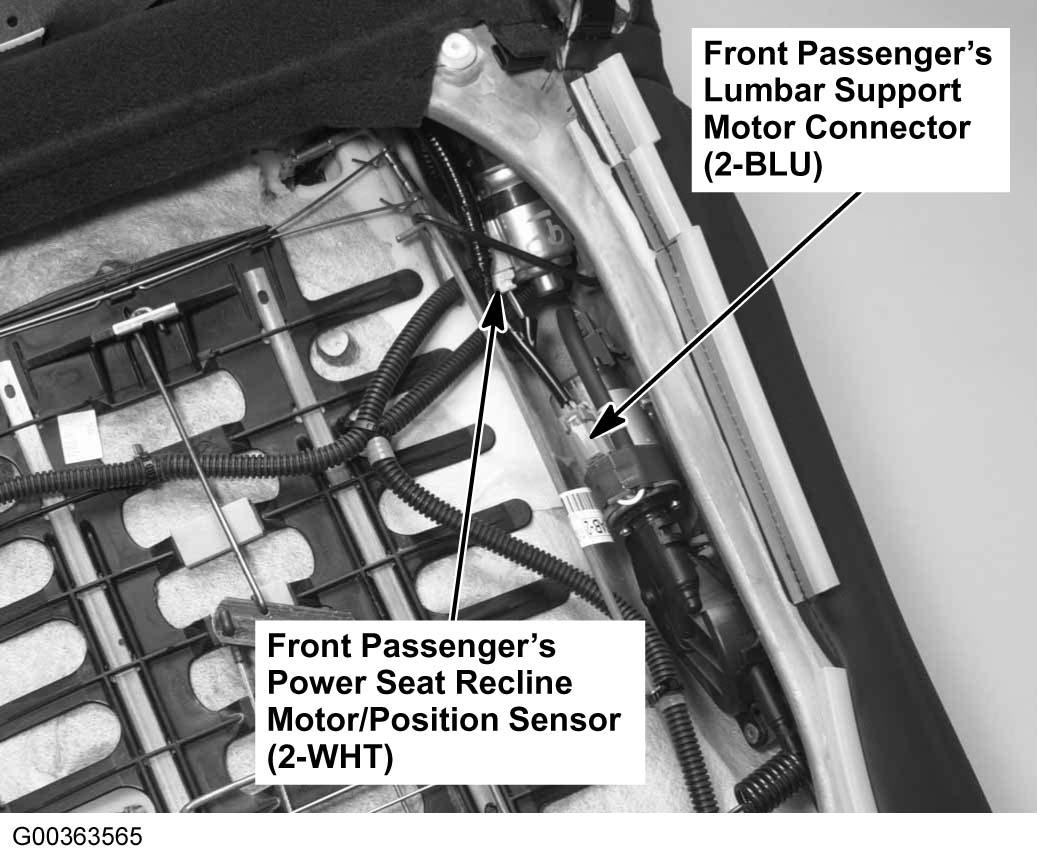

Fig 111: Left Side Of Front Passenger's Seat

G00363565

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Left Side Of Front Passenger's Seat

G00363566

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Under Front Passenger's Seat

G00363567

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 114: Under Front Passenger's Seat

G00363568

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 115: Under Front Passenger's Seat

G00363569

Courtesy of AMERICAN HONDA MOTOR CO., INC.

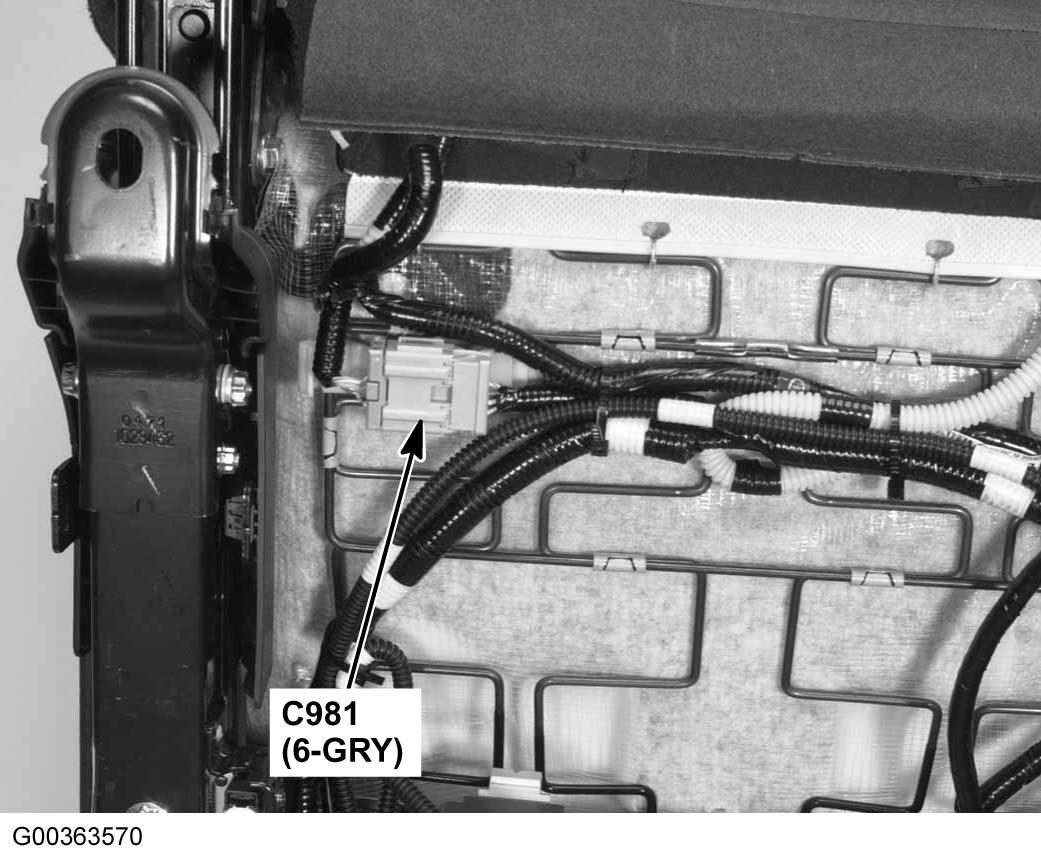

Fig 116: Under Front Passenger's Seat

G00363570

Courtesy of AMERICAN HONDA MOTOR CO., INC.

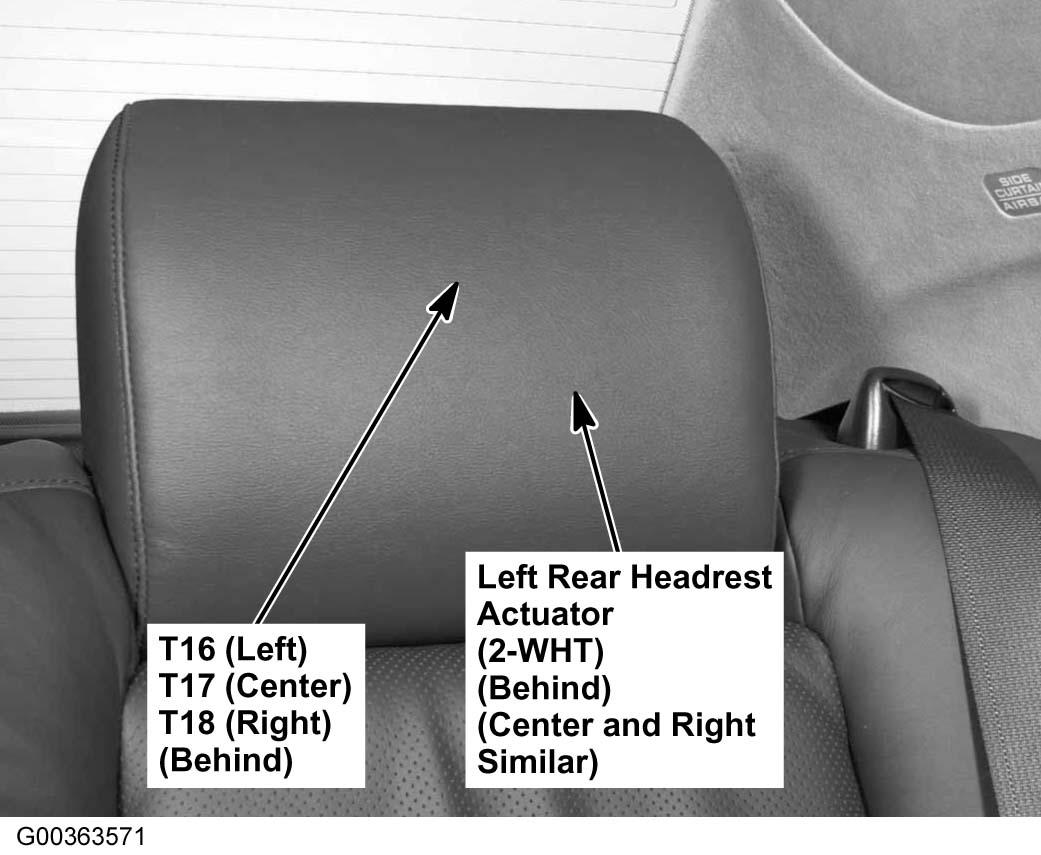

Fig 117: Left Side Of Rear Seat

G00363571

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 118: Right Side Of Rear Seat

G00363572

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Center Of Rear Seat

G00363573

Courtesy of AMERICAN HONDA MOTOR CO., INC.

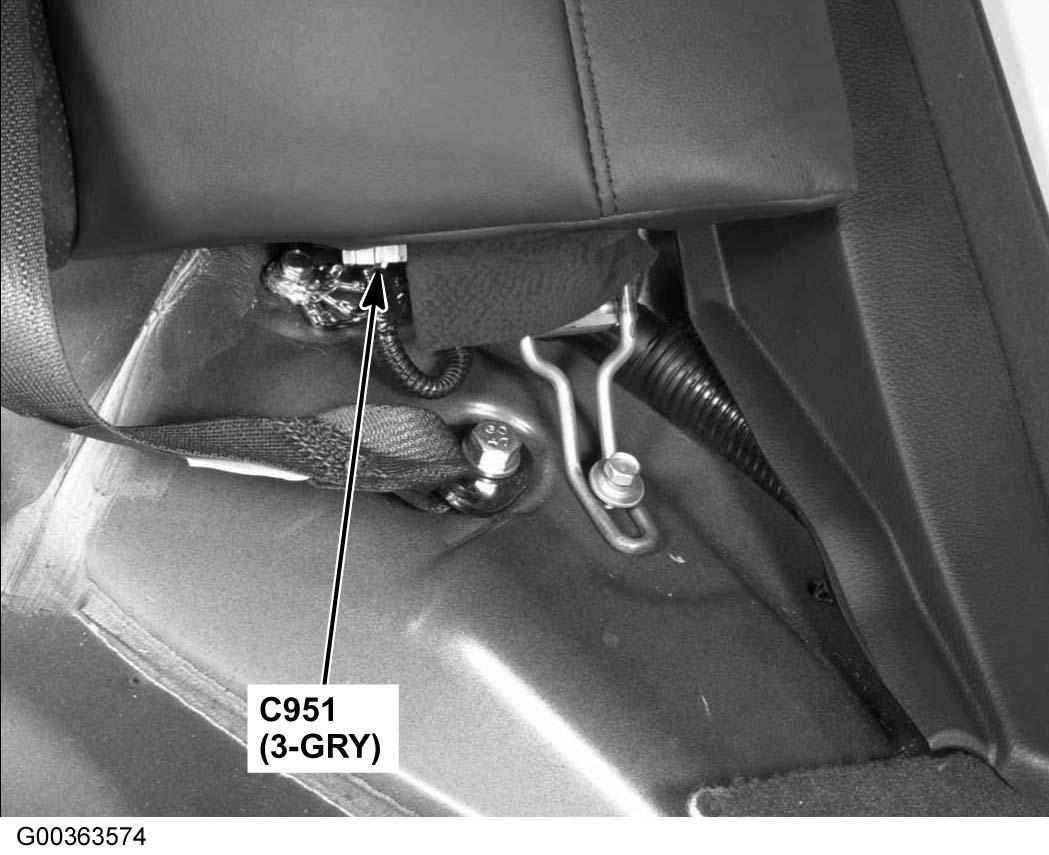

Fig 120: Under Rear Seat

G00363574

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 121: Left Side Of Floor (Right Similar)

G00363575

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 122: Under Rear Seat

G00363576

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Under Rear Seat

G00363577

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 124: Under Rear Seat

G00363578

Courtesy of AMERICAN HONDA MOTOR CO., INC.

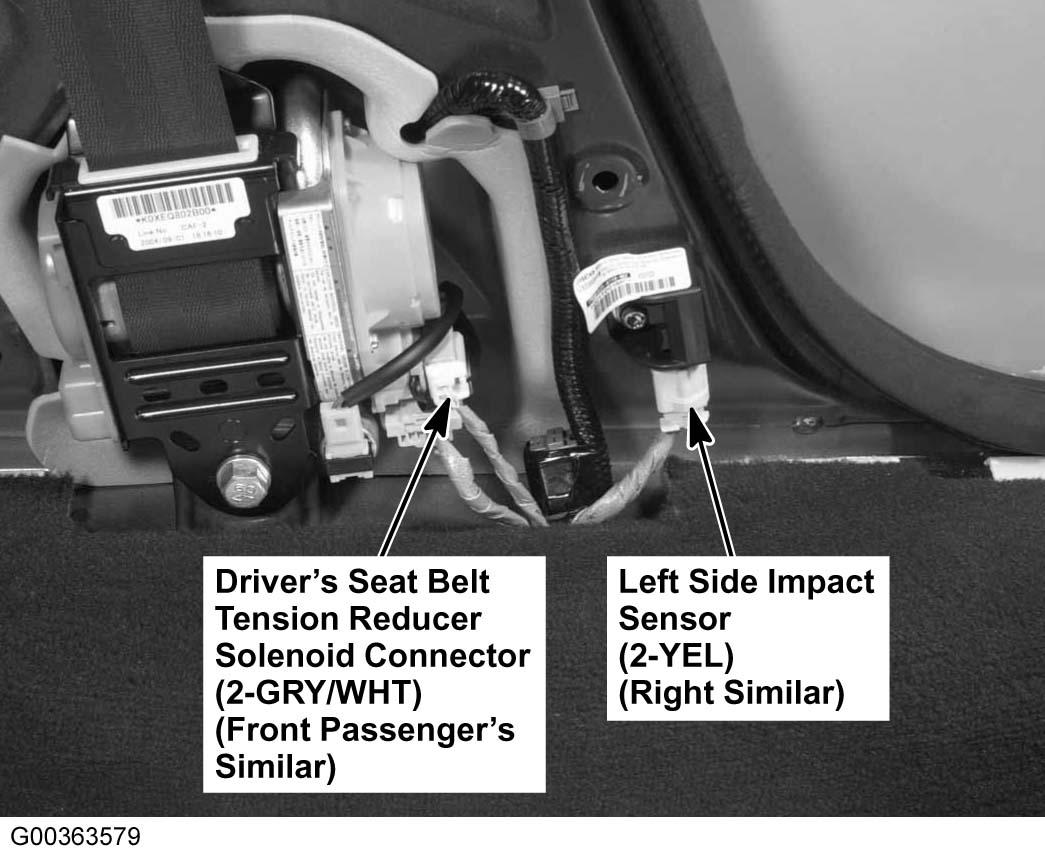

Fig 125: Left "B" Pillar (Right Similar)

G00363579

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 126: Left "B" Pillar (Right Similar)

G00363580

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 127: Left "B" Pillar (Right Similar)

G00363581

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 128: Driver's Door (Front Passenger's Similar)

G00363582

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Driver's Door (Front Passenger's Similar)

G00363583

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Driver's Door (Front Passenger's Similar)

G00363584

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Left Rear Door (Right Similar)

G00363585

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Driver's Door (Front Passenger's Similar)

G00363586

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Driver's Door (Front Passenger's Similar)

G00363587

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Driver's Door

G00363588

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Front Passenger's Door

G00363589

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 136: Left Rear Door (Right Similar)

G00363590

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 137: Left Rear Door (Right Similar)

G00363591

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 138: Left Front Of Roof

G00363593

Courtesy of AMERICAN HONDA MOTOR CO., INC.

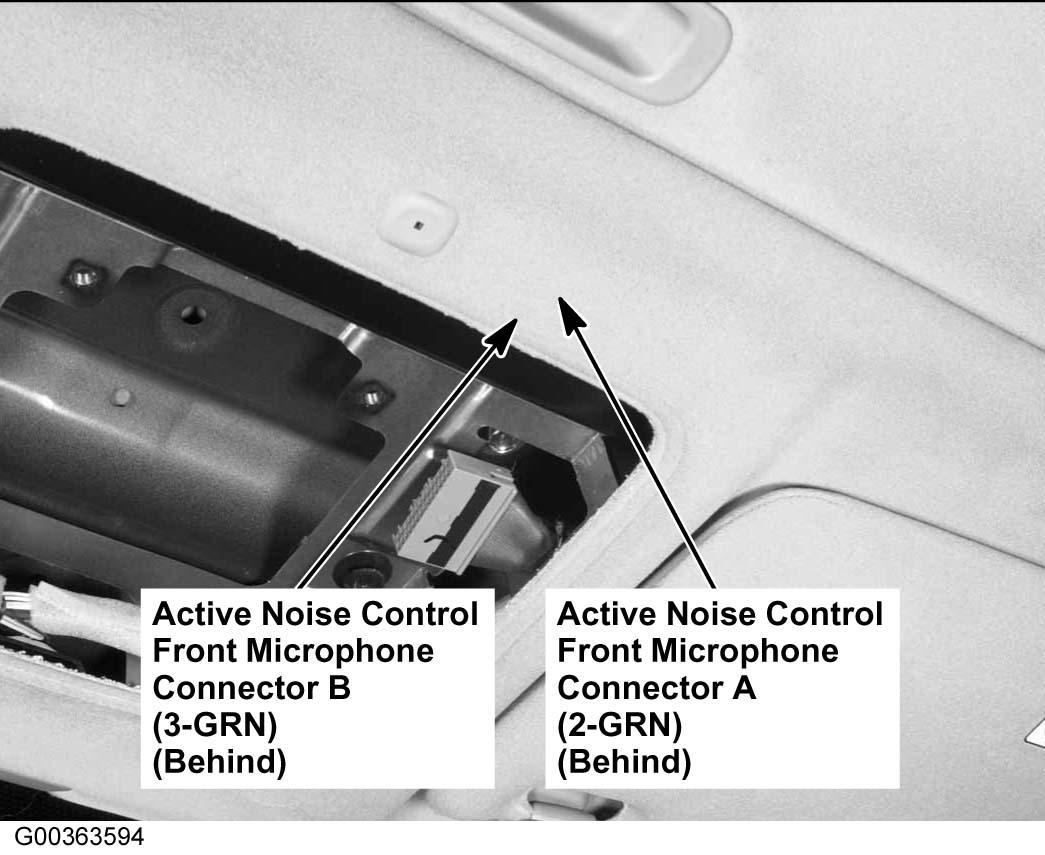

Fig 139: Front Of Roof

G00363594

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Rear Of Roof (USA)

G00363595

Courtesy of AMERICAN HONDA MOTOR CO., INC.

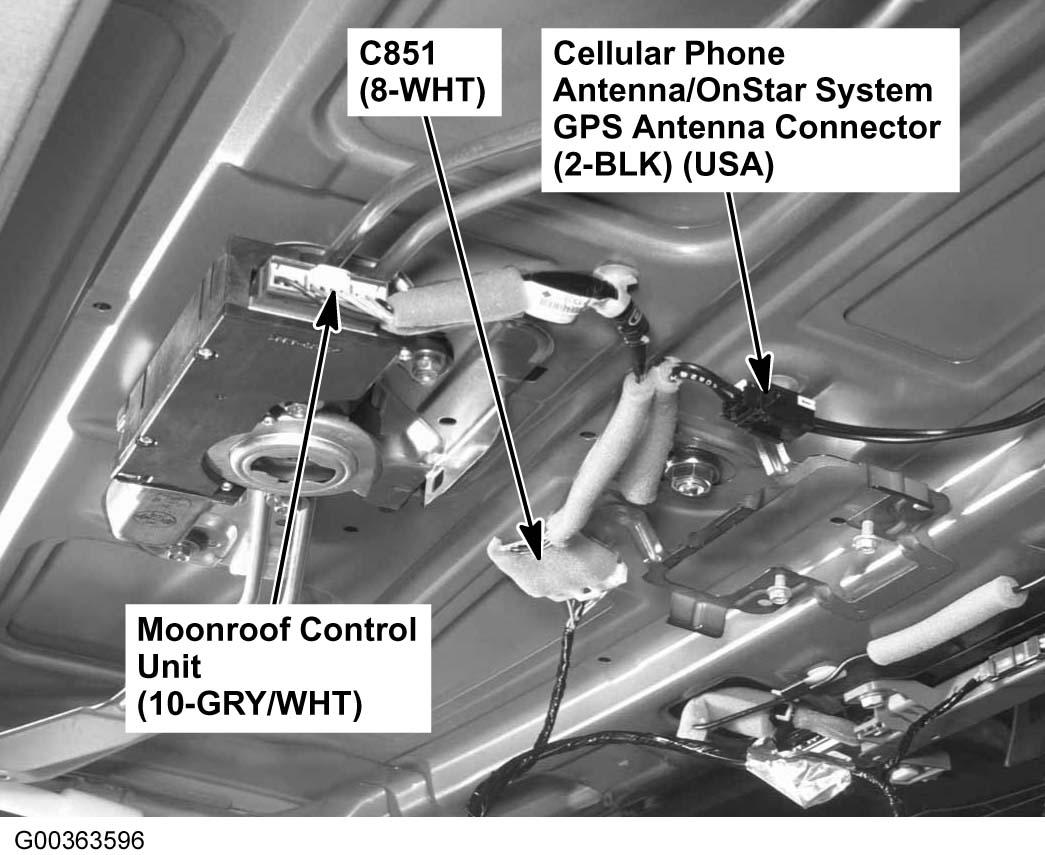

Fig 141: Rear Of Roof

G00363596

Courtesy of AMERICAN HONDA MOTOR CO., INC.

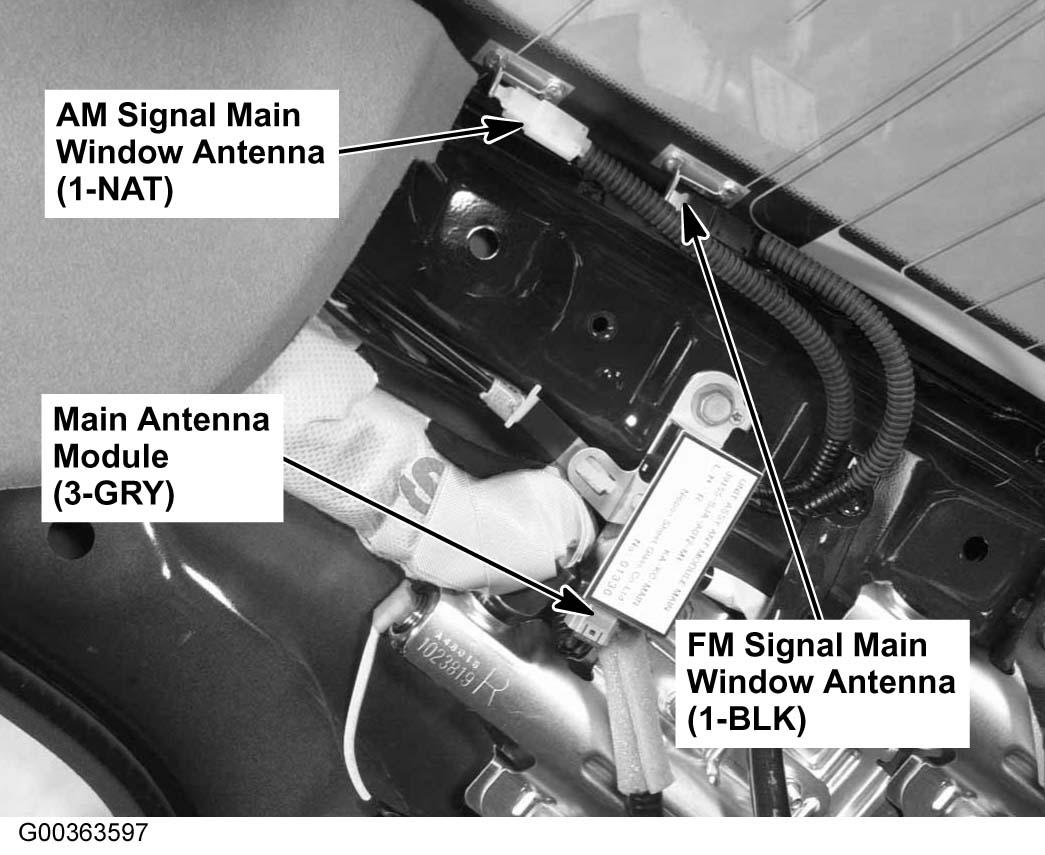

Fig 142: Right "C" Pillar

G00363597

Courtesy of AMERICAN HONDA MOTOR CO., INC.

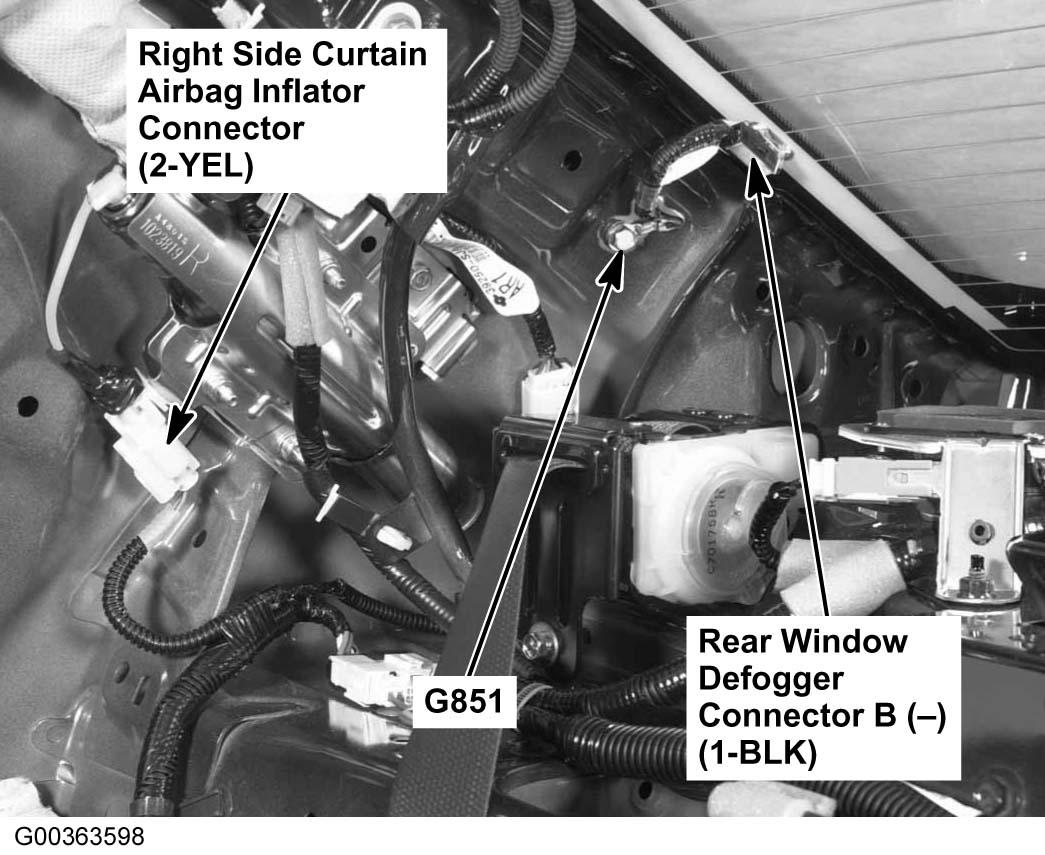

Fig 143: Right "C" Pillar

G00363598

Courtesy of AMERICAN HONDA MOTOR CO., INC.

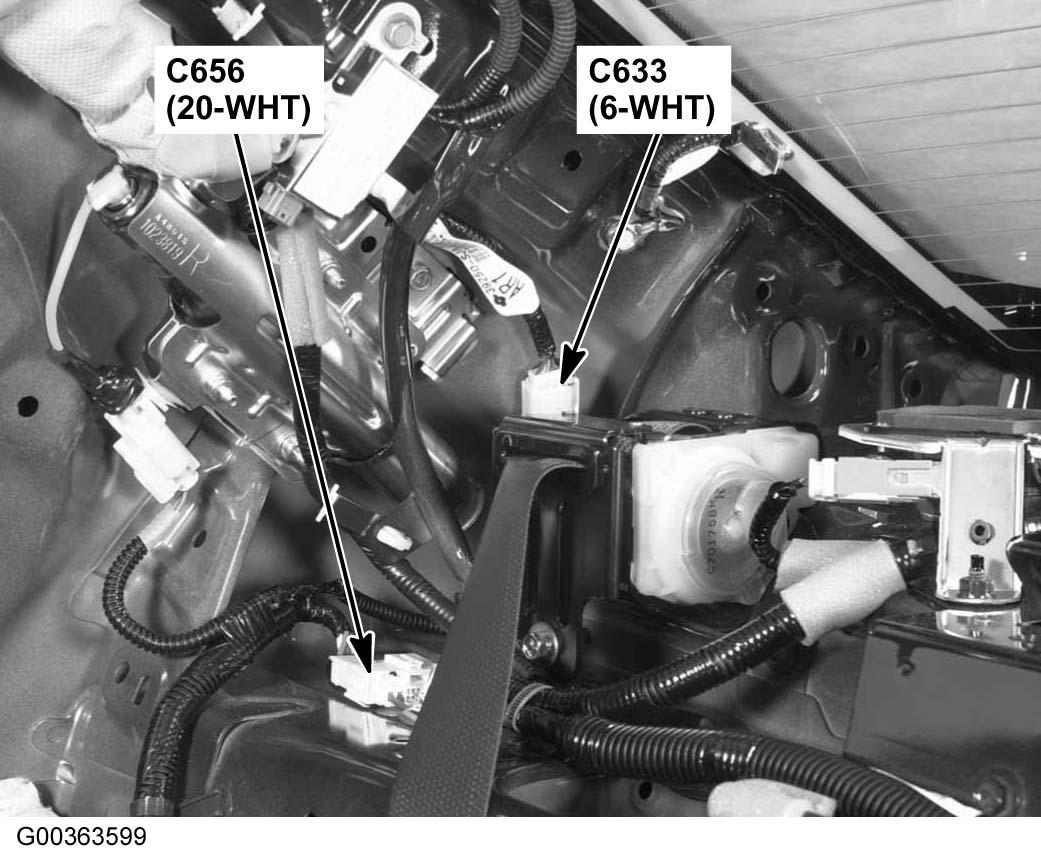

Fig 144: Right "C" Pillar

G00363599

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 145: Left "C" Pillar

G00363600

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Left "C" Pillar

G00363601

Courtesy of AMERICAN HONDA MOTOR CO., INC.

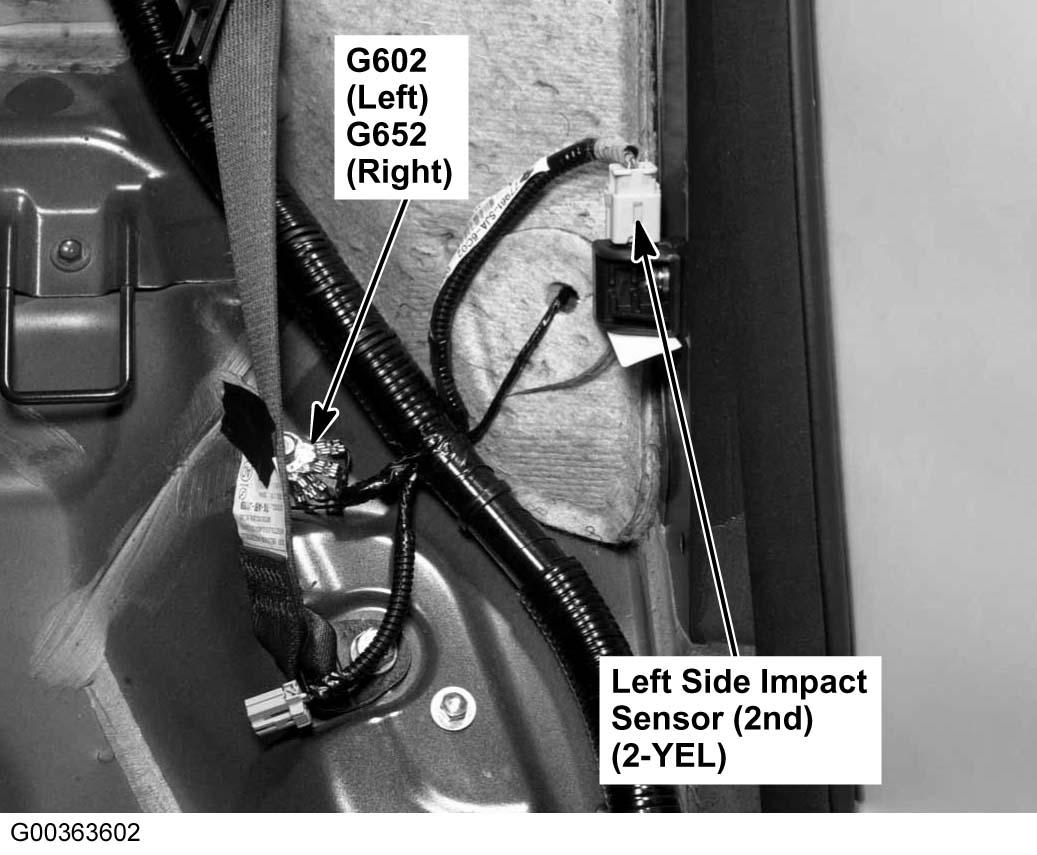

Fig 147: Left "C" Pillar (Right Similar)

G00363602

Courtesy of AMERICAN HONDA MOTOR CO., INC.

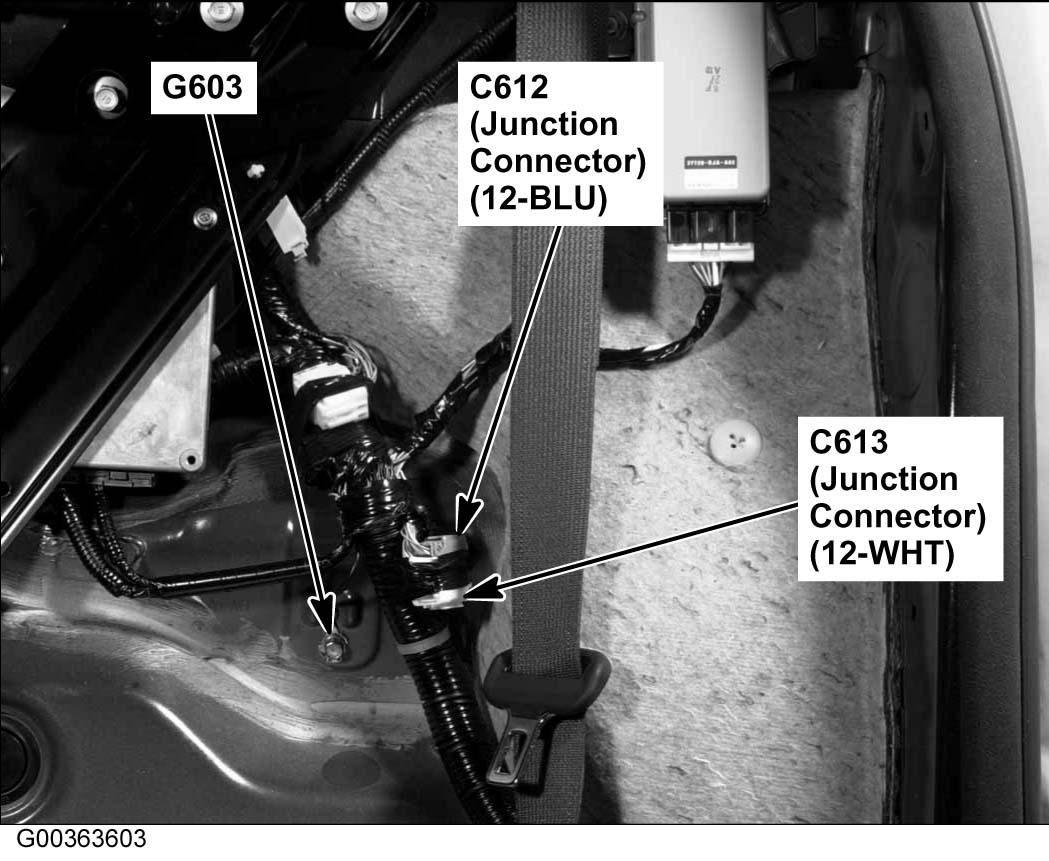

Fig 148: Left "C" Pillar

G00363603

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 149: Left "C" Pillar

G00363604

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 150: Behind Rear Seat

G00363605

Courtesy of AMERICAN HONDA MOTOR CO., INC.

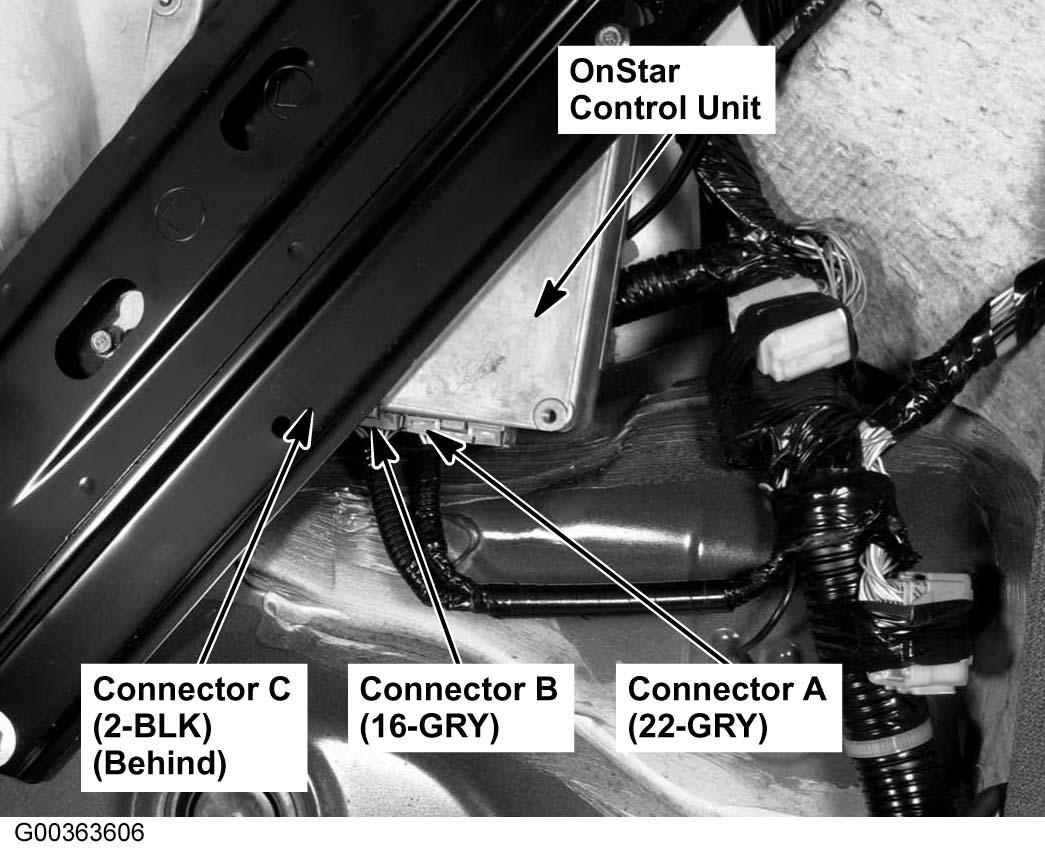

Fig 151: Behind Rear Seat (USA)

G00363606

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 152: Behind Rear Seat

G00363607

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 153: Behind Rear Seat

G00363608

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 154: Behind Rear Seat

G00363609

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Left Side Of Trunk

G00363610

Courtesy of AMERICAN HONDA MOTOR CO., INC.

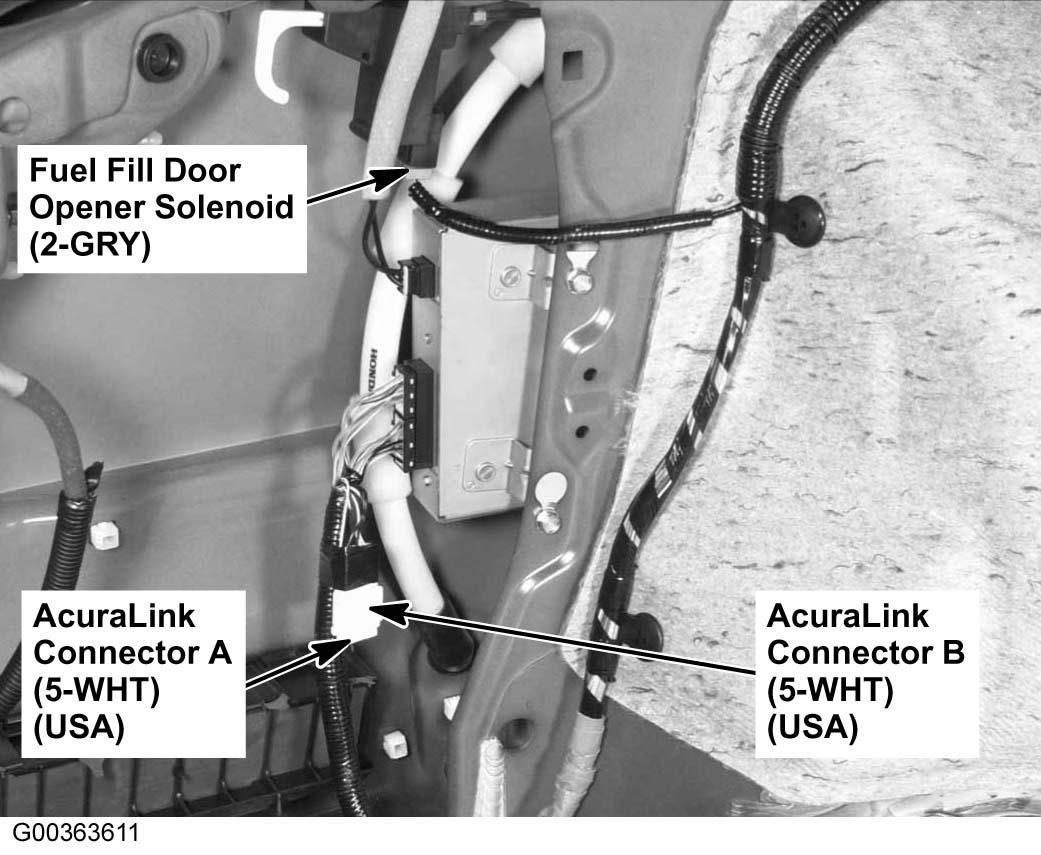

Fig 156: Left Side Of Trunk

G00363611

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 157: Left Side Of Trunk (USA)

G00363612

Courtesy of AMERICAN HONDA MOTOR CO., INC.

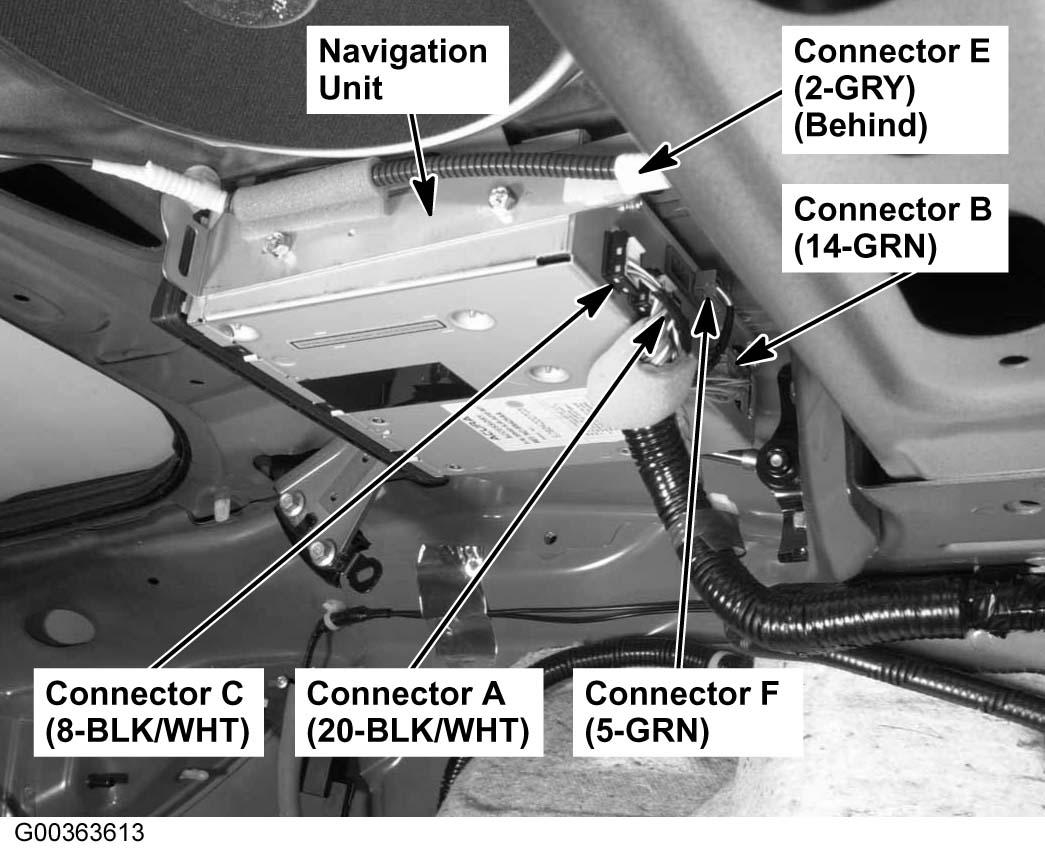

Fig 158: Left Side Of Rear Shelf

G00363613

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 159: Left Side Of Rear Shelf

G00363614

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 160: Middle Of Rear Shelf

G00363615

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 161: Middle Of Rear Shelf

G00363616

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 162: Middle Of Rear Shelf

G00363617

Courtesy of AMERICAN HONDA MOTOR CO., INC.

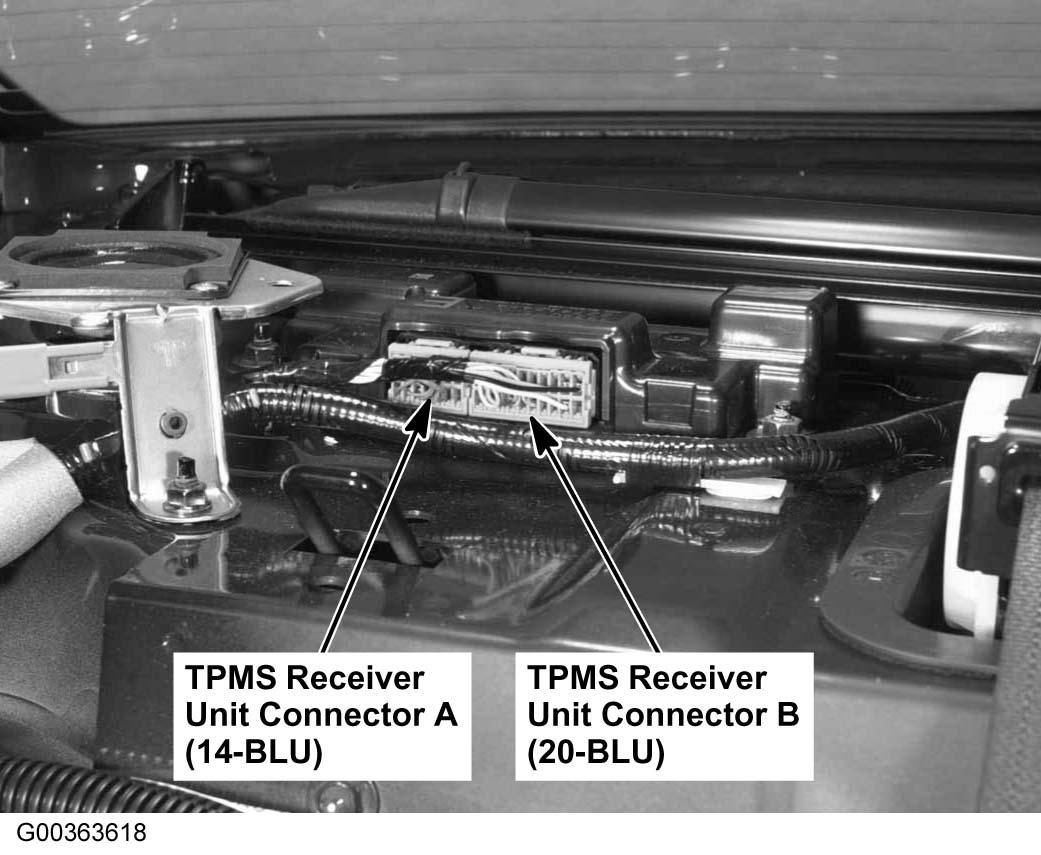

Fig 163: Right Side Of Rear Shelf

G00363618

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 164: Right Side Of Trunk

G00363620

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 165: Right Side Of Trunk

G00363621

Courtesy of AMERICAN HONDA MOTOR CO., INC.

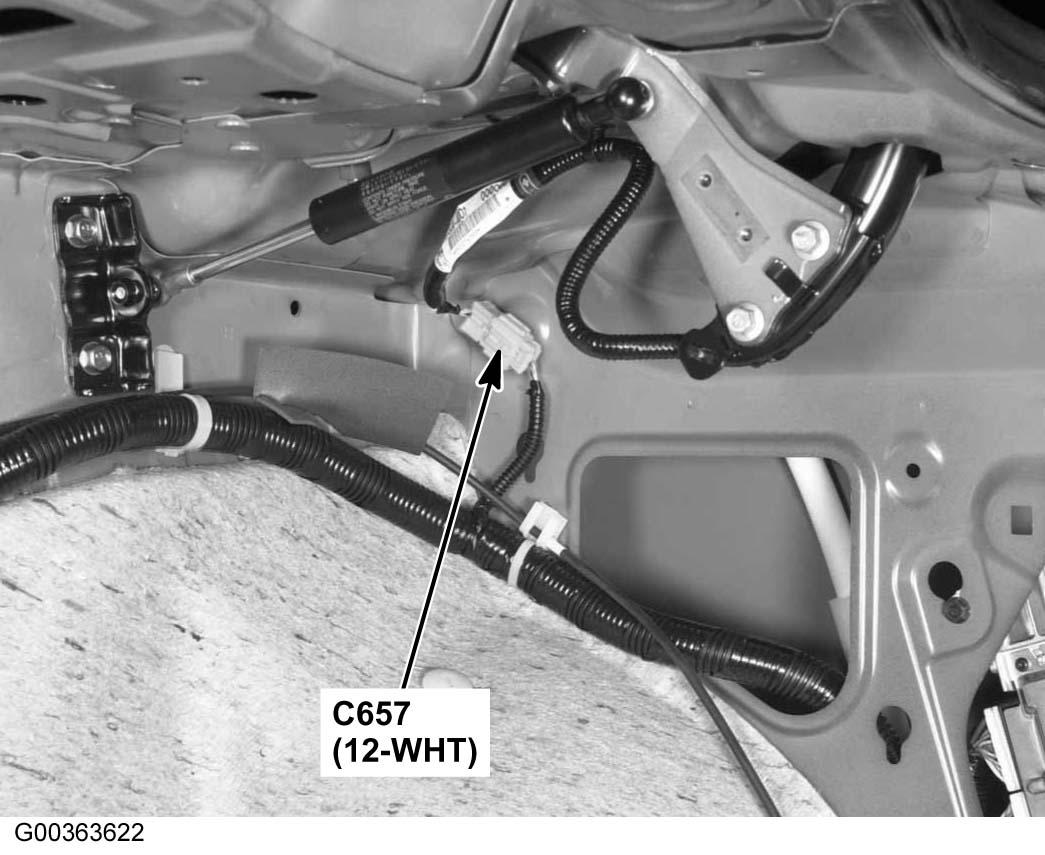

Fig 166: Right Side Of Trunk

G00363622

Courtesy of AMERICAN HONDA MOTOR CO., INC.

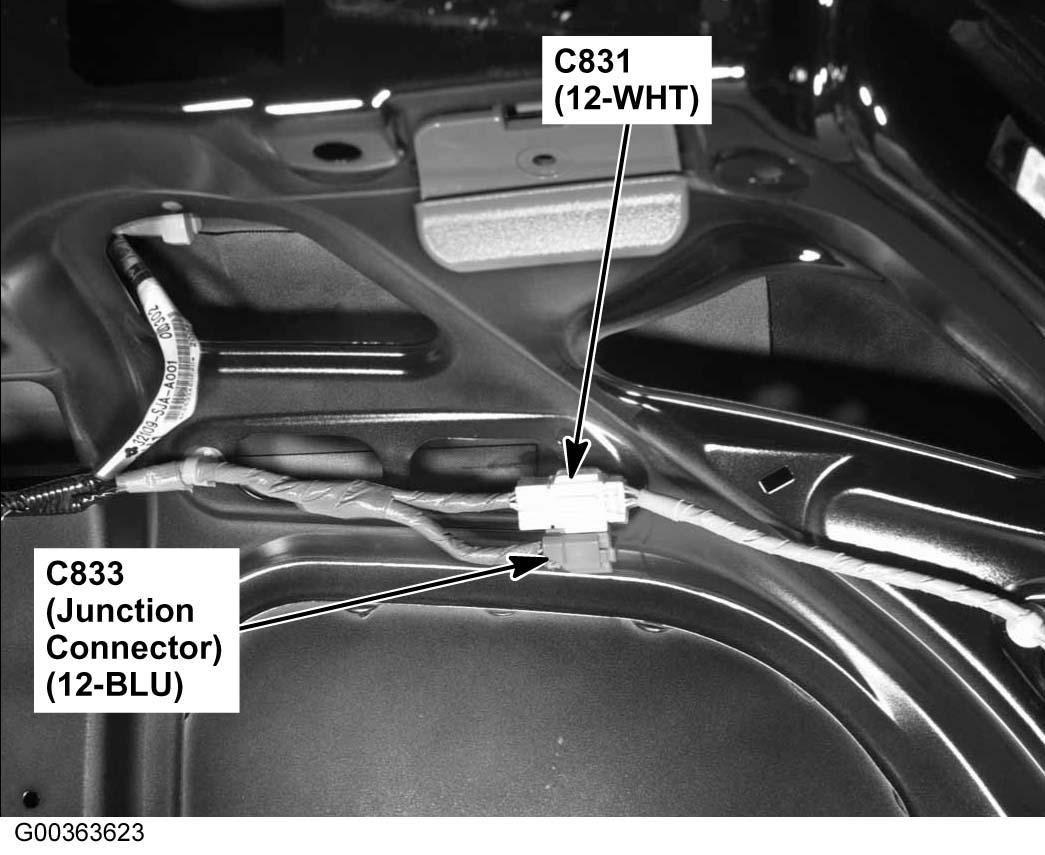

Fig 167: Middle Of Trunk

G00363623

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 168: Behind Middle Of Rear Bumper

G00363624

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 169: Behind Right Side Of Front Bumper

G00363625

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 170: Behind Right Side Of Front Bumper

G00363626

Courtesy of AMERICAN HONDA MOTOR CO., INC.

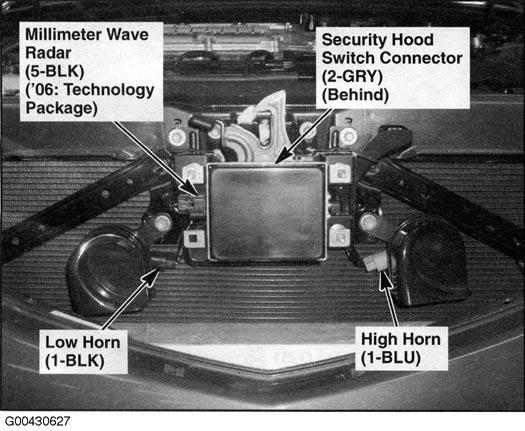

Fig 171: Behind Middle Of Front Bumper

G00430627

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 172: Behind Middle Of Front Bumper

G00363628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 173: Behind Left Side Of Front Bumper (Right Similar)

G00363629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 174: Behind Left Side Of Front Bumper

G00363630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

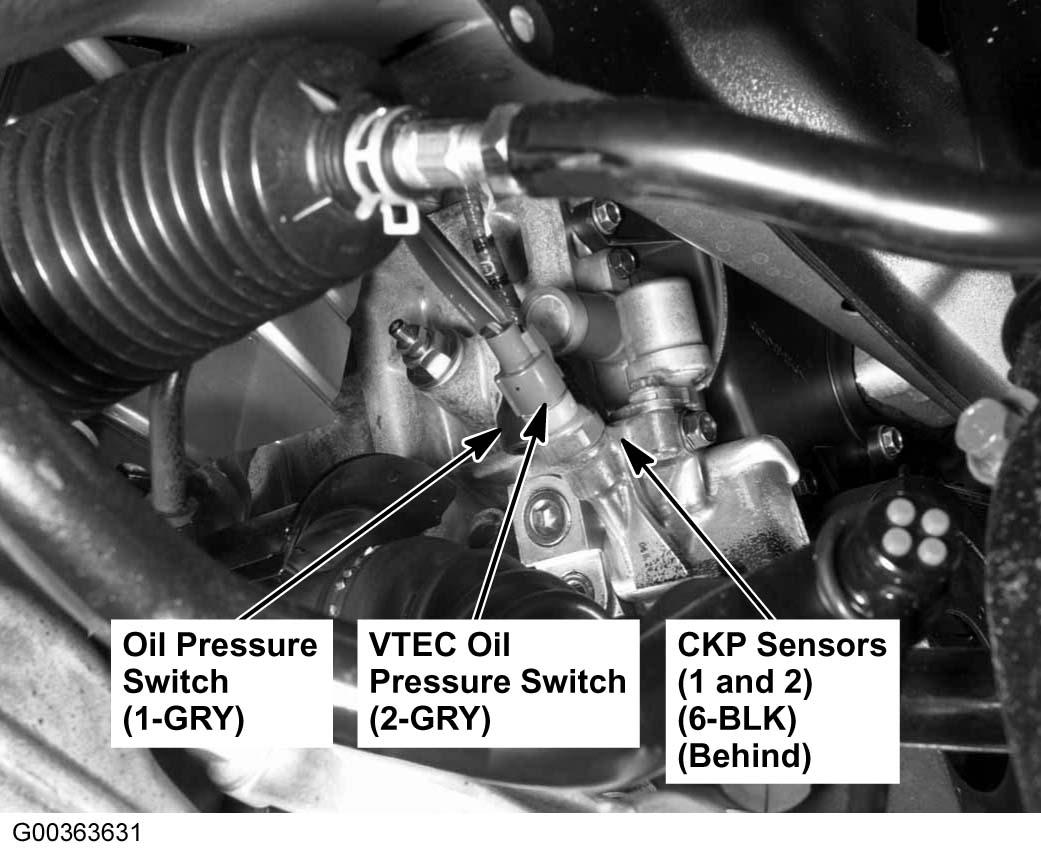

Fig 175: Right Side Of Engine

G00363631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

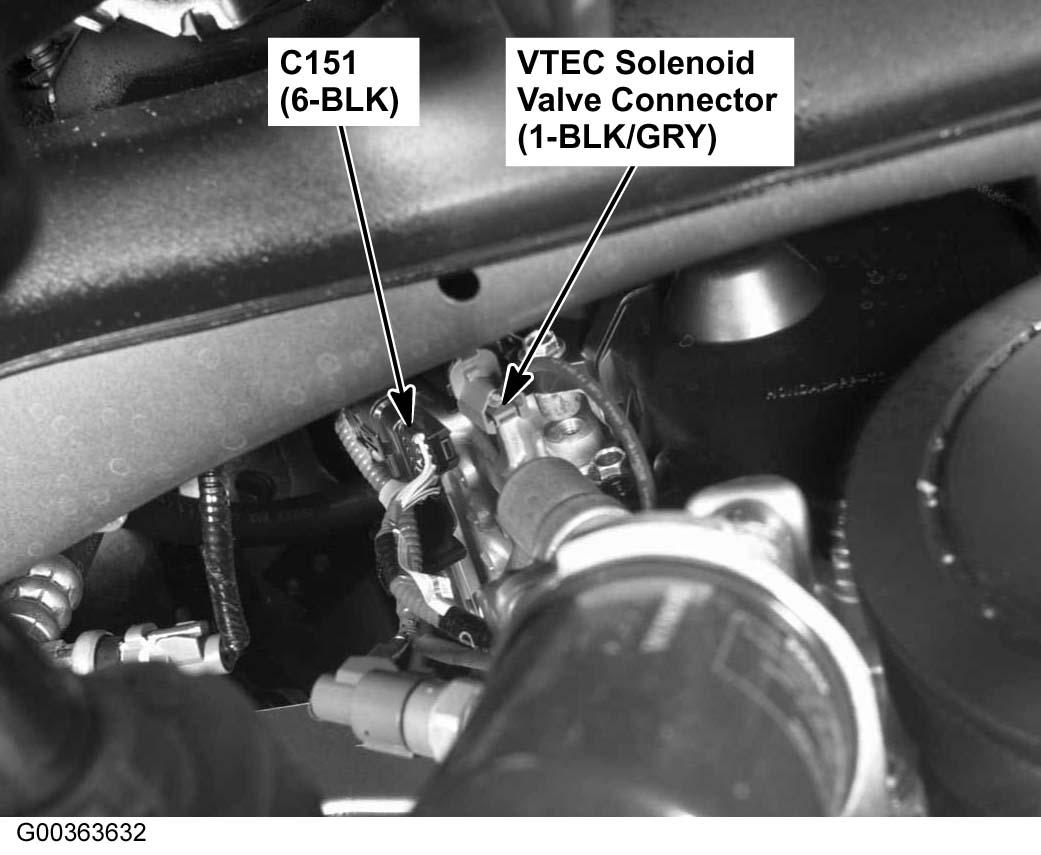

Fig 176: Right Side Of Engine

G00363632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 177: Right Side Of Engine Compartment

G00363633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 178: Right Side Of Engine Compartment

G00363634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 179: Middle Of Engine Compartment

G00363635

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 180: Left Side Of Engine Compartment

G00363636

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 181: Left Side Of Engine Compartment

G00363637

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 182: Transmission Housing

G00363638

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 183: Left Rear Fenderwell (Right Similar)

G00363639

Courtesy of AMERICAN HONDA MOTOR CO., INC.

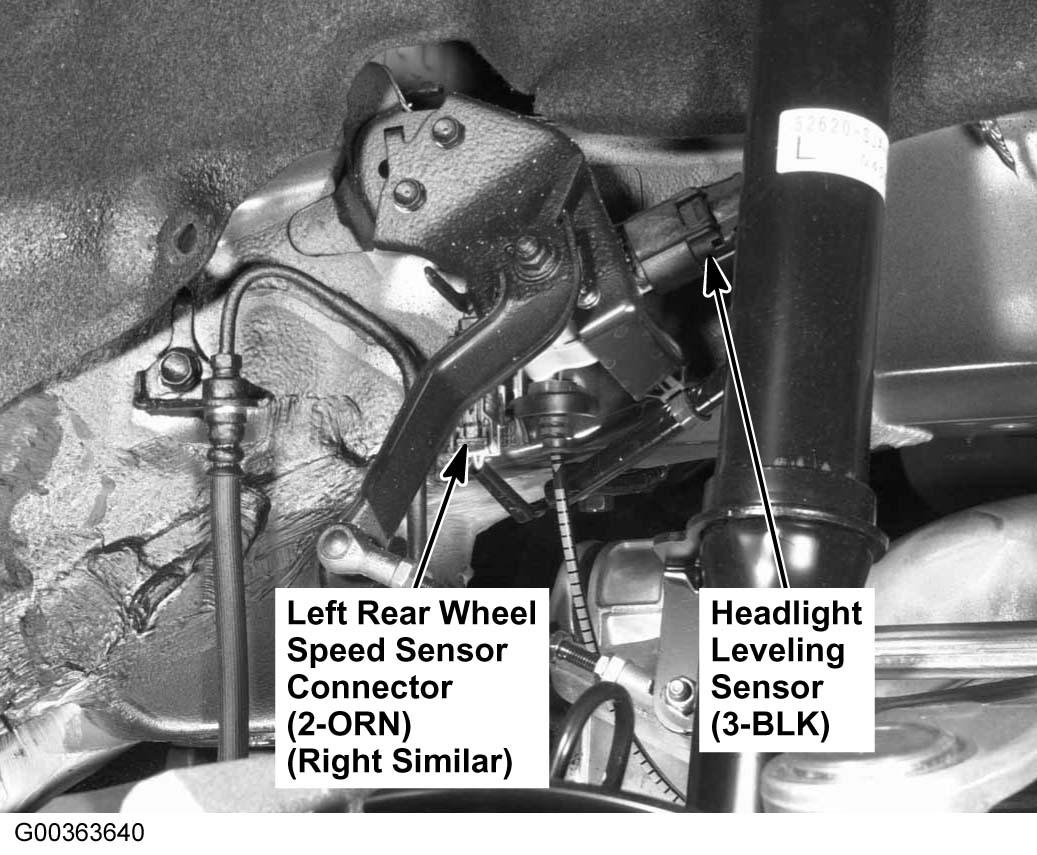

Fig 184: Under Left Rear Of Vehicle

G00363640

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 185: Rear Differential

G00363641

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 186: Rear Differential

G00363642

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 187: Rear Differential

G00363643

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 188: Rear Differential

G00363644

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 189: Rear Differential

G00363645

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 190: Above Rear Differential

G00363646

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 191: Left Rear Of Engine Compartment

G00363648

Courtesy of AMERICAN HONDA MOTOR CO., INC.

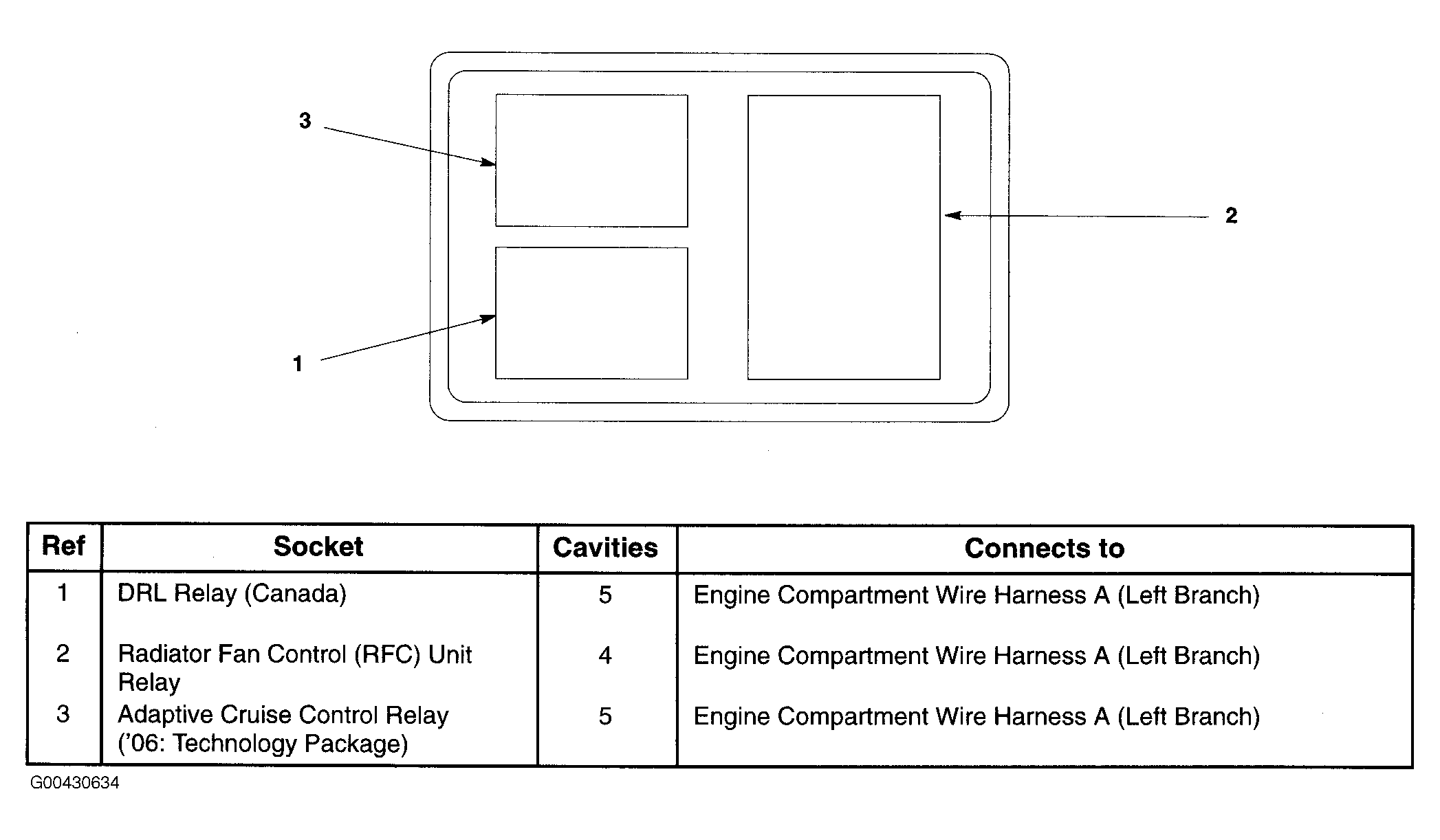

Fig 192: Left Rear Of Engine Compartment

G00430634

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 193: Behind Left Kick Panel

G00363650

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 194: Behind Right Kick Panel

G00363651

Courtesy of AMERICAN HONDA MOTOR CO., INC.

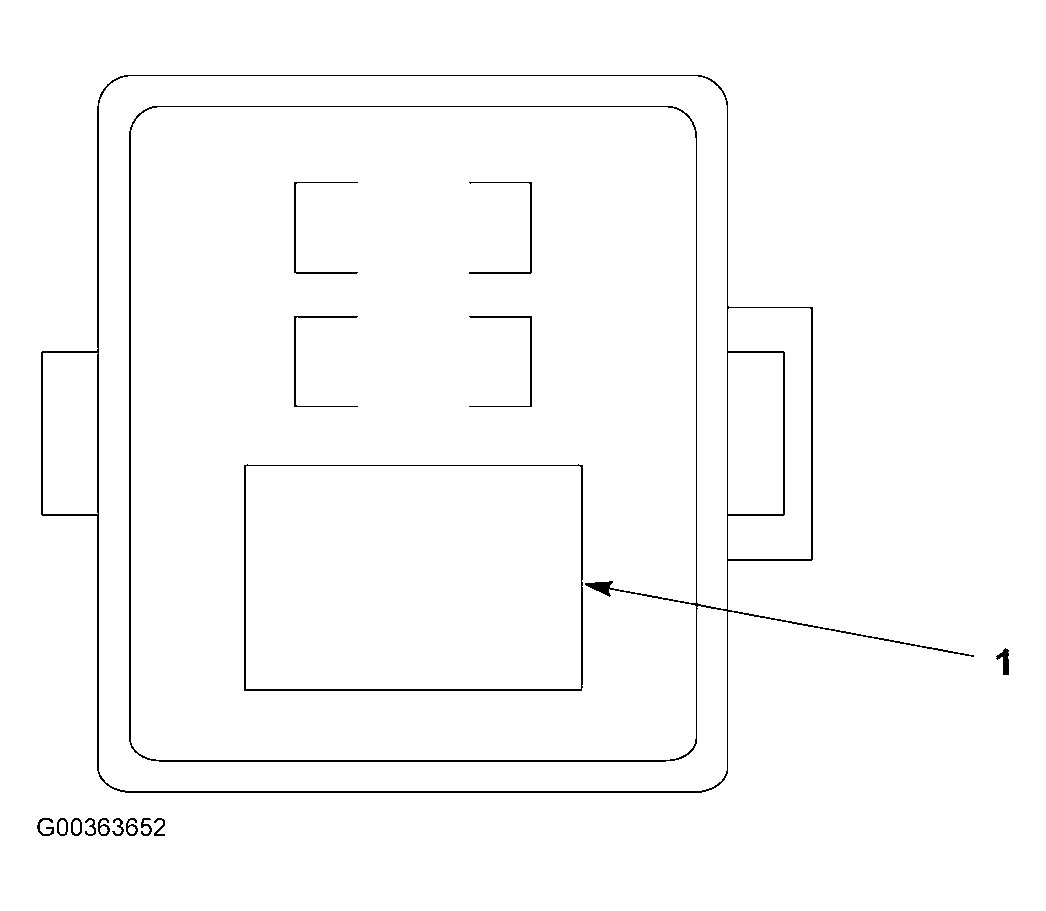

Fig 195: Under Left Side Of Dash (2005)

G00363652

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 196: Under Left Side Of Dash

G00363653

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 197: Left Side Of Engine Compartment (2006)

G00430628

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 198: Under Left Side Of Dash (2006)

G00430629

Courtesy of AMERICAN HONDA MOTOR CO., INC.

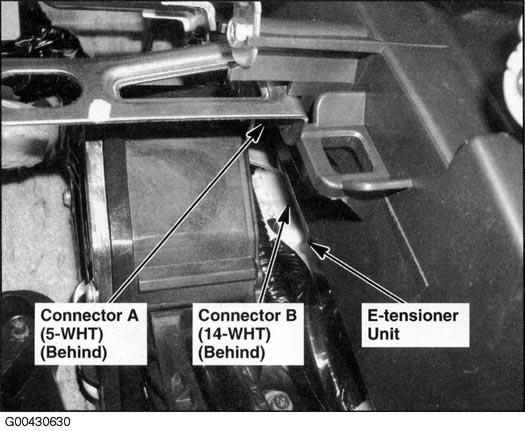

Fig 199: Under Middle Of Dash (2006)

G00430630

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 200: Under Middle Of Dash (2006)

G00430631

Courtesy of AMERICAN HONDA MOTOR CO., INC.

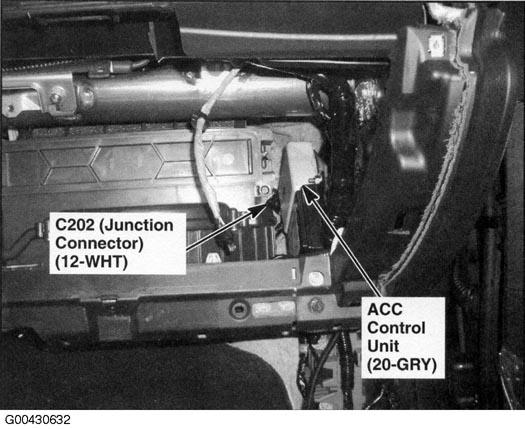

Fig 201: Behind Right Side Of Glove Box (2006)

G00430632

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 202: Behind Right Kick Panel (2006)

G00430633

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 203: Under Left Side Of Dash (2006)

G00430635

Courtesy of AMERICAN HONDA MOTOR CO., INC.
