Wheel Sensor Replacement: Rear

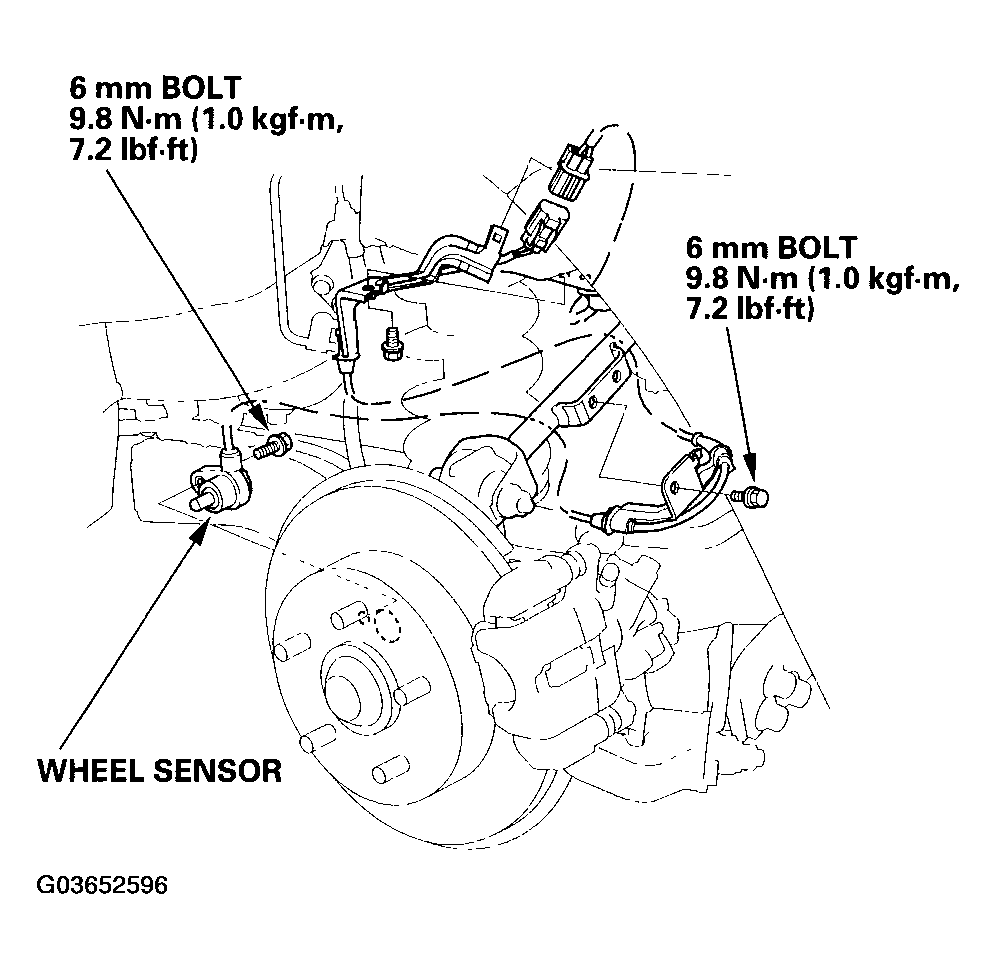

Fig 1: Installing Wheel Sensor Carefully To Avoid Twisting Wires And Torque Specifications (Rear)
G03652596Courtesy of AMERICAN HONDA MOTOR CO., INC.
