Ignition Timing Inspection

Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 in HOW TO USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ), and check for DTCs. If a DTC is present, diagnose and repair the cause before inspecting the ignition timing.
Start the engine. Hold the engine speed at 3,000 rpm with no load (in park or neutral) until the radiator fan comes on, then let it idle.
Check the idle speed (see IDLE SPEED INSPECTION ).
Select the SCS mode with the HDS.
Remove the right side engine compartment cover (see step 1 in DRIVE BELT INSPECTION ).
Connect the timing light to the No.1 ignition coil harness.

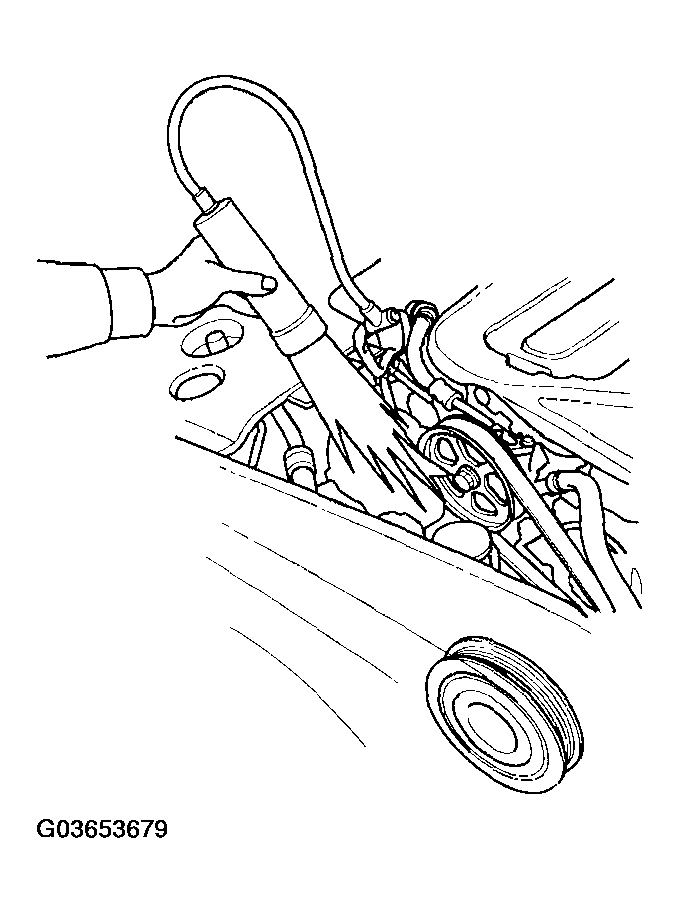

Fig 1: Connecting Timing Light To No.1 Ignition Coil Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Aim the light toward the pointer (A) on the timing belt cover. Check the ignition timing under a no load condition, (headlights, blower fan, rear window defogger, and air conditioner are turned off).
Ignition Timing
- M/T: 10° +/- 2° BTDC (RED mark (B)) at idle in Neutral
- A/T: 10° +/- 2° BTDC (RED mark (B)) at idle in Park or Neutral

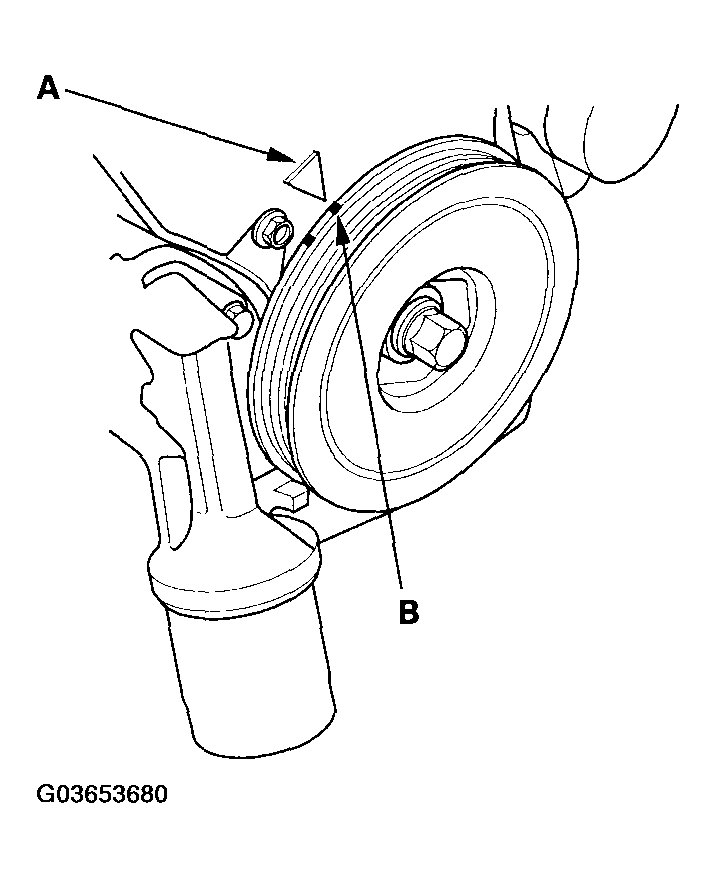

Fig 2: Aiming Light Toward Pointer (A) On Timing Belt Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the ignition timing differs from the specification, check the cam timing. If the cam timing is OK, update the engine control module (ECM)/ powertrain control module (PCM) if it does not have the latest software (see HOW TO UPDATE THE ECM/PCM ), or substitute a known-good ECM/PCM (see HOW TO SUBSTITUTE THE ECM/PCM ), then recheck. If the system works properly, and the ECM/PCM was substituted, replace the original ECM/PCM (see ECM/PCM REPLACEMENT ).
Disconnect the HDS and the timing light.
Reinstall the right side engine compartment cover (see step 1 in DRIVE BELT INSPECTION ).
