IAT Sensor Replacement

  1. Remove the intake manifold cover (see step 1 on REMOVAL ).
  2. Disconnect the IAT sensor 2P connector (A).

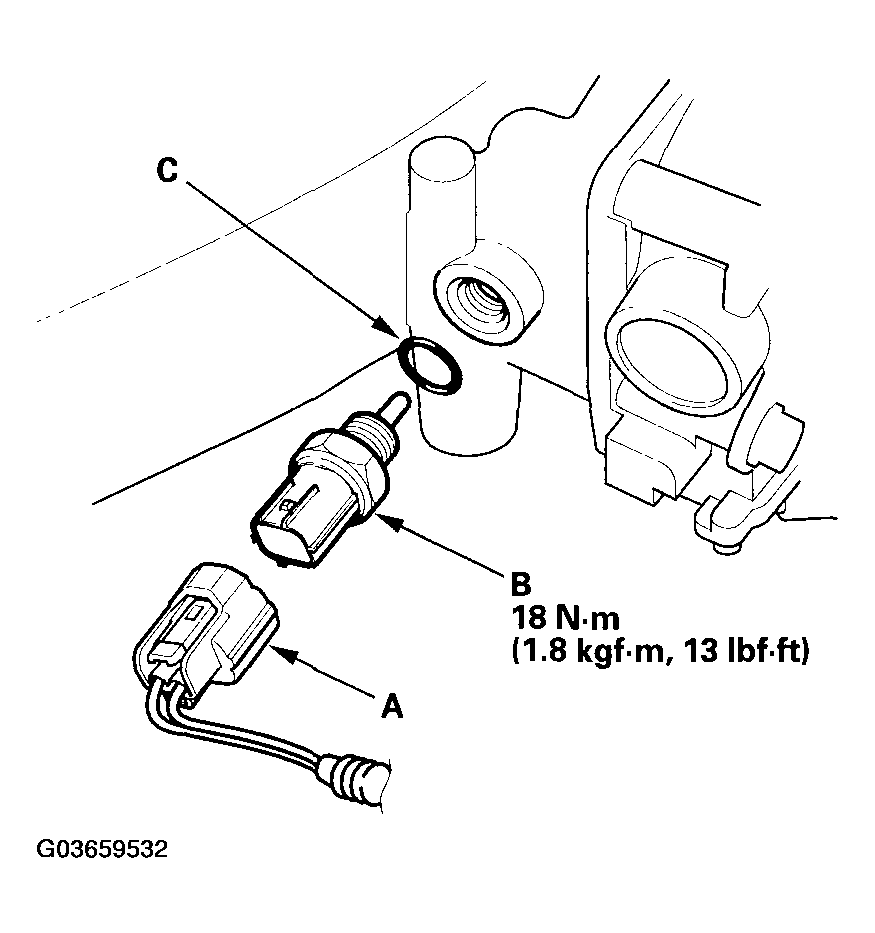

    Fig 1: Disconnecting IAT Sensor 2P Connector
    G03659532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the IAT sensor (B).
  4. Install the sensor in the reverse order of removal with a new O-ring (C).
