Electronic Brake Control Module

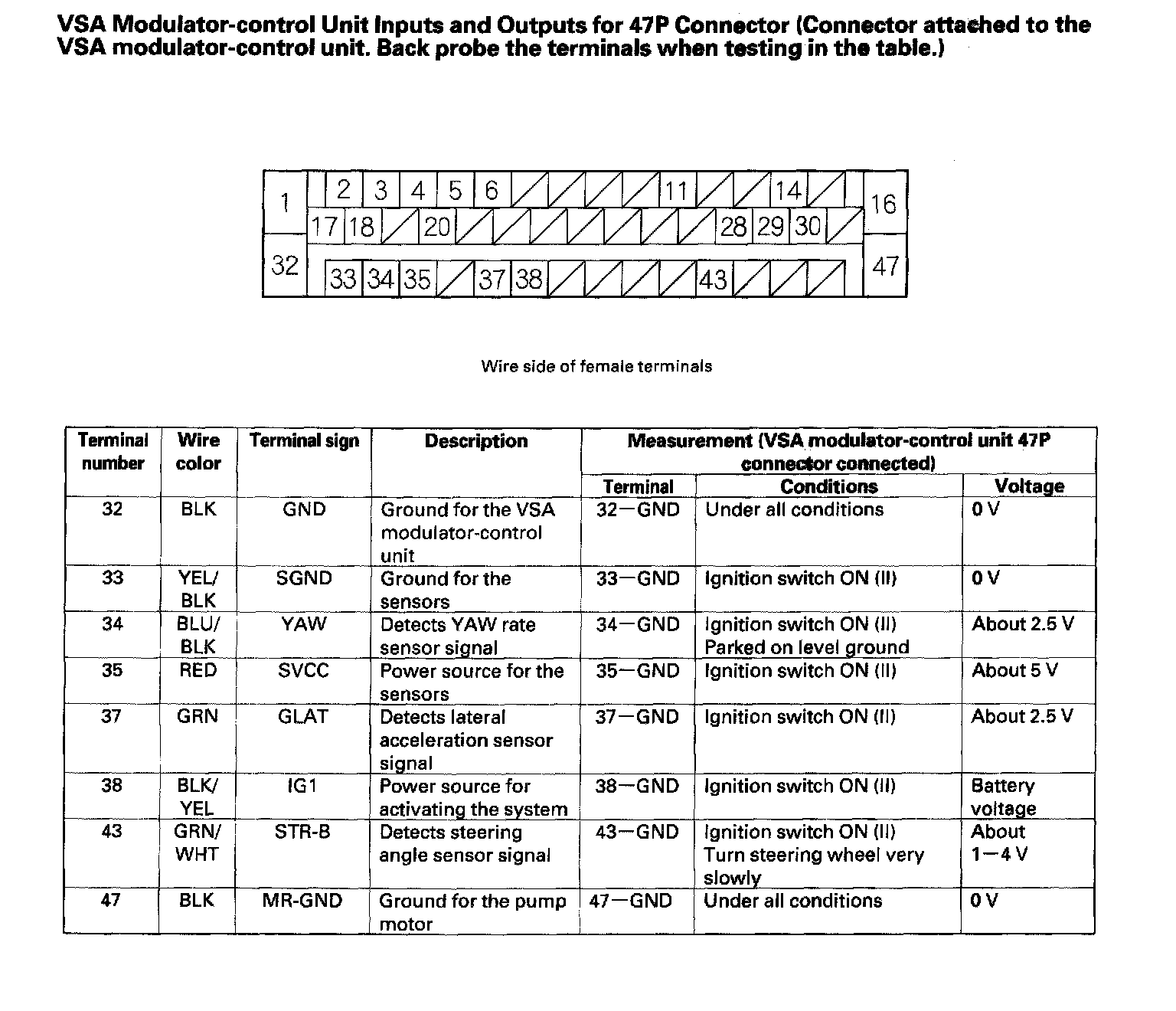

VSA Modulator-control Unit Inputs and Outputs for 47P Connector:

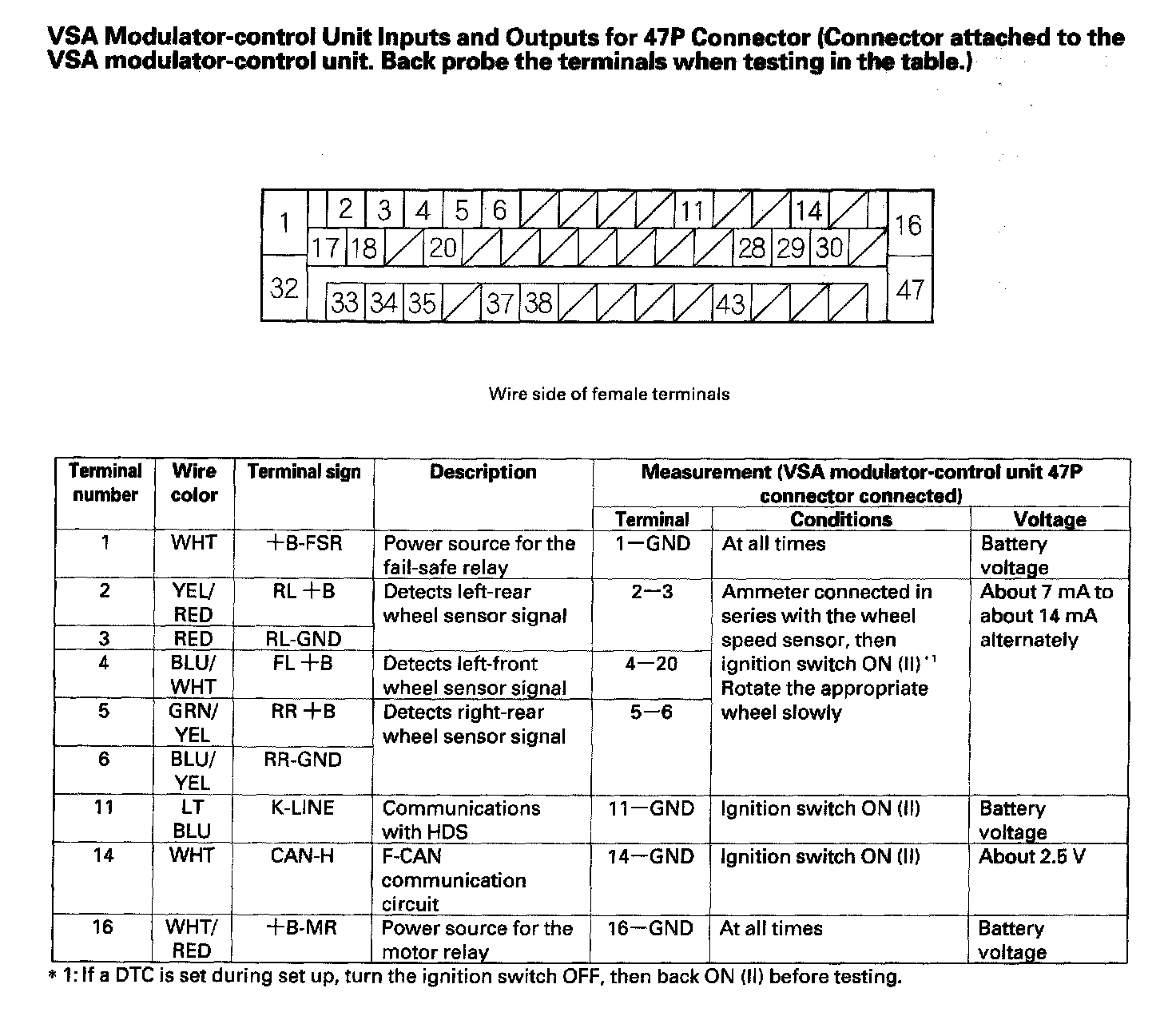

VSA Modulator-control Unit Inputs and Outputs for 47P Connector:

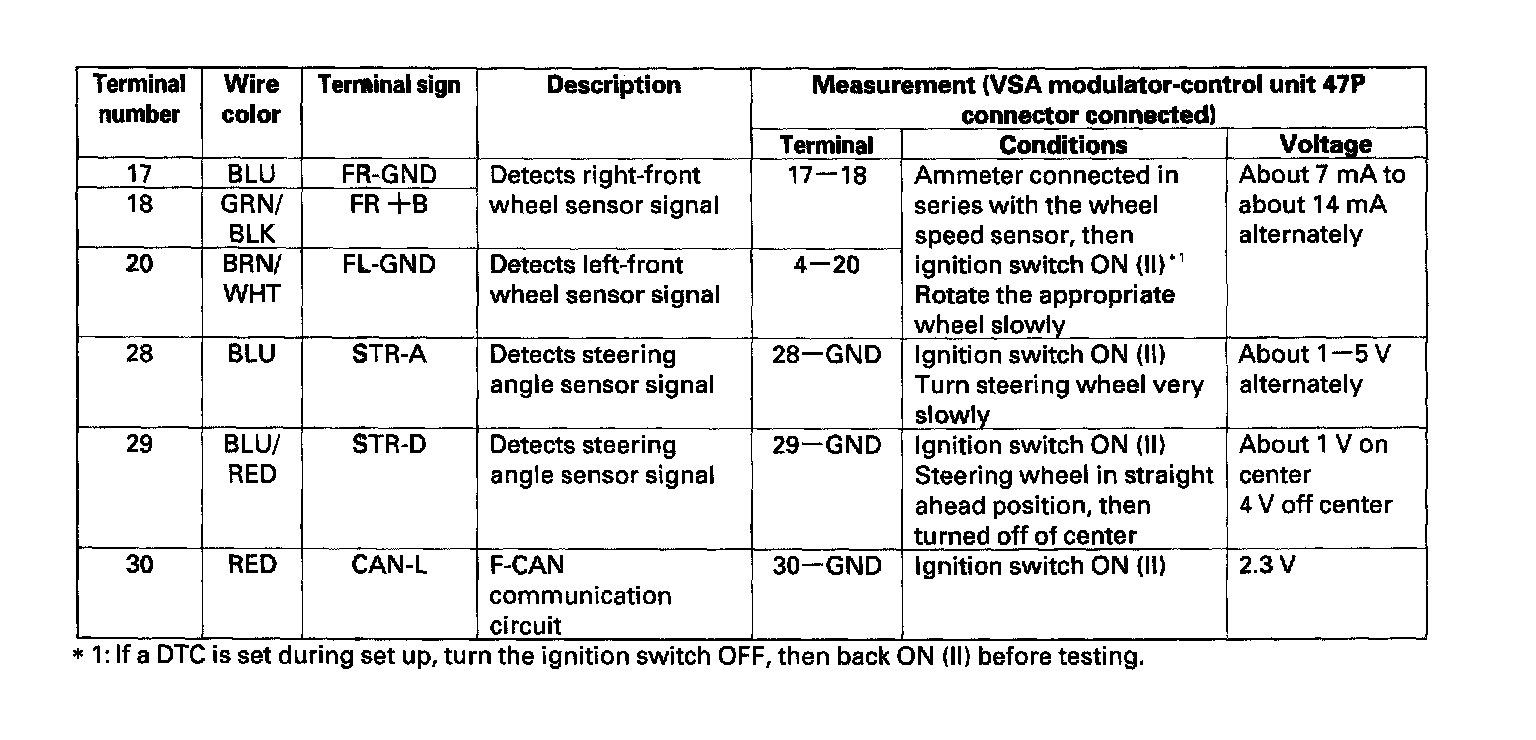

VSA Modulator-control Unit Inputs and Outputs for 47P Connector:
