Impact Sensor

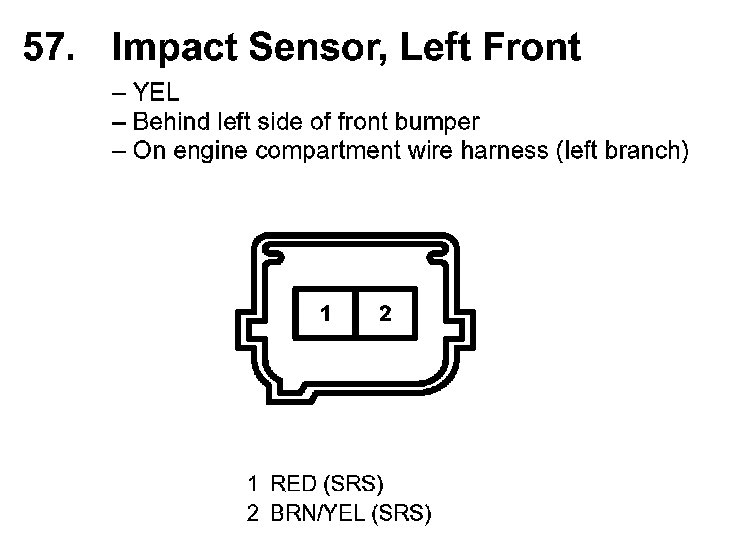

57. Impact Sensor, Left Front:

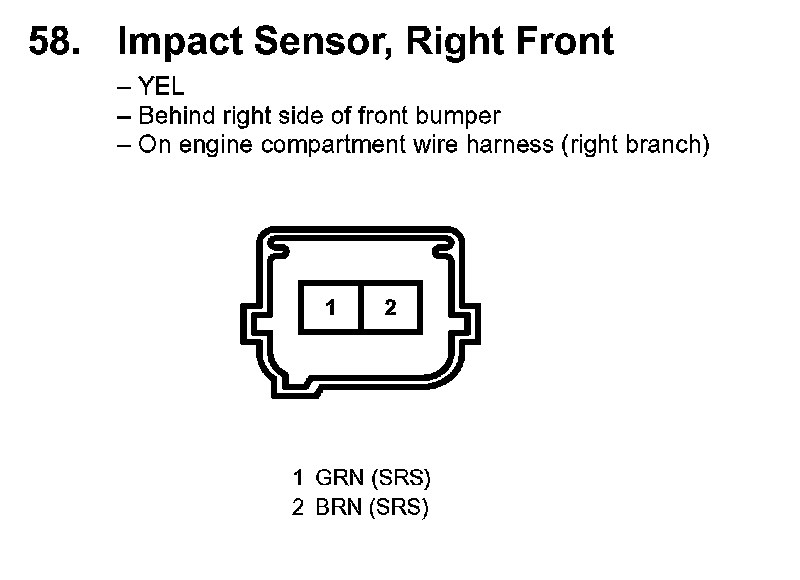

58. Impact Sensor, Right Front:

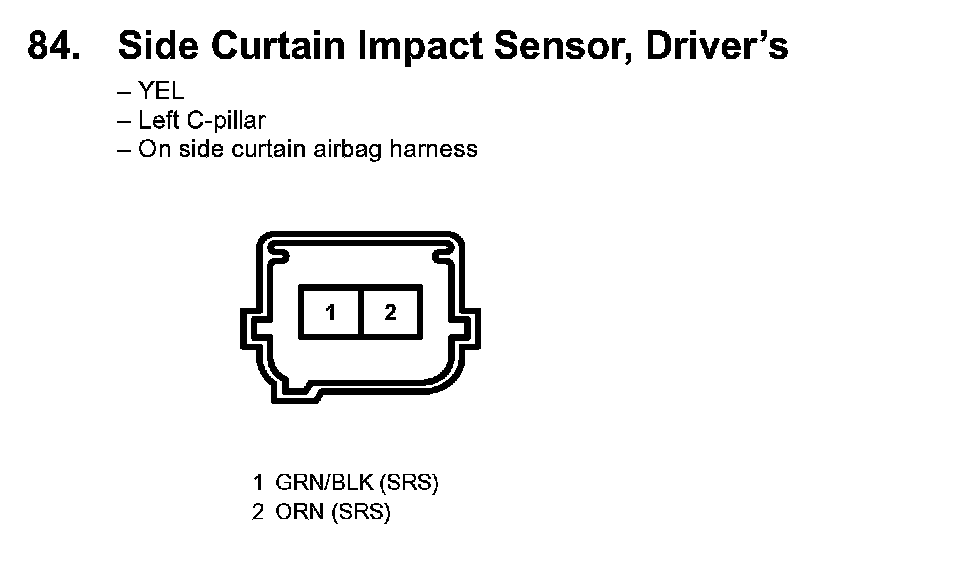

84. Side Curtain Impact Sensor, Driver's:

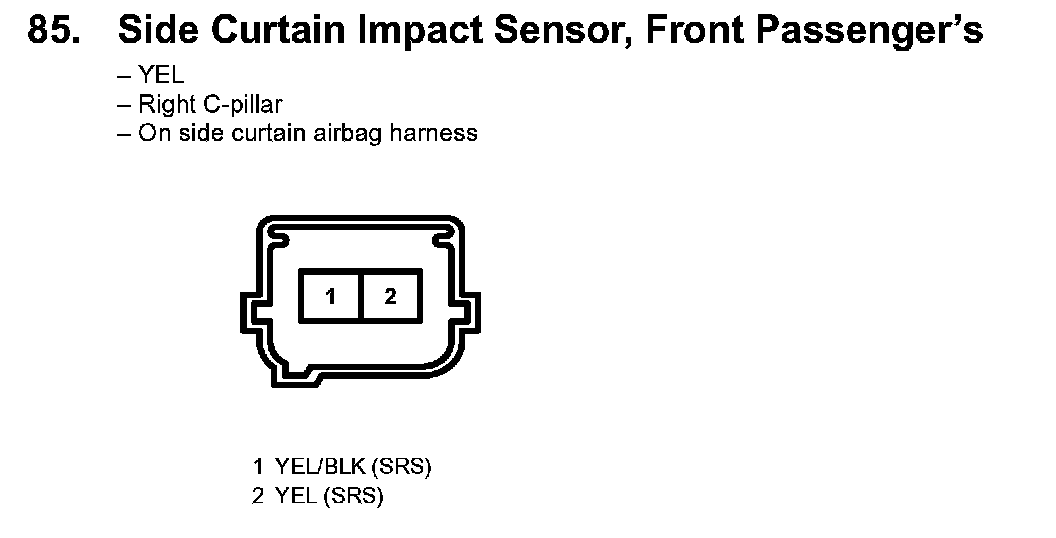

85. Side Curtain Impact Sensor, Front Passenger's:

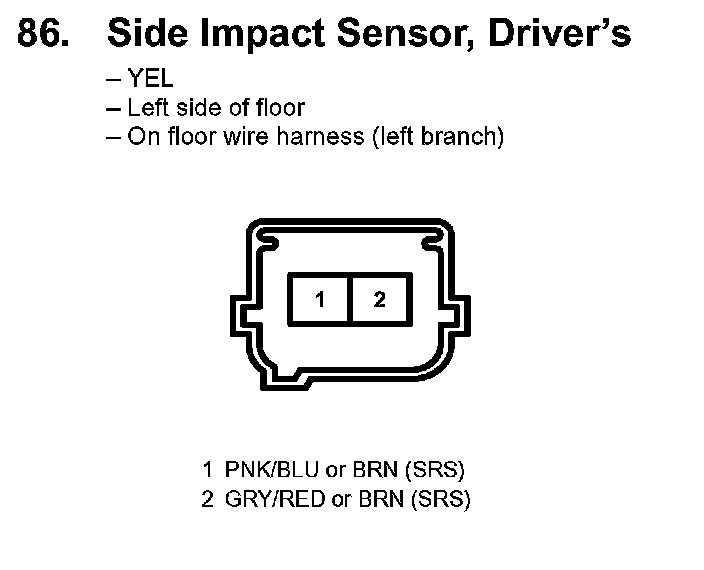

86. Side Impact Sensor, Driver's:

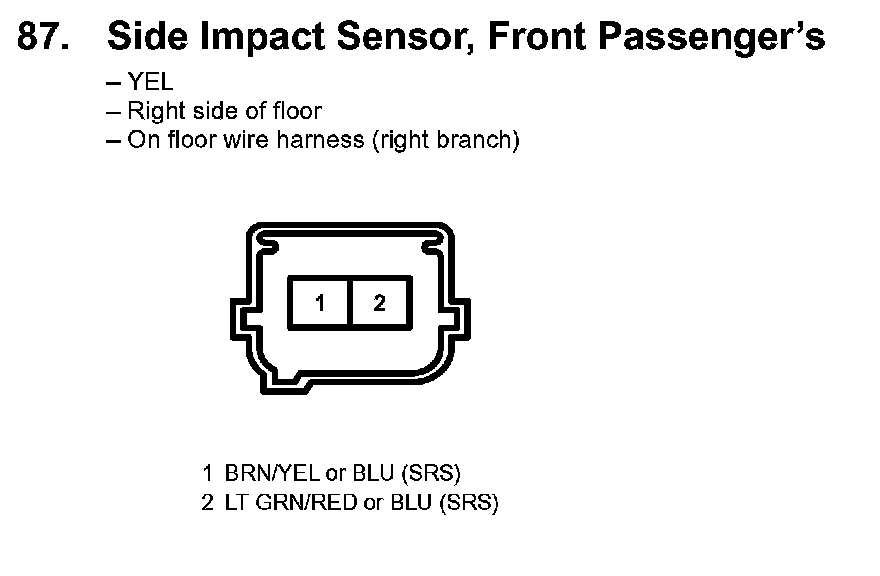

87. Side Impact Sensor, Front Passenger's:
