Heating and Air Conditioning: Locations

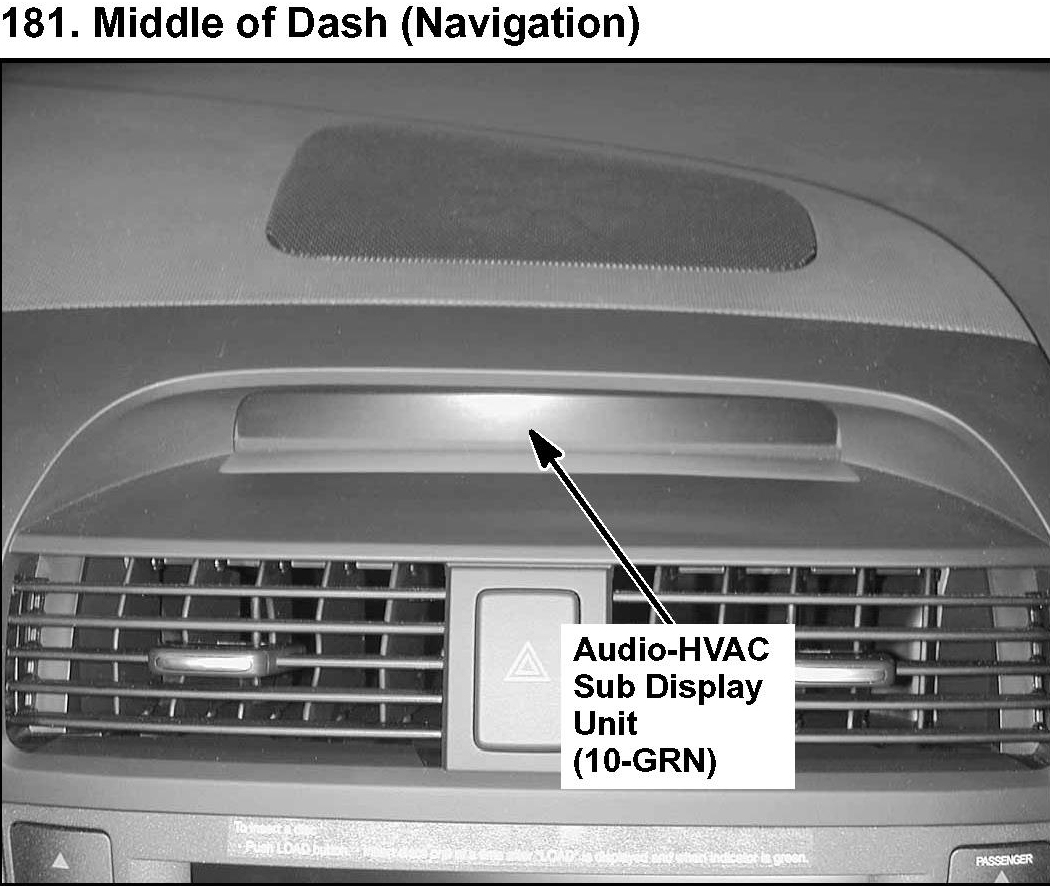

181. Middle Of Dash (Navigation):

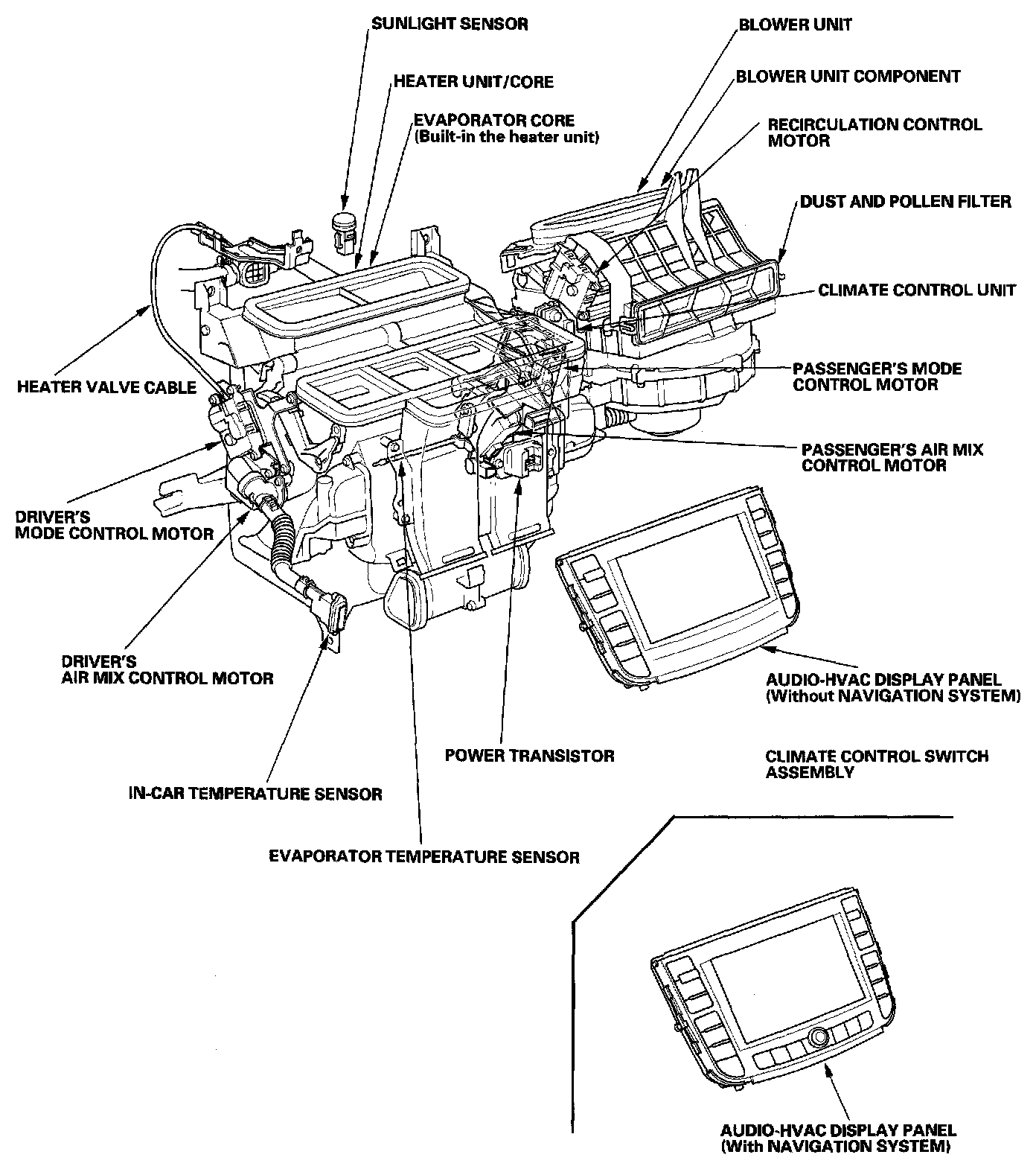

Climate Control - Component Location Index:

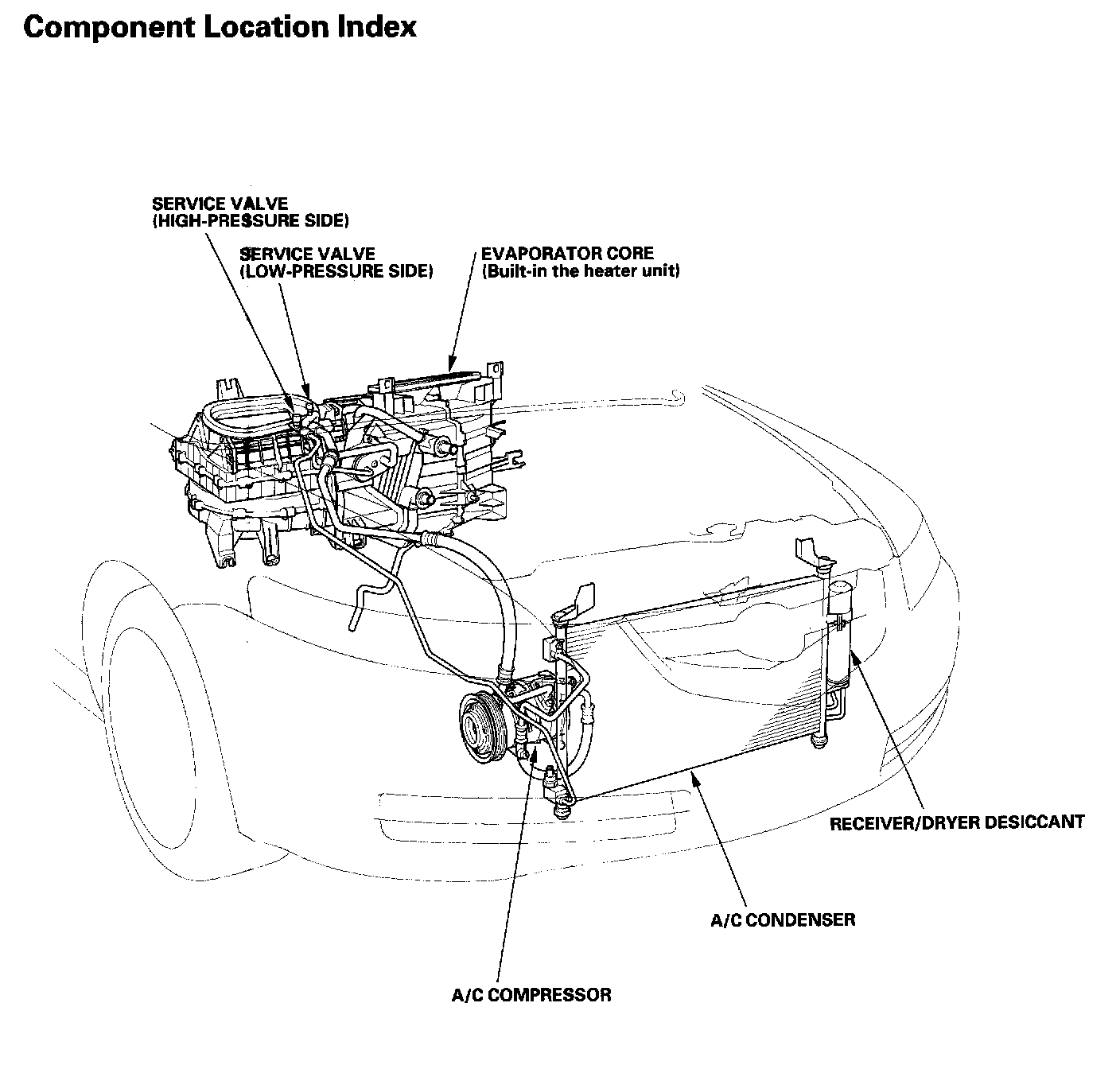

Climate Control - Component Location Index:



Climate Control - Component Location Index:
