Pinout Values and Diagnostic Parameters

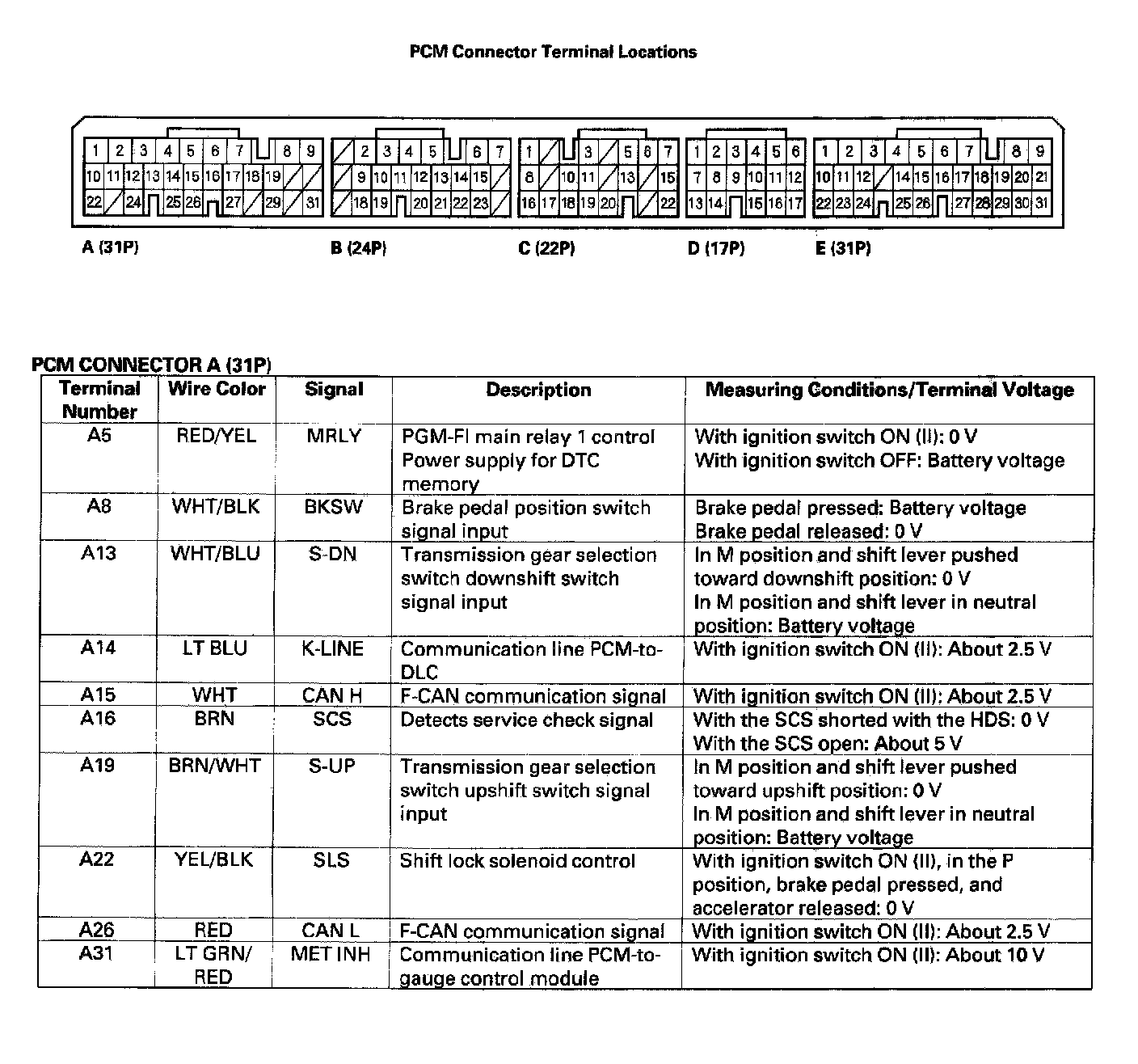

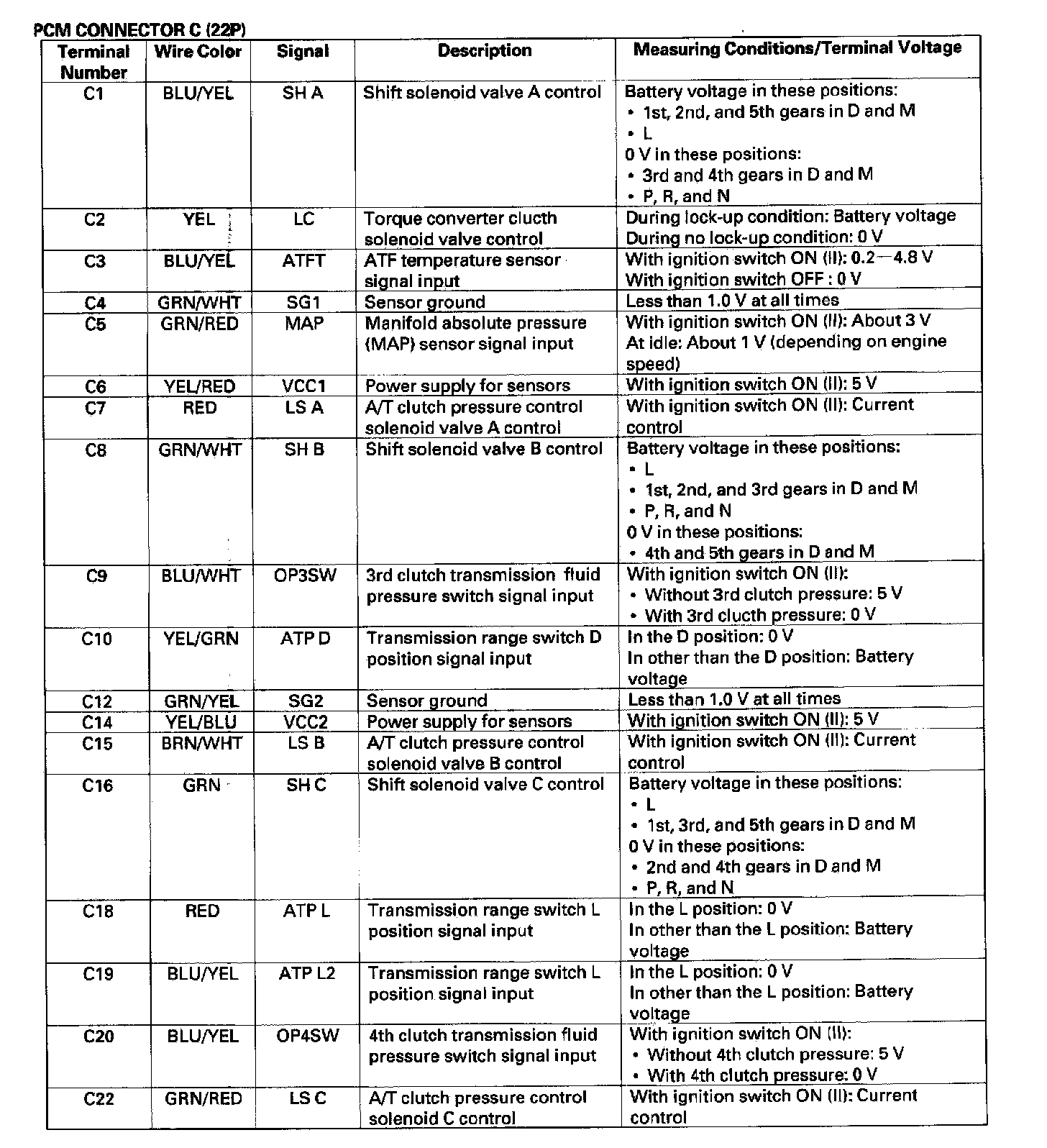

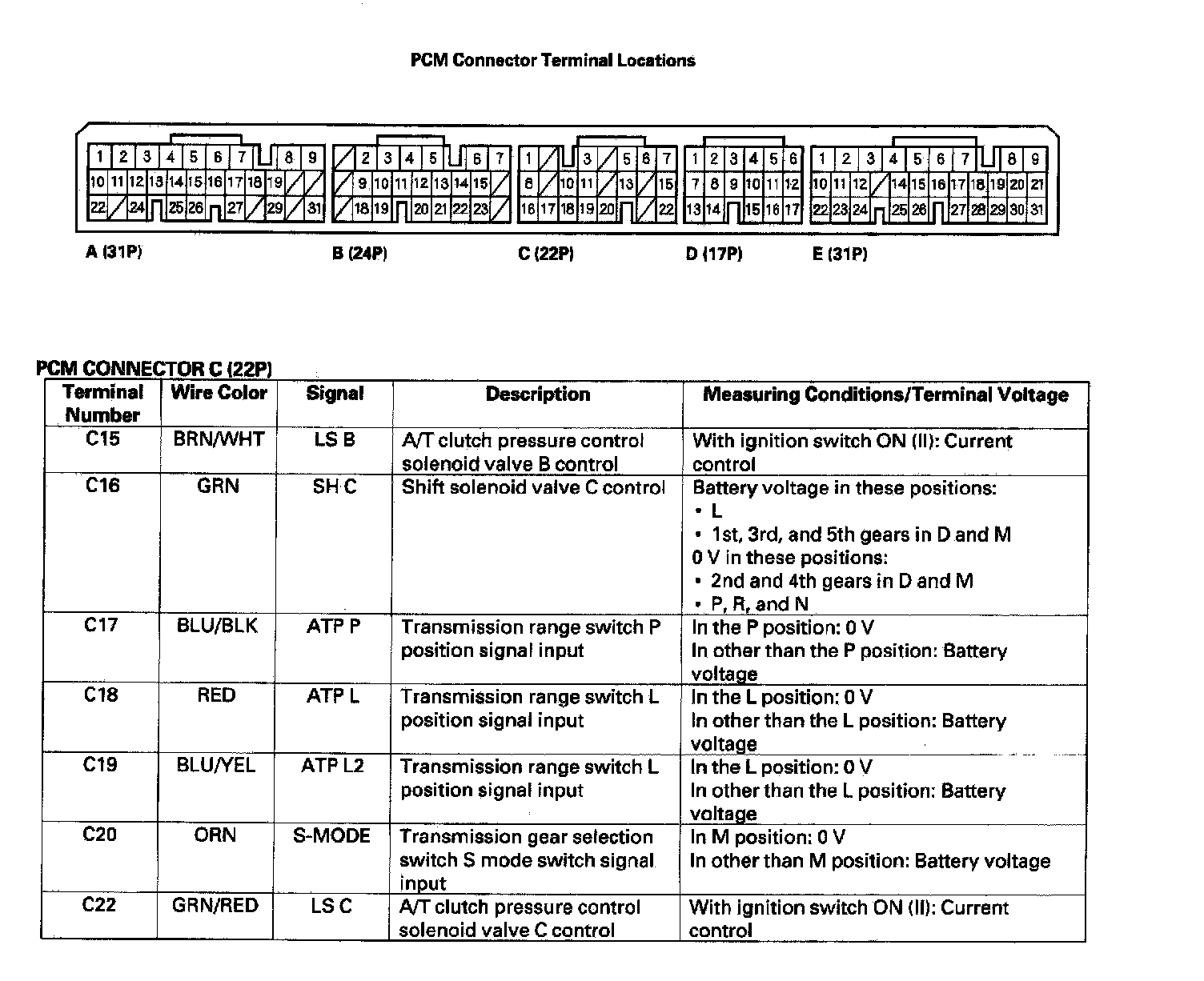

PCM Inputs and Outputs - 2004-2005 Models:

PCM Inputs and Outputs - 2004-2005 Models:

PCM Inputs and Outputs - 2004-2005 Models:

PCM Inputs and Outputs - 2004-2005 Models:

PCM Inputs and Outputs - 2004-2005 Models

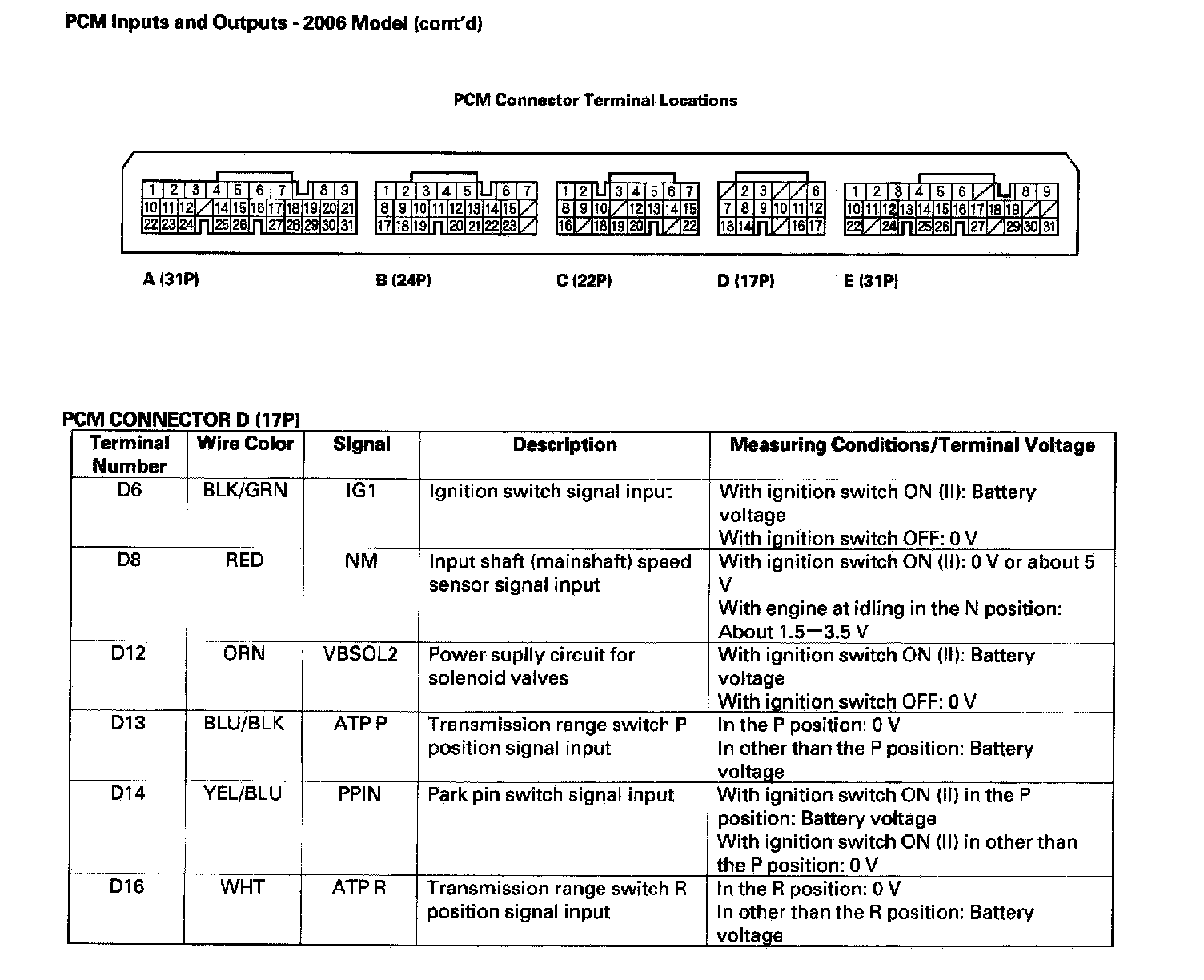

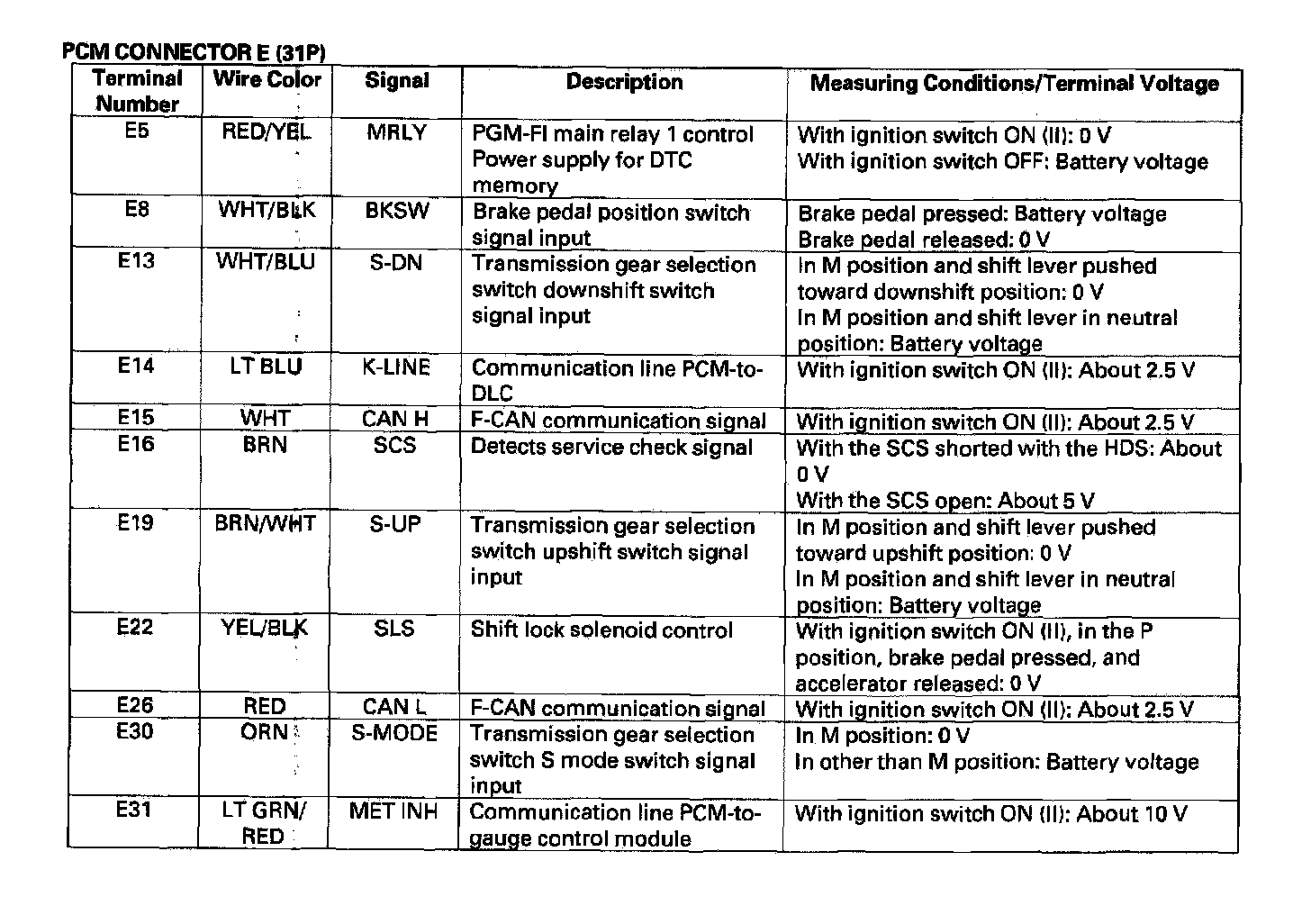

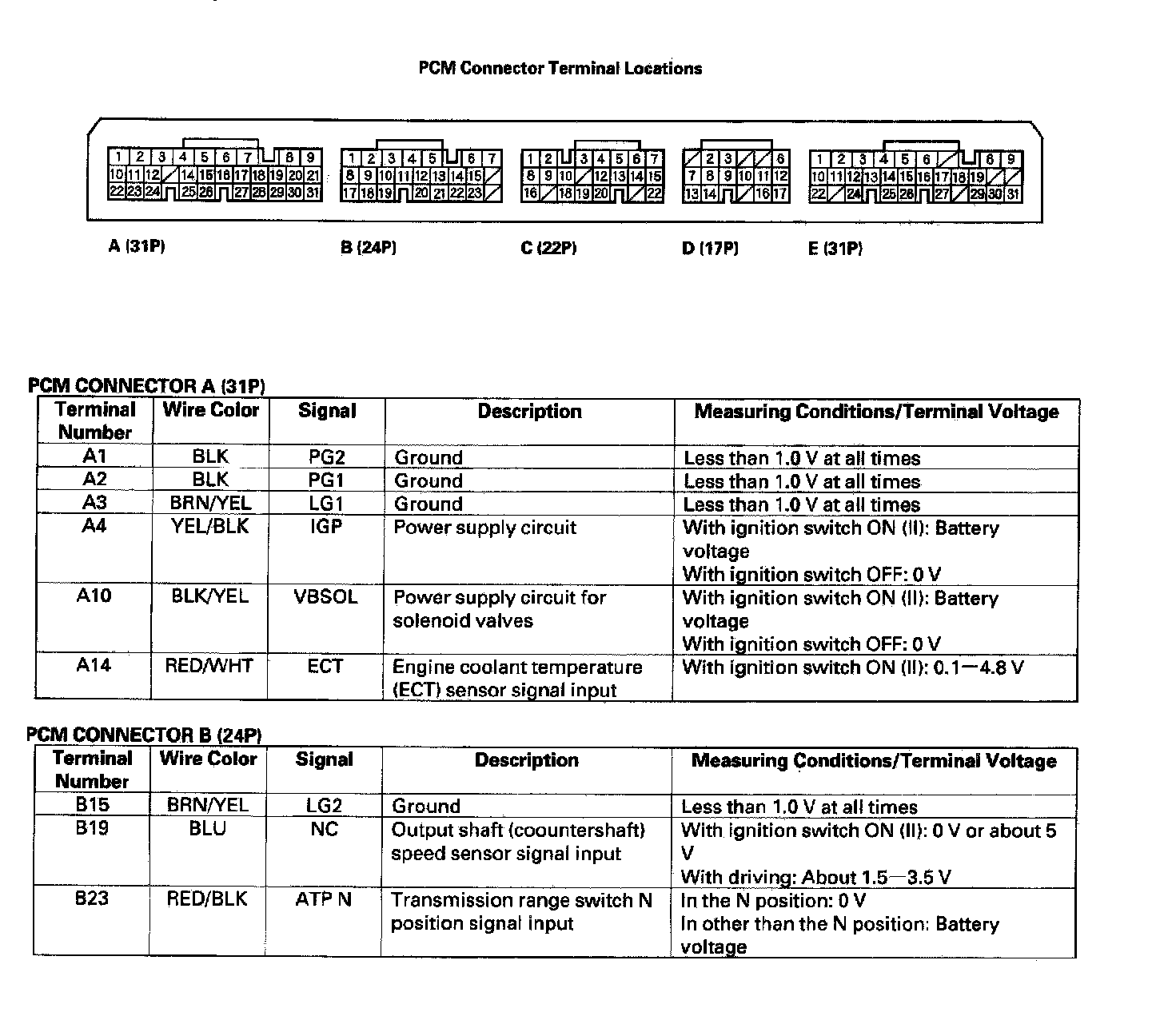

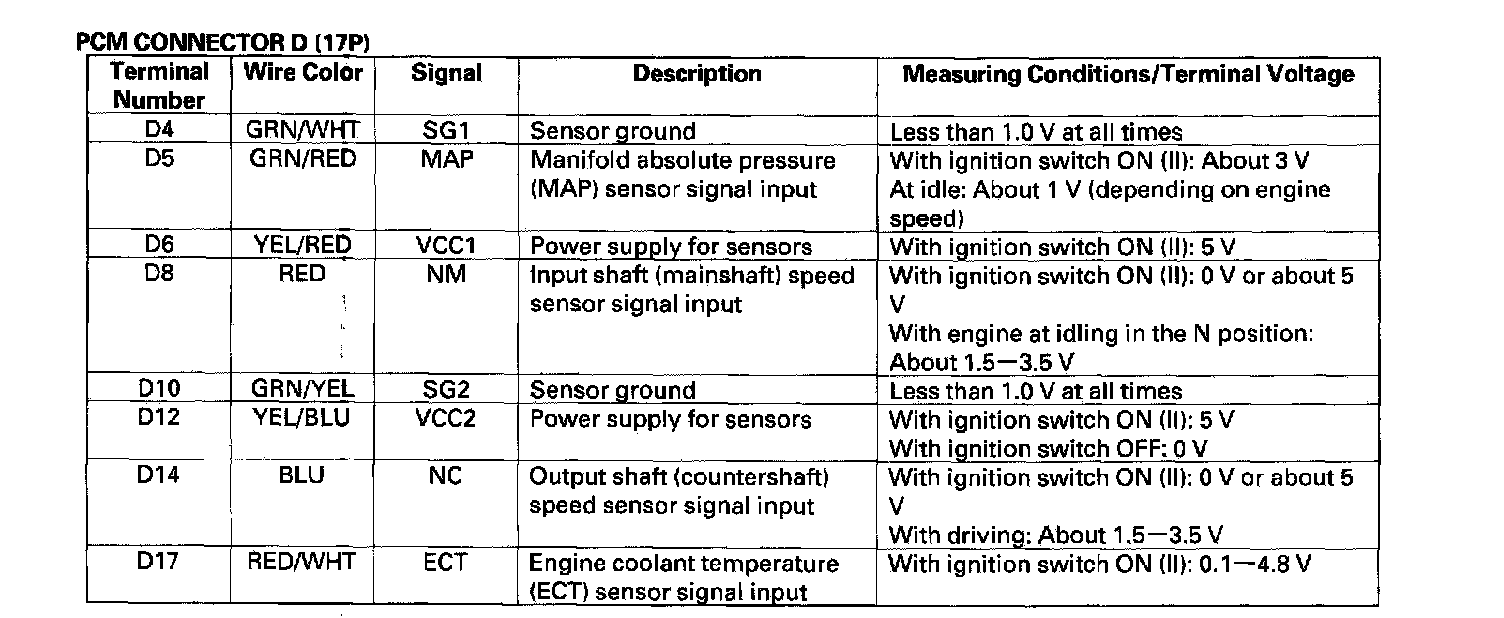

PCM Inputs and Outputs - 2006 Model:

PCM Inputs and Outputs - 2006 Model:

PCM Inputs and Outputs - 2006 Model:

PCM Inputs and Outputs - 2006 Model:

PCM Inputs and Outputs - 2006 Model
