Alignment

Wheel alignment

Camber
Front -0° 30' ± 30'
Rear -1° 00' ± 30'
(Maximum difference between the right and left side: 0° 45')

Caster
Front 3° 17' ± 45'
(Maximum difference between the right and left side: 0° 45')

Total Toe-in
Front 0 ± 2 mm (0 ± 1/16 inch)
Rear 0 ± 2 mm (0 ± 1/16 inch)

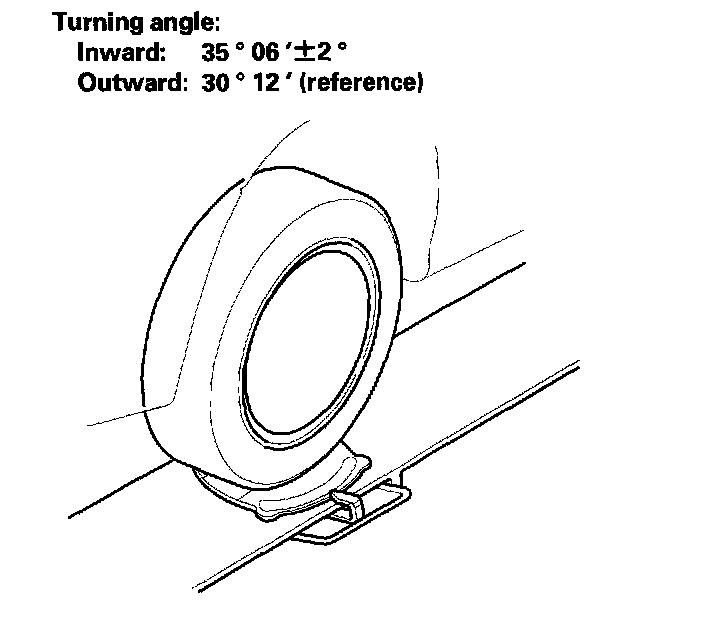

Front wheel turning angle
Inward 35° 06 ± 2°
Outward 30° 12'
(Reference)






Turning Angle
