Control Module: Service and Repair

How to Remove and Install the PCM
1. Jump the SCS line with the HDS.
2. Pullback the carpet.

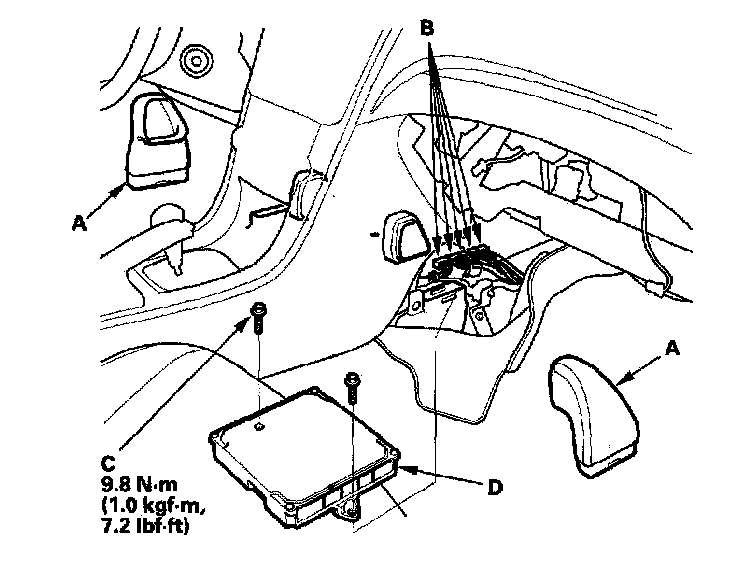

3. Remove the ducts (A).
4. Disconnect the PCM connectors (B).
5. Remove the bolts (C), then remove the PCM (D).
6. Install the PCM in the reverse order of removal.
7. Open the SCS line with the HDS.
