DTC P0706: Open in Transmission Range Switch Circuit: Notes

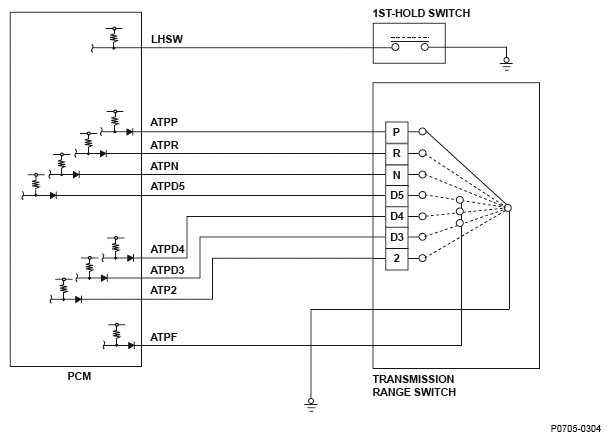

Fig 1: Transmission Range Switch Circuit Diagram

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	P	R	N	D5	D4	D3	2/1	LHSW	FWD
P	O	X	X	X	X	X	X	X	X
R	X	O	X	X	X	X	X	X	X
N	X	X	O	X	X	X	X	X	X
D5	X	X	X	O	X	X	X	X	O
D4	X	X	X	X	O	X	X	X	O
D3	X	X	X	X	X	O	X	X	O
2	X	X	X	X	X	X	O	X	X
1	X	X	X	X	X	X	O	O	X
O: Closed X: Open
