DTC P1743: Problem in Shift Control System; Shift Valve E Stuck OFF: Notes

Fig 1: Shift Control System Operation Diagram

Fig 2: Gear Position To Shift Status Graph

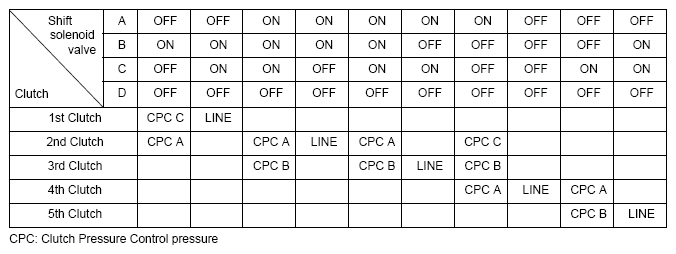

Hydraulic pressure supply to clutch by shift solenoid valve output (D position)

Fig 3: Hydraulic Pressure Supply To Clutch By Shift Solenoid Valve Output (D Position)
