DTC P1733: Problem in Shift Control System:
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P1733: Problem in Shift Control System:: Notes
Shift Solenoid Valve D Stuck ON
Shift Valve D Stuck
A/T Clutch Pressure Control Solenoid Valve C Stuck OFF
Fig 1: Problem In Shift Control System Circuit Diagram

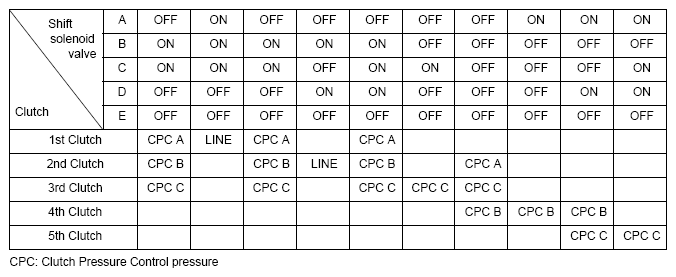

Fig 2: Hydraulic Pressure Supply To Clutch With Shift Solenoid Valve Output Chart
CPC: Clutch Pressure Control pressure
