DTC P0706: Open in Transmission Range Switch Circuit: Notes

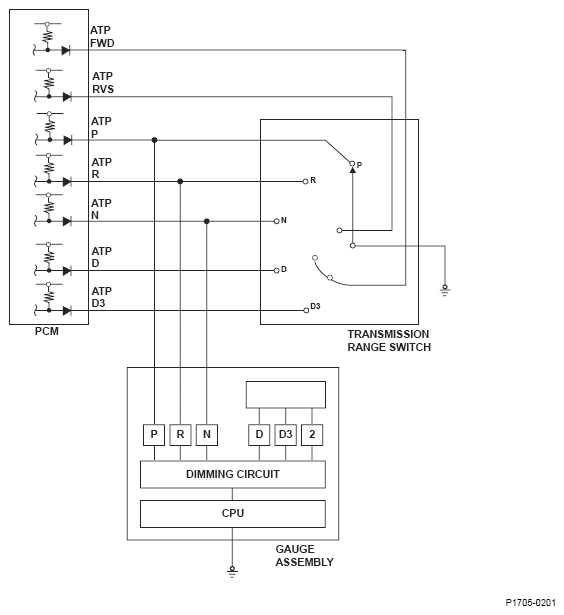

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX
| Shift lever position |
Input per switch |
| P |
R |
RVS |
N |
D |
D3 |
FWD |
| P |
O |
X |
X |
X |
X |
X |
X |
| R |
X |
O |
O |
X |
X |
X |
X |
| N |
X |
X |
X |
O |
X |
X |
X |
| D |
X |
X |
X |
X |
O |
X |
O |
| D3 |
X |
X |
X |
X |
X |
X |
O |
| O: Closed X: Open |
