Under-dash Fuse/Relay Box

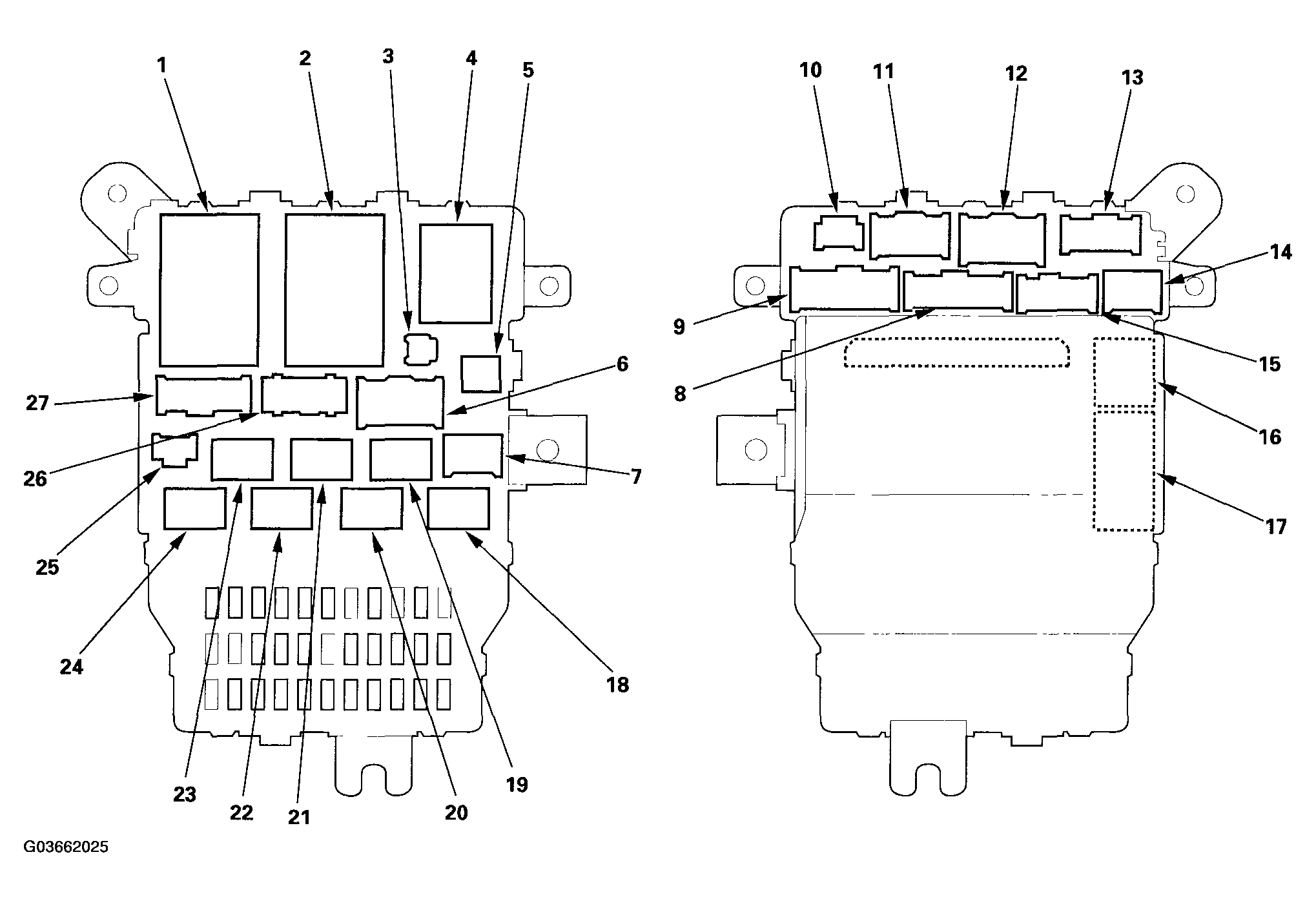

UNDER-DASH FUSE/RELAY BOX INDEX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 6 | 6 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Accessory power socket relay | 19 | 4 | |
| A/F sensor relay | 20 | 4 | |
| B | 12 | 6 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| C | 11 | 12 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| D | 13 | 17 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) ) |
| E | 8 | 16 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| F | 9 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| G | 14 | 6 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| H | 15 | 14 | Floor wire harness (see FLOOR WIRE HARNESS (LEFT BRANCH) ) |
| Ignition coil relay | 23 | 4 | |
| J | 27 | 21 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS A ) |
| K | 26 | 12 | Driver's door subharness (see DRIVER'S DOOR WIRE HARNESS A ) |
| M | 25 | 3 | MICS service check connector |
| N | 2 | 45 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| P (MICU) | 17 | 30 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| PGM-FI main relay 1 | 21 | 4 | |
| PGM-FI main relay 2 | 24 | 4 | |
| Power window relay | 22 | 4 | |
| Q (MICU) | 16 | 14 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Ft (MES connector) | 3 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| S | 5 | 2 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
| Starter cut relay | 18 | 4 | |
| T | 7 | 6 | Optional connector |
| Turn signal/hazard relay | 4 | 6 | |
| W | 10 | 5 | Roof wire harness (see ROOF WIRE HARNESS ) |
| X | 1 | 39 | Dashboard wire harness (see DASHBOARD WIRE HARNESS (LEFT BRANCH) ) |
