DTC P0685: Engine Control Module (ECM)/Powertrain Control Module (PCM) Internal Circuit Malfunction (Power Control Circuit): Notes

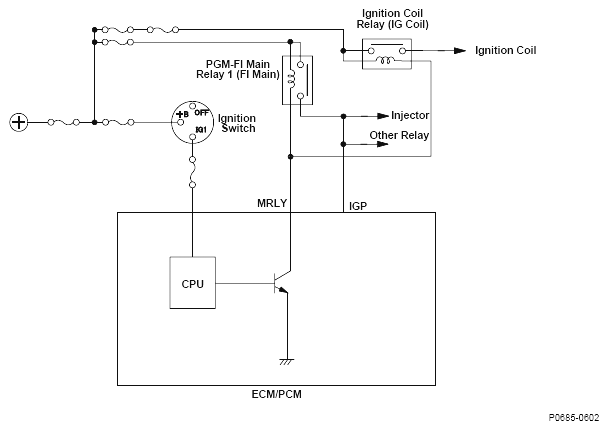

Fig 1: Engine Control Module/Powertrain Control Module Circuit Diagram
G04817032
