Without the HDS
- Turn the ignition switch ON (II).
- Move the driver's (passenger's) window all the way down by using the driver's (passenger's) window DOWN switch.

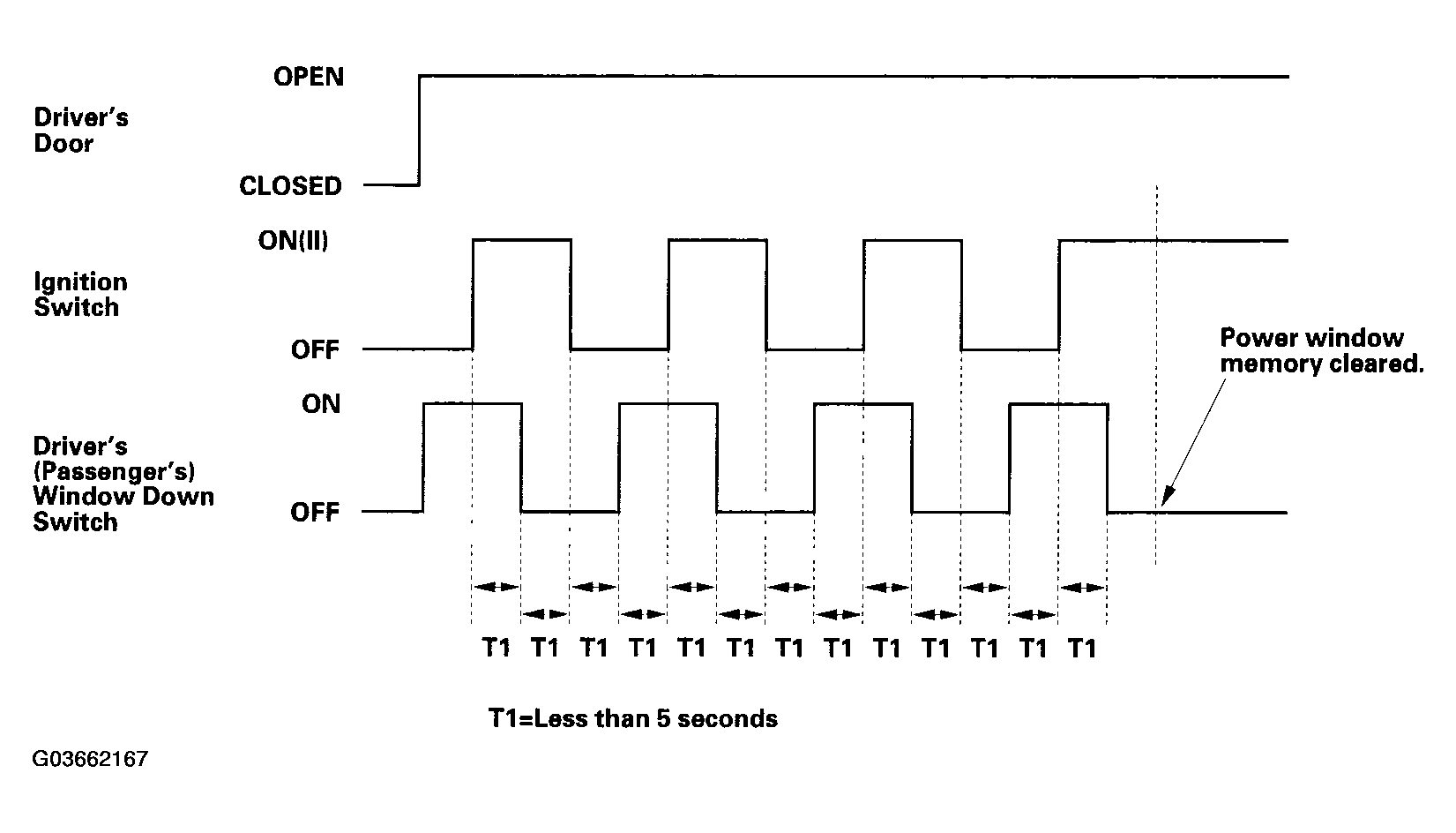

- Open the driver's (passenger's) door.NOTE: Steps 4-7 must be done within 5 seconds of each other.
- Turn the ignition switch OFF.
- Push and hold the driver's (passenger's) window DOWN switch.
- Turn the ignition switch ON (II).
- Release the driver's (passenger's) window DOWN switch.
- Repeat step 4-7 three more times.
- Wait 1 second.
- Confirm that AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go back to step 1.
- Move the driver's (passenger's) window all the way down by using the driver's (passenger's) window DOWN switch.
- Pull up and hold the driver's (passenger's) window UP switch until the window reaches the fully closed position, then continue to hold the switch for 1 second.
- Confirm that the power window control unit is reset by using the driver's (passenger's) window AUTO UP and AUTO DOWN function.
If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps. If it still does not work, go to B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
