DTC P0010: Variable Valve Timing Control (VTC) Oil Control Solenoid Valve Malfunction: Notes

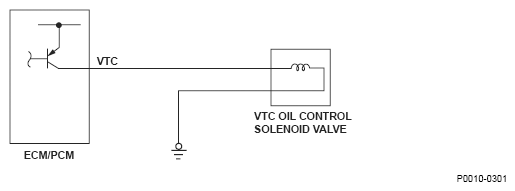

Fig 1: Oil Control Solenoid Valve Malfunction - Circuit Diagram
G04816760

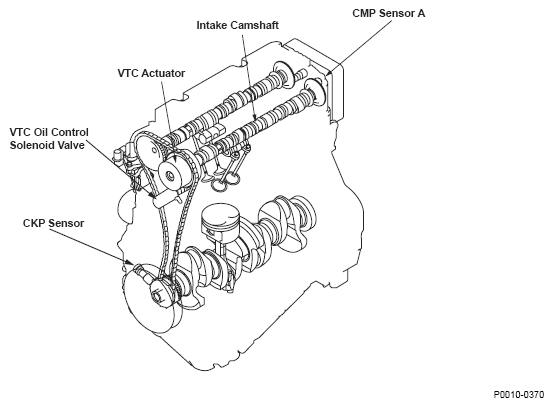

Fig 2: Identifying Oil Control Solenoid Valve And CKP Sensor
G04816761
