First drive cycle

The first time a leak is detected a CHECK FUEL CAP message is shown in the gauge display (A). To scroll to another message, press the select/reset button. The CHECK FUEL CAP message appears each time you restart the engine until the system turns the message off. Turn the engine off, then replace or tighten the fuel fill cap until it clicks at least once.

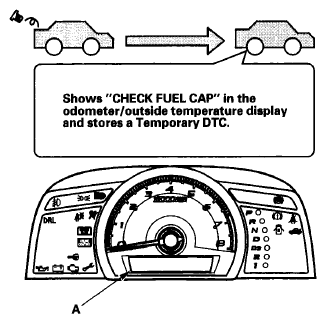

Fig 1: Identifying "CHECK FUEL CAP" In Odometer/Outside Temperature Display
