Engine Compartment

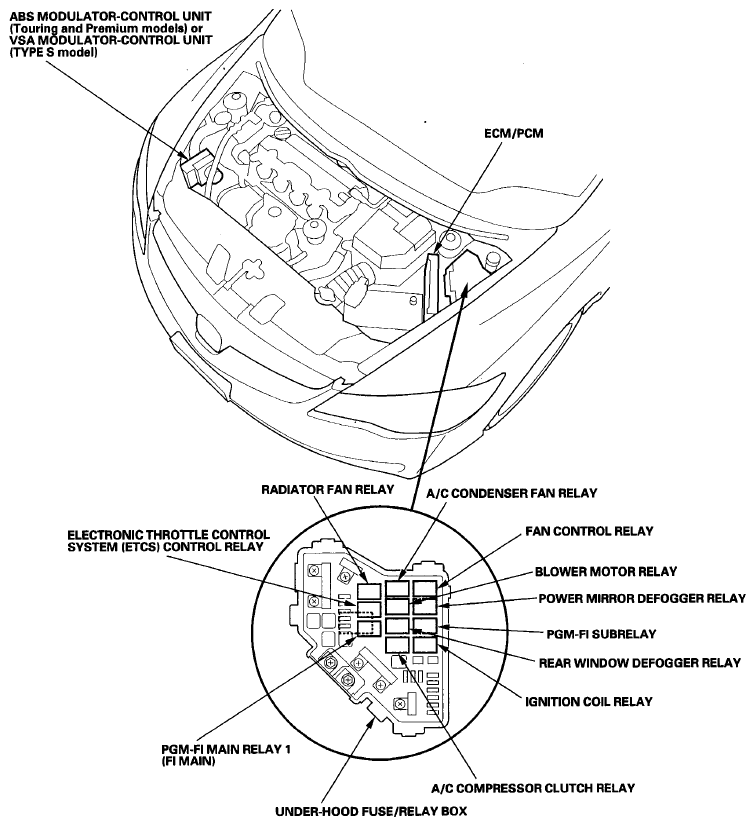

Fig 1: Identifying ECM/PCM And ABS Modulator-Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
