Front Passenger's Power Window Motor Test

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the front passenger's door wire harness 20P connector (A) from the front passenger's door subharness.

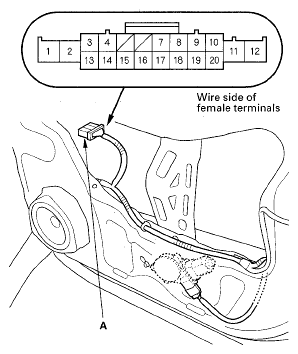

Fig 1: Identifying Front Passenger's Door Wire Harness 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
At the front passenger's door wire harness 20P connector, test the power window motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

Fig 2: Front Passenger's Power Window Motor Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Disconnect the 6P connector (A) from the front passenger's power window motor (B).

Fig 3: Identifying Front Passenger's Power Window Motor And 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the front passenger's power window motor 6P connector No. 1 and No. 4 terminals and the front passenger's door wire harness 20P connector No. 2 and No. 12 terminals respectively. There should be continuity.
- If there is no continuity, repair open in the wire.
- If there is continuity, replace the power window motor.

  Fig 4: Identifying Continuity Between Front Passenger's Power Window Motor 6P Connector Terminals 1 And 4
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
After replacing the power window motor, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
