Power Window Master Switch Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the 14P connector from the power window master switch.
  2. Remove the power window switch panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  3. Remove the four mounting screws and the power window master switch (A).

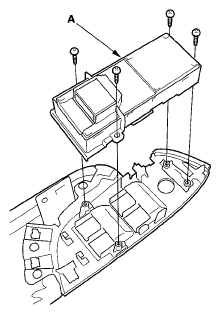

    Fig 1: Identifying Power Window Master Switch And Mounting Screws
    G05488065Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the switch in the reverse order of removal.
  5. Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT  ).
