Rear Power Window Motor Test

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the rear power window switch 14P connector (A).

Fig 1: Identifying Rear Power Window Switch 14P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the power window motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

Fig 2: Rear Power Window Motor Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Disconnect the 6P connector (A) from the rear power window motor (B).

Fig 3: Identifying Rear Power Window Motor And 6P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the rear power window motor 6P connector No. 1 [No. 3] and No. 4 [No. 6] terminals and the front rear power window switch 14P connector No. 1 and No. 7 terminals respectively. There should be continuity.
[ ] : Right rear power window
- If there is no continuity, repair open in the wire.
- If there is continuity, replace the power window motor.

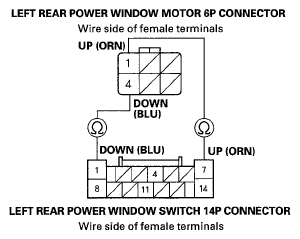

  Fig 4: Identifying Continuity Between Rear Power Window Motor And Front Rear Power Window Switch (Left)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

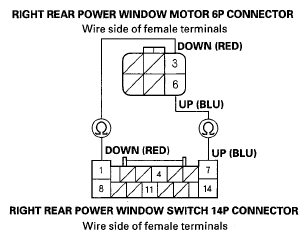

  Fig 5: Identifying Continuity Between Rear Power Window Motor And Front Rear Power Window Switch (Right)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
After replacing the power window motor, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
