Under-hood Fuse/Relay Box (Relay Control Module part)

UNDER-HOOD FUSE/RELAY BOX REFERENCE CHART

Socket	Ref	Terminal	Connects to
A	5	4	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
B	2	5	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
C	3	2	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
D	8	10	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
E	7	14	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
F	6	1	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
G	1	4	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )
H	4	9	Right engine compartment wire harness (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASH TO REAR OF ENGINE COMPARTMENT) )

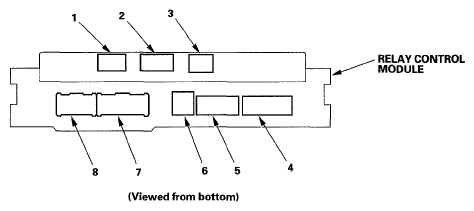

Fig 1: Identifying Under-Hood Fuse/Relay Box Connector Terminals (Relay Control Module Part)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
