Ignition Coil Removal/Installation

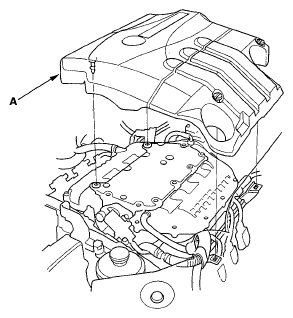

Remove the engine cover (A).

Fig 1: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ignition coil connector (A), then remove the ignition coils (B).

Fig 2: Ignition Coil Connector And Ignition Coils With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
