DTC P1659: Electronic Throttle Control System (ETCS) Control Relay OFF Malfunction: Notes

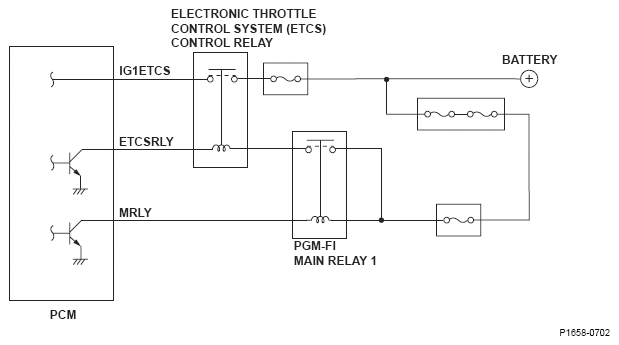

Fig 1: Electronic Throttle Control System (ETCS) Control Relay OFF - Circuit Diagram
G04836072
