Fuel Pressure Regulator Replacement

  1. Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION  ).
  2. Remove the reservoir (A).

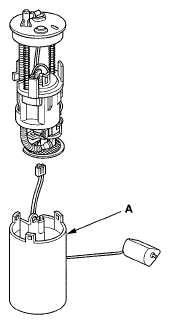

    Fig 1: Identifying Reservoir
    G05485282Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (A).
    Fig 2: Identifying Fuel Pressure Regulator, Clip And Bracket
    G05485283Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clip (B).
  5. Remove the fuel pressure regulator (C).
  6. Install the parts in the reverse order of removal with new O-rings (D).
    NOTE: Coat the O-rings with clean engine oil; do not use any other oils or fluids. Do not pinch the O-rings during installation.
