Fuel Tank Replacement
- Relieve the fuel pressure (see FUEL PRESSURE RELIEVING
).
- Drain the fuel tank (see FUEL TANK DRAINING
), then disconnect the fuel tank unit 4P connector and the quick-connect fittings from the fuel tank unit.
- Raise the vehicle on a lift.
- Remove the exhaust pipe (see
EXHAUST PIPE AND MUFFLER REPLACEMENT
).
- Remove the propeller shaft (see
PROPELLER SHAFT REMOVAL
), and support it with jackstands.

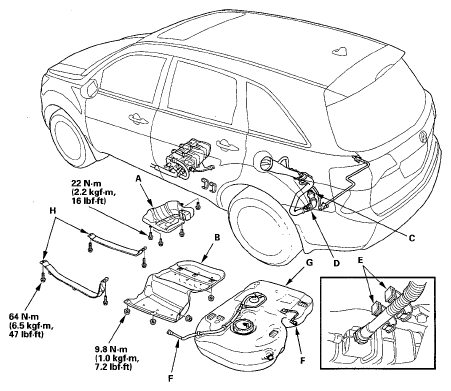

- Remove the fuel tank guard (A) and fuel tank protector (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Loosen the clamp (C), and disconnect the tube (D). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
- Open the clamps (E).
- Disconnect the hoses (F).
- Place a jack or other support under the fuel tank (G).
- Remove the strap bolts and the straps (H).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
