Ignition Coil Removal/Installation

  1. Remove the charge air cooler (see REMOVAL ).
  2. Remove the ignition coil cover (A), disconnect the ignition coil connectors (B), then remove the ignition coils (C).

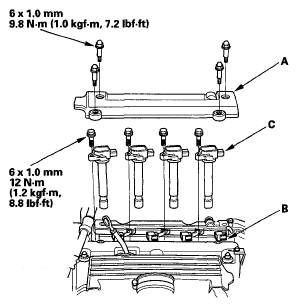

    Fig 1: Ignition Coil Cover, Ignition Coil Connectors And Ignition Coils With Torque Specifications
    G05444271Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the ignition coils in the reverse order of removal.
