Fuel Line Inspection

Check the fuel system lines and hoses for damage, leaks, and deterioration. Replace any damaged parts.

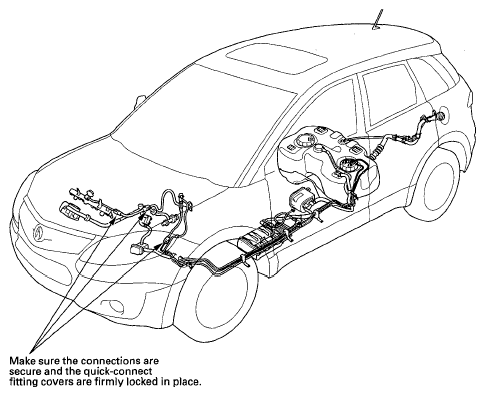

Fig 1: Identifying Fuel Line Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps, and retighten any if needed.

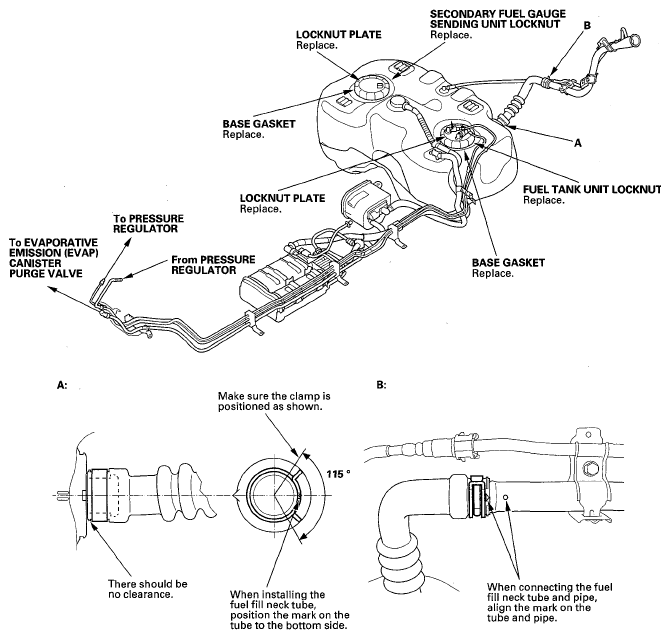

Fig 2: Identifying Fuel Filler Neck Tube Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
