Fuel Pressure Regulator Base Replacement

  1. Remove the fuel pressure regulator (see FUEL PRESSURE REGULATOR REPLACEMENT ).
  2. Remove the bolt (A) and nut (B), then remove the fuel pipe protector (C).

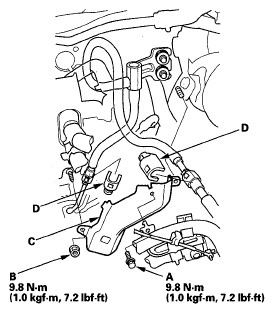

    Fig 1: Fuel Pipe Protector Bolt And Nut With Torque Specifications
    G05444755Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the quick-connect fitting covers (D).
  4. Disconnect the quick-connect fittings (A).

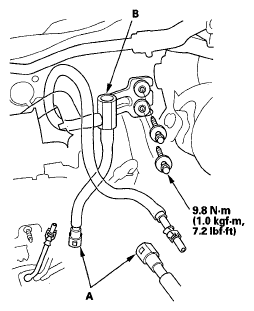

    Fig 2: Quick-Connect Fittings And Pressure Regulator Base With Torque Specifications
    G05444756Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the pressure regulator base (B).
  6. Reinstall the parts in the reverse order of removal.
