IAT Sensor 2 Replacement

  1. Remove the charge air cooler cover (see REMOVAL ).
  2. Disconnect the IAT sensor 2 connector (A).

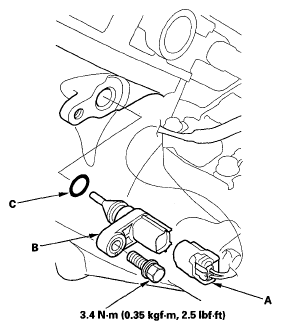

    Fig 1: Identifying IAT Sensor 2 And Connector
    G05444650Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the IAT sensor 2 (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
