PCM Replacement

Special Tools Required

• Honda diagnostic system (HDS) tablet tester
• Honda interface module (HIM) and an iN workstation with HDS and CM update software
• HDS pocket tester
• GNA-600 and an iN workstation with HDS and CM update software

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
   Fig 1: Identifying Data Link Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the PCM and other vehicles system. If it doesn't, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ). If you are returning from DLC circuit troubleshooting, skip steps 4 through 7,16 through 18, and 21 through 22, and do the following procedures after replacing the PCM (USA, Canada models);
   • Replace the engine oil (see ENGINE OIL REPLACEMENT ) and the engine oil filter (see ENGINE OIL FILTER REPLACEMENT ).
   • Clean the throttle body (see AIR CLEANER REMOVAL/INSTALLATION ).
4. USA, Canada models: Select the PGM-FI system with the HDS.
5. USA, Canada models: Select the INSPECTION MENU with the HDS.
6. USA, Canada models: Select the ETCS TEST, then select the TP POSITION CHECK, and follow the screen prompts.
   NOTE: If the TP POSITION CHECK indicates FAILED, continue with this procedure.
7. USA, Canada models: Select the REPLACE PCM MENU, then READ DATA and follow the screen prompts.
   NOTE:

   • Doing this step copies (READS) the engine oil life data from the original PCM so you can later download (WRITES) it into the new PCM.
   • If READ DATA indicates FAILED, continue with this procedure.
8. USA, Canada models: Select the A/T system with the HDS.
9. USA, Canada models: Select the REPLACE PCM MENU, then READ DATA and follow the screen prompts.
   NOTE:

   • Doing this step copies (READS) the engine oil life data from the original PCM so you can later download (WRITES) it into the new PCM.
   • If READ DATA indicates FAILED, continue with this procedure.
10. Turn the ignition switch OFF.
11. Jump the SCS line with the HDS.
12. Disconnect PCM connectors A, B, and C.
    NOTE: PCM connectors A, B, and C have symbols (A=□, B=Δ, C=◦) embossed on them for identification.

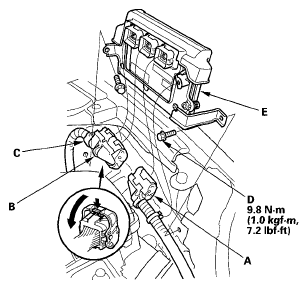

    Fig 2: Identifying PCM Connectors

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Remove the bolt (D), and remove the PCM assembly (E).
14. Remove the cover (A), and the bracket (B) from the PCM (C).
    Fig 3: Identifying PCM Assembly Cover And Bracket

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Install the parts in the reverse order of removal.
16. Turn the ignition switch ON (II).
17. Manually input the VIN to the PCM with the HDS.
    NOTE: DTC P0630 "VIN Not Programmed or Mismatch" may be stored because the VIN has not been programmed into the PCM; ignore it, and continue this procedure.
18. USA, Canada models: If the READ DATA (engine oil life) failed in step 7, go to step  21. Otherwise, go to step  19.
19. USA, Canada models: Select the PGM-FI system with the HDS.
20. USA, Canada models: Select the REPLACE PCM MENU, then WRITE DATA and follow the screen prompts.
    NOTE: If the WRITE DATA indicates FAILED, continue with this procedure.
21. USA, Canada models : If the READ DATA (ATF Life) failed in step 9 , go to step 24. Otherwise, go to step 22.
22. USA, Canada models: Select the A/T system with the HDS
23. USA, Canada models: Select the REPLACE TCM/ PCM MENU, then select WRITE DATA, and follow the screen prompts
24. Select IMMOBI system with the HDS.
25. Enter the immobilizer code with the PCM replacement procedure in the HDS; it allows you to start the engine.
26. USA, Canada models: If the TP POSITION CHECK failed in step 6, clean the throttle body (see THROTTLE BODY CLEANING ), then go to step 27.
27. USA, Canada models: If the READ DATA failed in step 7 or the WRITE DATA failed in step 18, replace the engine oil (see ENGINE OIL REPLACEMENT ) and engine oil filter (see ENGINE OIL FILTER REPLACEMENT ), then go to step  28.
28. Select PGM-FI system and reset the PCM with the HDS.
29. Update the PCM if it does not have the latest software (see PCM UPDATE ).
30. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
31. Do the CKP pattern learn procedure (see HDS CLEAR COMMAND ).
