Component Location Index

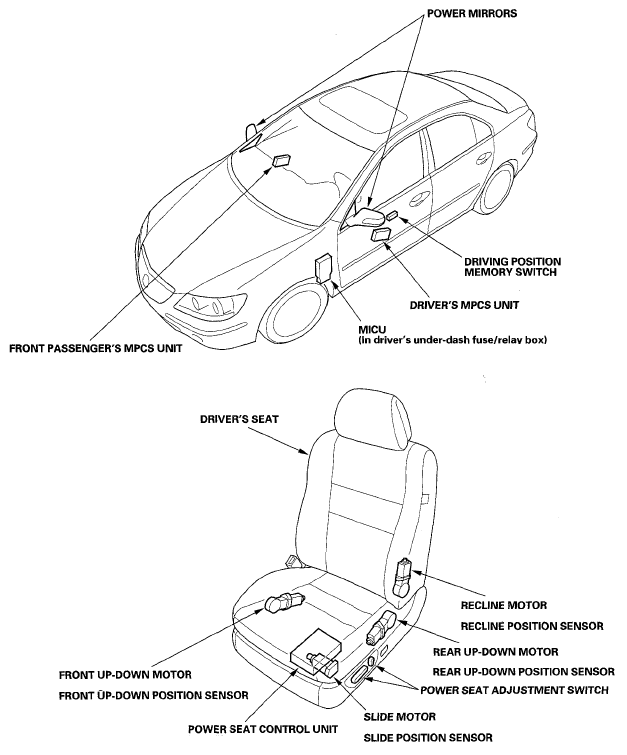

Fig 1: Identifying Location Of Driver Position Memory System (DPMS) Components (1 Of 2)
G05497244Courtesy of AMERICAN HONDA MOTOR CO., INC.

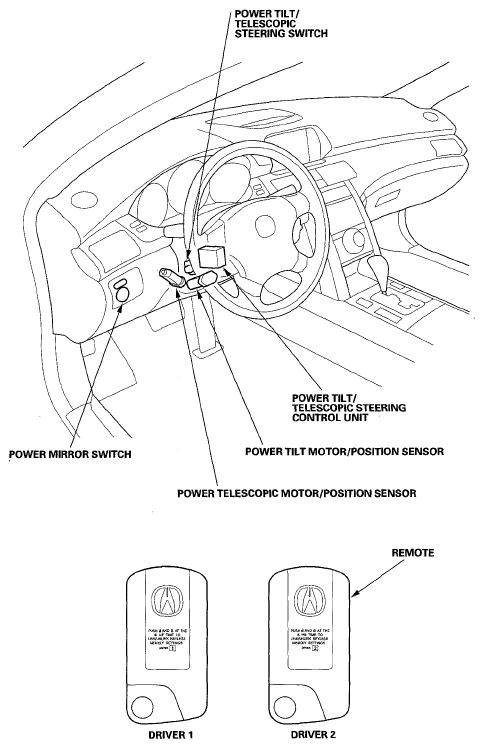

Fig 2: Identifying Location Of Driver Position Memory System (DPMS) Components (2 Of 2)
G05497245Courtesy of AMERICAN HONDA MOTOR CO., INC.
