Power Seat Adjustment Switch Test/Replacement

Remove the power seat adjustment switch knobs (A) and recline cover from the driver's power seat (see FRONT SEAT DISASSEMBLY/REASSEMBLY ), then remove the two screws and the power seat adjustment switch (B).

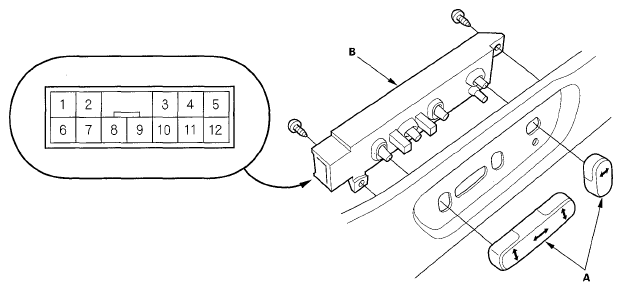

Fig 1: Identifying Power Seat Adjustment Switch Knobs And Power Seat Adjustment Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 12P connector from the power seat adjustment switch.
Reinstall the adjustment switch knobs to the switch.
Check for continuity between the terminals in each switch position as shown (see Fig 2).

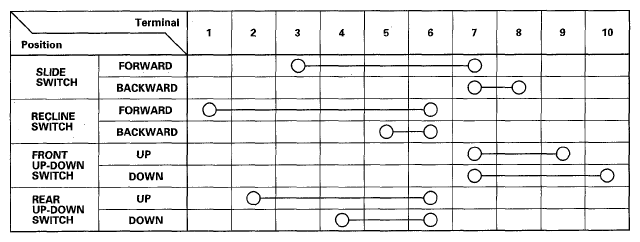

Fig 2: Checking Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
