Without the HDS
NOTE:
- Do each bulleted item in step 4 within 5 seconds of each other.
- The front passenger's power window must be reset from the front passenger's power window switch.
- Turn the ignition switch ON (II).
- Move the window all the way down by using the window DOWN switch.
- Open the driver's door.

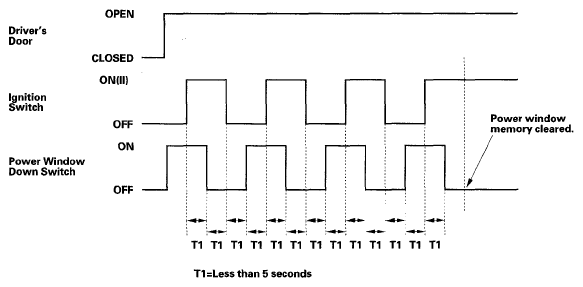

- Do the following 3 times before going to step 5:
- Turn the ignition switch OFF.
- Push and hold the window DOWN switch.
- Turn the ignition switch ON (II).
- Release the window DOWN switch.
- Confirm that AUTO UP no longer works. If AUTO UP still works, go back to step 1.
- Move the window ail the way down using the window DOWN switch.
- Pull up and hold the window UP switch until the window is all the way up, then continue to hold the switch for 1 second.
- Confirm that the power window control unit is reset by using the window AUTO UP and AUTO DOWN function.
If the window still does not work in AUTO, repeat the procedure several times, paying close attention to the 5 second time limit between steps. If it still does not work, go to B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
