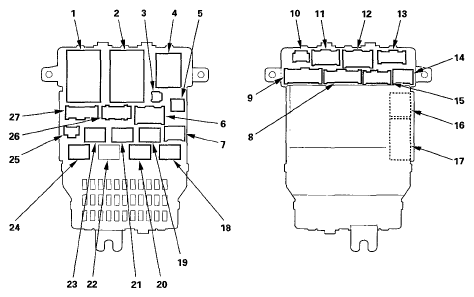

Driver's Under-dash Fuse/Relay Box
DRIVER'S UNDER-DASH FUSE/RELAY BOX REFERENCE
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 6 | 6 |
|
| Accessory power socket relay | 19 | 4 | |
| A/F sensor relay | 20 | 4 | |
| B | 12 | 6 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| C | 11 | 12 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| D | 13 | 17 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| E | 8 | 16 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| F | 9 | 14 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| G | 14 | 6 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| H | 15 | 14 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| Ignition coil relay | 23 | 4 | |
| J | 27 | 21 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| K | 26 | 12 | Driver's door subharness (see DRIVER'S DOOR SUBHARNESS ) |
| M | 25 | 3 | MICU service check connector |
| N | 2 | 45 | Dashboard wire harness A
|
| P (MICU) | 17 | 30 | Dashboard wire harness A
|
| PGM-FI main relay 1 (Fl MAIN) | 21 | 4 | |
| PGM-FI main relay 2 (FUEL PUMP) | 24 | 4 | |
| 22 | Not used | ||
| Q (MICU) | 16 | 14 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| R (MES connector) | 3 | 2 | Dashboard wire harness A
|
| S | 5 | 2 | Dashboard wire harness A
|
| Starter cut relay 2 | 18 | 4 | |
| T | 7 | 6 | Dashboard wire harness A
|
| Turn signal/hazard relay | 4 | 6 | |
| W | 10 | 5 | Left side wire harness (see LEFT SIDE WIRE HARNESS (FRONT BRANCH) ) |
| X | 1 | 39 | Dashboard wire harness A
|
