Drive Belt Replacement

Special Tools Required

Belt tension release tool Span-on YA9317 or equivalent, commercially available

1. Remove the right upper fender trim.
   Fig 1: Identifying Right Upper Fender Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the engine cover (see step 4 under REMOVAL ).
3. Move the auto-tensioner (A) using the belt tension release tool in the direction shown to relieve tension from the drive belt, then remove the drive belt.

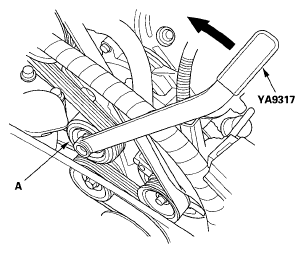

   Fig 2: Moving Auto-Tensioner Using Belt Tension Release Tool

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the new belt in the reverse order of removal.
   NOTE: For belt routing, see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING .
